16-ch 1.5U 16 PoE 8K Accsense NVR - Image 1
Click to enlarge

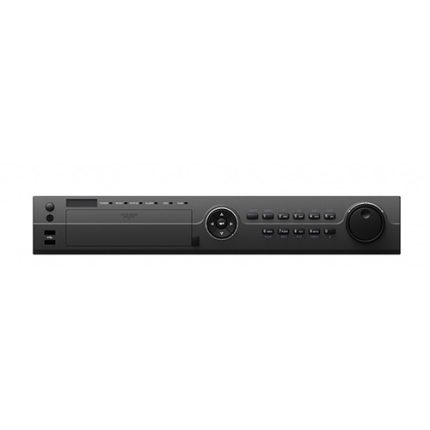

16-ch 1.5U 16 PoE 8K Accsense NVR

WINIC

Embedded 16ch 8K Plug&Play NVR

Add to wishlist
Add to compare
SKU: NR52P6-16 Categories: ,

H.265+/H.265/H.264+/H.264 video formats
Up to 16-ch IP camera inputs
Up to 16-ch@4 MP decoding capacity
Up to 256 Mbps incoming bandwidth
Up to 8-ch IP speakers can be connected
*Professional and Reliability
* H.265+ compression effectively reduces the storage space by up to 75%
* Dual-stream recording saves bandwidth
* Adopt stream over TLS encryption technology which provides more secure stream transmission service
* Support double verification for playback and downloading
*HD Video Output
* Provide independent HDMI and VGA outputs
* HDMI video output at up to 8K resolution
* Dual 4K HDMI output resolution
*Storage and Playback
* Up to 4 SATA interfaces for HDD connection
* 16-ch synchronous playback
*Smart ＆ POS Function
* Support multiple VCA (Video Content Analytics) events
* Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
people counting
* POS information overlay on live view and playback, and POS triggered recording and alarm
*Network ＆ Ethernet Access
* 16 independent PoE network interfaces
* 1 self-adaptive 10/100/1000 Mbps Ethernet interface
* Hik-Connect ＆ DDNS (Dynamic Domain Name System) for easy network management
* Smooth streaming technology
* Support web access without plug-in

Channel

16 Channel
IP Video Input

16-ch
Up to 32 MP resolution
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24
MP IP video inputs.
Incoming Bandwidth

256 Mbps
Outgoing Bandwidth

256 Mbps
HDMI 1 Output

8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 ×
1440)/60Hz, 1920 × 1080/60Hz
HDMI 2 Output

4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 ×
1080/60Hz
*: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is
1080p
VGA Output

1920 × 1080/60Hz
Video Output Mode

HDMI1/VGA simultaneous output, HDMI2/VGA independent output
CVBS Output

1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
Audio Output

1-ch, RCA (Linear, 1 KΩ)
Two-Way Audio

1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input)
Decoding Format

H.265+/H.265/H.264+/H.264
Recording Resolution

32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA
/4CIF/DCIF/ 2CIF/CIF/QCIF
*: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24
MP IP video inputs.
Synchronous Playback

16-ch
Decoding Capability

2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30
fps)/40-ch@1080p (30 fps)
eSATA

1 eSATA interface
SATA

4 SATA interfaces
Capacity

Up to 16 TB capacity for each disk
Serial Interface

2 RS-485 (half-duplex), 1 RS-232
USB Interface

Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0
Alarm In/Out

16/9
Power Supply

100 to 240 VAC, 50 to 60 Hz
Working Temperature

-10 °C to 55 °C (14 °F to 131 °F)
Chassis

19-inch rack-mounted 1.5U chassis
Dimension

(W × D × H) 440 × 389 × 72 mm ( 17.3"× 15.3" × 2.8")
Weight

≤ 5 kg (without HDD, 11 lb.)
