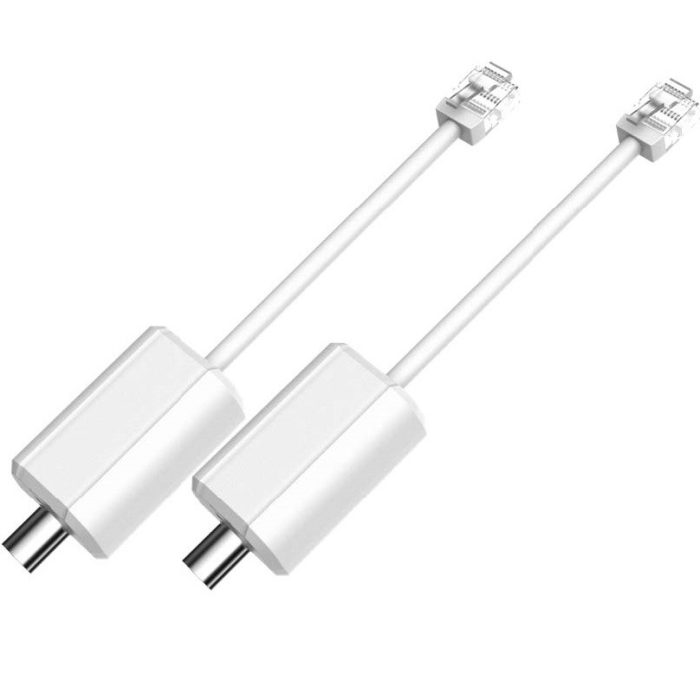

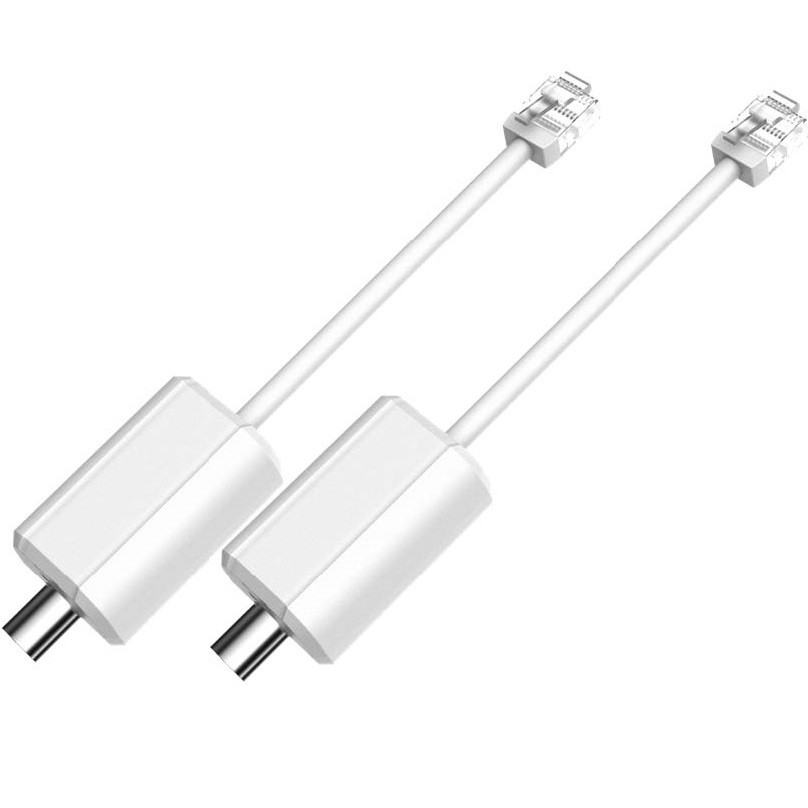

EOC-102 ePOE Camera Over Coaxial Cable Passive Converter

Product Overview

The EOC-102 ePOE Passive Converter enables seamless power and data transmission over existing coaxial or Ethernet cabling. It is a key component of the BLUE|LINE ePoE system, allowing long-distance connectivity without the need for repeaters or additional switches. By converting signals between CAT5E/CAT6 and coaxial cable, the EOC-102 supports both pure IP systems and hybrid IP/analog networks, enabling installers to leverage existing coaxial infrastructure while extending transmission distances up to 1000 m (3280 ft). This makes it an ideal solution for upgrading legacy analog systems to modern high-definition IP surveillance.

Key Features

• Enhanced ePoE Technology: Transmits power and data over long distances without repeaters
• Flexible Conversion: Converts between CAT5E/CAT6 and coaxial cable for IP/analog hybrid systems
• Long-Distance Support: Up to 1000 m (3280 ft) via coaxial cable, 800 m (2624 ft) via Ethernet
• Plug-and-Play Operation: MDI/MDX self-adaptive, no configuration needed
• Cost-Effective Installation: Reduces cabling requirements and eliminates extra network devices
• Hybrid Compatibility: Works simultaneously with IP networks, long-distance ePoE networks, and coaxial networks

Key Specifications

• Transmission Distance: Up to 1000 m over RG59 coaxial, 800 m over CAT5E/CAT6
• Standards Compliance: IEEE802.3, IEEE802.3u
• Power over Ethernet: Supports ePoE for high-definition IP cameras
• Network Adaptation: MDI/MDX auto-sensing
• Protocol: Ethernet over Coaxial (EoC) for hybrid IP/analog integration
