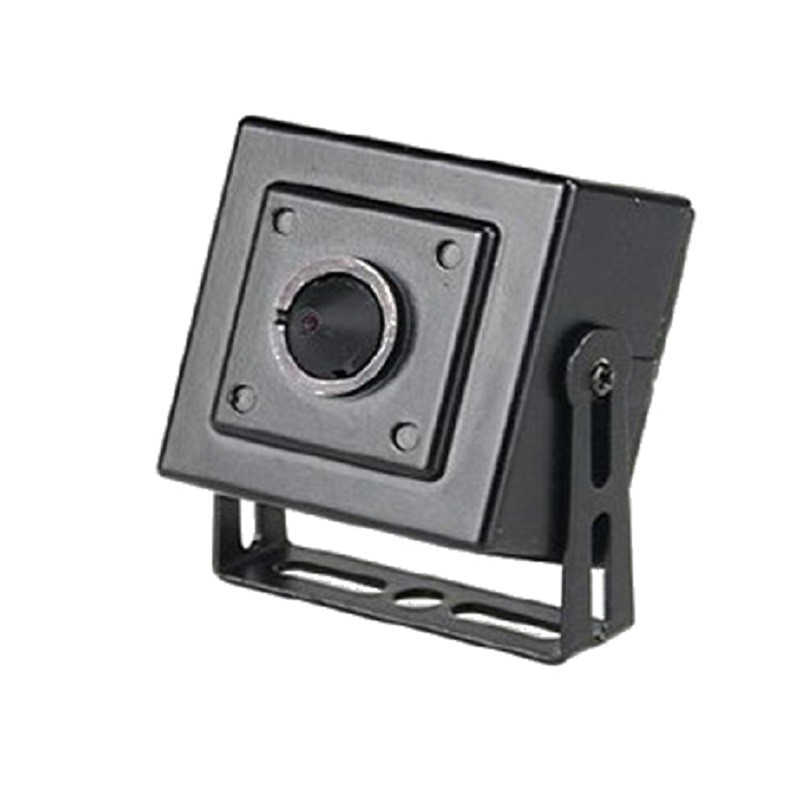

HDC-PH/2M-3.7 2.4 Megapixel 1080P HD 4 In 1 Pin-Hole Camera

Product Overview

The HDC-PH/2M-3.7 is a 2.4MP pin-hole camera offering high-definition 1080P video at 25/30fps. Equipped with a 1/2.8″ CMOS sensor, it captures sharp and detailed footage in various lighting conditions. This mini camera supports multiple video outputs—AHD, CVI, TVI, and analog—ensuring compatibility with existing surveillance systems. The 3.7mm fixed lens provides long-distance monitoring without delay, while ICR auto-switch allows continuous day and night operation. Low-light performance is enhanced with IR support for 0 Lux visibility. An OSD menu enables easy configuration on-site, and internal synchronization maintains stable video streams. Powered by 12V DC with 100mA consumption, it delivers reliable and efficient monitoring for any space.

Key Features

• Discreet High-Definition Imaging: Captures clear 1080P video in a compact pin-hole design
• Multi-Format Support: Compatible with AHD, CVI, TVI, and analog outputs
• Day/Night Monitoring: ICR auto-switch ensures consistent footage under all lighting
• Enhanced Low-Light Performance: 0 Lux IR capability for clear night vision
• Long-Distance Coverage: 3.7mm fixed lens delivers extended surveillance range
• OSD Menu Control: Quick on-site adjustments for image and system settings
• Efficient Power Operation: 12V DC supply with low 100mA consumption

Key Specifications

• Image Sensor: 1/2.8″ 2.4 Megapixel CMOS
• Resolution & Frame Rate: 1920×1080 at 25/30fps
• Lens: 3.7mm fixed lens
• Minimum Illumination: 0.01 Lux @ F1.2, 0 Lux with IR
• Power Supply: 12V DC, 100mA typical consumption
