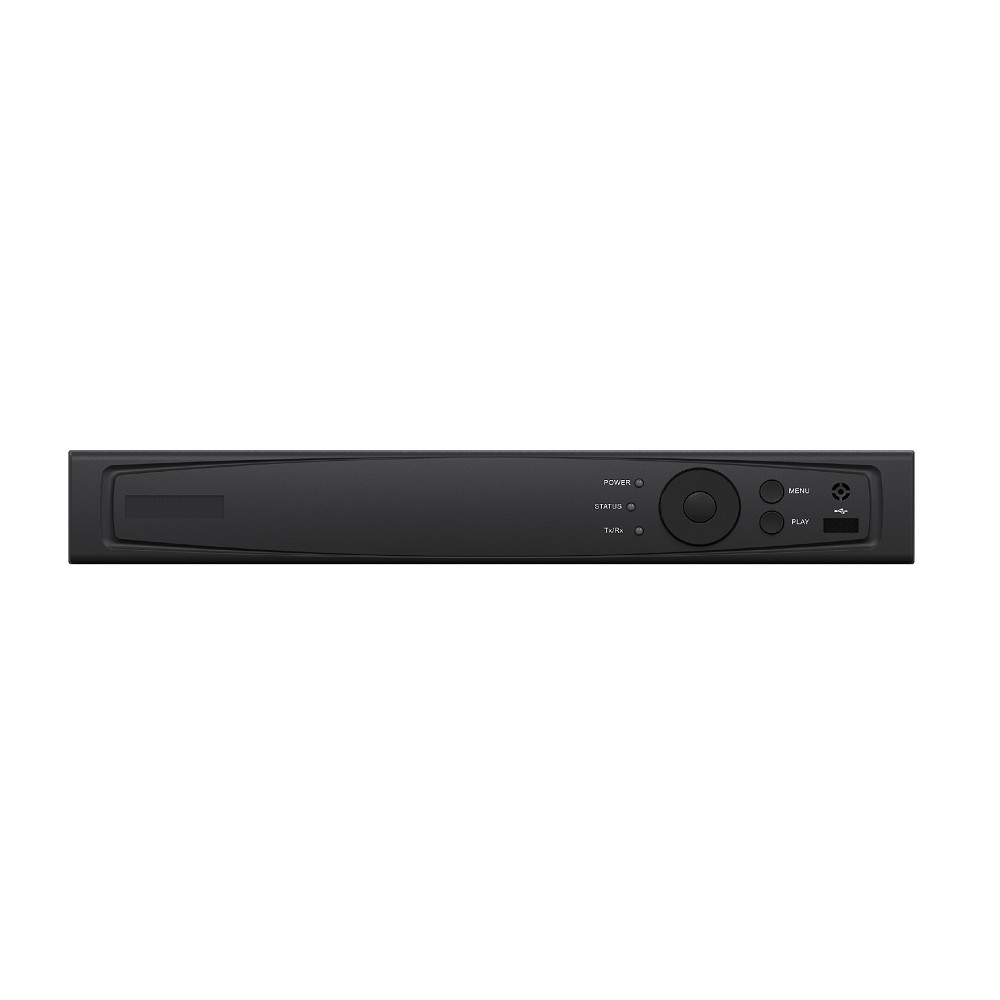

HR315-8 8 Channel 3MP 1U 2HDD TVI Tribrid DVR

Product Overview

The HR315-8 is a versatile 1U TVI Tribrid DVR designed for small to mid-sized surveillance deployments. It supports HD-TVI, AHD, analog, and ONVIF-compliant IP cameras with flexible integration. Full-channel 3MP recording provides detailed video, while H.264+ compression improves storage efficiency. Video output includes HDMI/VGA at 1080P with auxiliary CVBS for compatibility. With one or two SATA HDD bays (up to 6 TB each), the device ensures secure and scalable storage. Smart VCA analytics and VQD enhance monitoring accuracy, and cloud P2P and SIMPLEDDNS support simplify network management.Key Features

Video Input and Transmission

• Connectable to HD-TVI, AHD, network and analog cameras
• Up to 8-ch 8MP ONVIF conformant IP cameras input
• Long distance transmission over twisted-pair cable & coax cable

Compression and Recording

• H.264+ compression improves encoding efficiency by up to 50% and reduces data storage costs
• Full channel recording at up to 3MP resolution

Video Output

• HDMI/VGA output at up to 1080p resolution
• CVBS output improves compatibility at the most possibility

Storage and Playback

• One or two SATA interfaces (up to 6TB of capacity per HDD)
• 8ch synchronous playback at up to 3MP resolution
• Smart search for efficient playback
• Supports the 3rd party cloud storage (Dropbox/Google Drive/Microsoft OneDrive)

Smart Function

• Supports multiple VCA (Video Content Analytics) events for both analog and smart IP cameras
• VQD (Video Quality Diagnostics)

Network & Ethernet Access

• Cloud P2P &SIMPLEDDNS (Dynamic Domain Name System) for easy network management
• Gigabit Ethernet network interface
