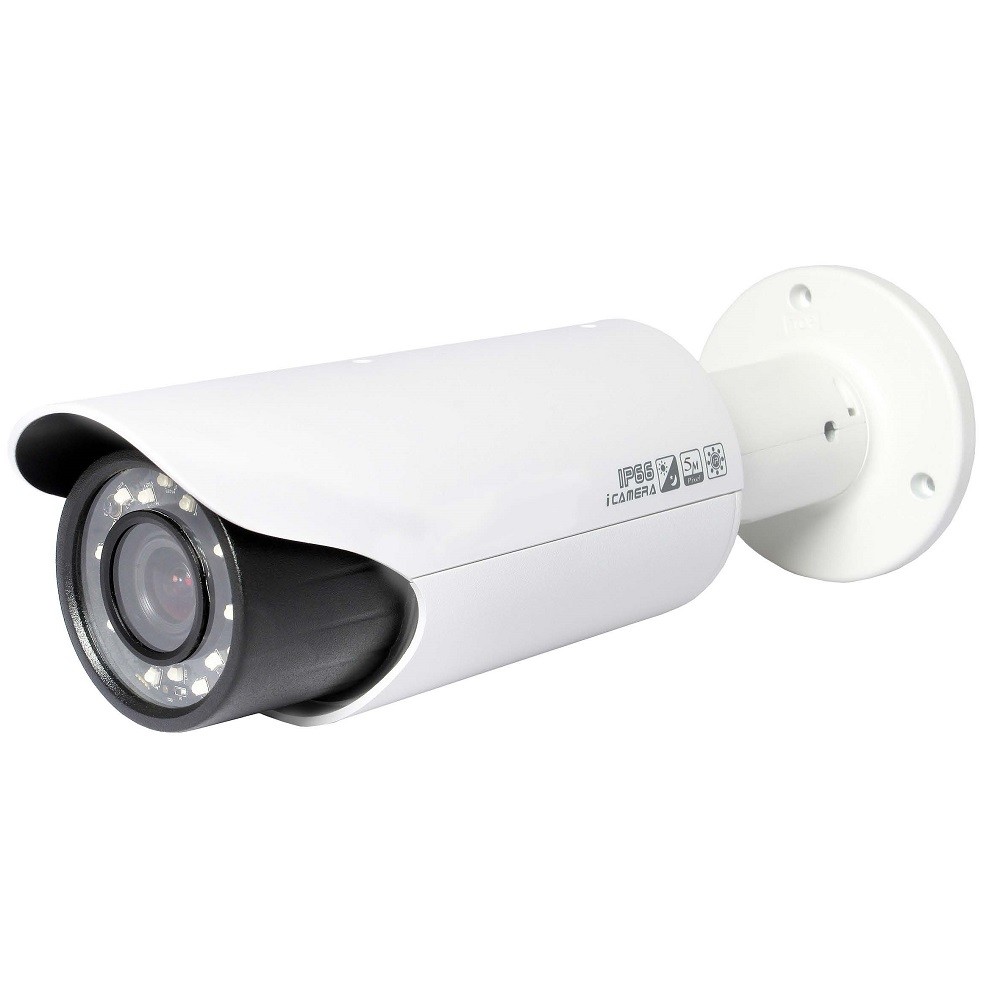

IPC-BU550C-IR-Z 5 MP Full HD Network Motorized IR-Bullet Camera

Product Overview

The IPC-BU550C-IR-Z is a 5 MP bullet network camera engineered for high-definition, intelligent surveillance. Its 1/2.5″ progressive CMOS sensor delivers a maximum resolution of 2560 × 1920, while supporting multiple streaming modes to meet different monitoring requirements. The motorized 4–9 mm vari-focal lens allows precise adjustment of viewing angles for both wide-area and focused monitoring. Integrated IR LEDs provide night visibility up to 30 meters, and advanced image enhancements including DWDR, 3DNR, BLC, and Auto Iris ensure sharp, balanced images in varying lighting conditions. The camera supports dual-stream H.264 & MJPEG for efficient bandwidth usage, and is compatible with ONVIF, PSIA, and CGI protocols. With Micro SD card support, PoE capabilities, and IP66-rated construction, it is suitable for both indoor and outdoor installations. Alarm input/output and privacy masking further enhance security management.

Key Features

• High-Definition Imaging: 5 MP resolution delivers detailed video across broad areas.
• Motorized Vari-Focal Lens: 4–9 mm lens allows precise field-of-view adjustment remotely.
• Night Vision: IR LEDs illuminate up to 30 meters for reliable low-light performance.
• Advanced Video Enhancement: DWDR, 3DNR, BLC, and Auto Iris for clear, balanced images.
• Dual-Stream Support: H.264 & MJPEG optimize network bandwidth and storage.
• Flexible Integration: Compatible with ONVIF, PSIA, CGI protocols and multiple monitoring platforms.
• Robust Outdoor Design: IP66-rated housing withstands harsh weather conditions.

Key Specifications

• Image Sensor: 1/2.5″ 5 MP progressive CMOS
• Resolution: 2560 × 1920 / 1080P / 720P / D1 / CIF
• Lens: 4–9 mm motorized vari-focal, Auto Focus
• IR Distance: Up to 30 meters
• Power Supply: 12 V DC (AC24V optional), PoE (802.3af)
