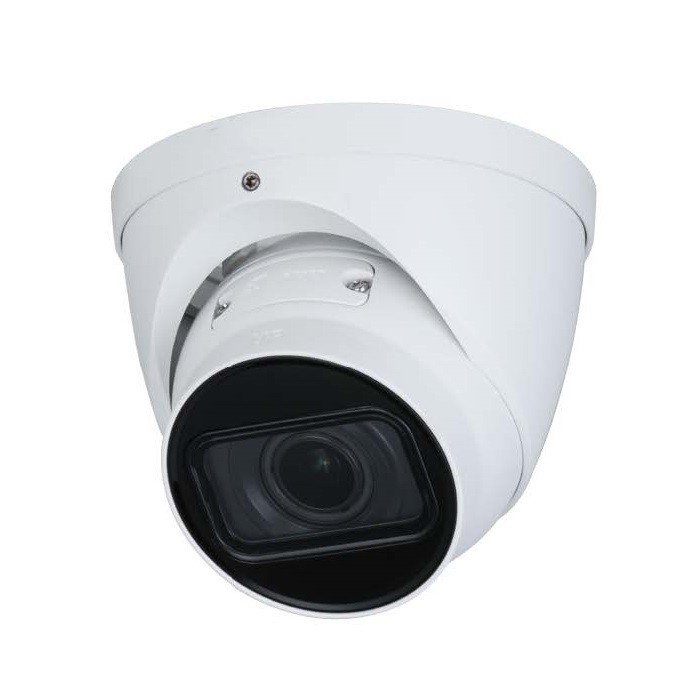

IPC-EB244T-IR-ZS 4MP WDR IR Motorized Eyeball Network Camera

Product Overview

The IPC-EB244T-IR-ZS is a 4 MP motorized eyeball network camera designed for professional surveillance. It captures ultra-clear images with a 1/3″ CMOS sensor and progressive scanning at up to 2688 × 1520 @ 20 fps. The motorized lens offers 2.7–13.5 mm focal length for convenient remote zoom and focus adjustments. Built-in IR LEDs extend night vision up to 40 m, ensuring reliable low-light performance. The camera supports intelligent monitoring features including intrusion and tripwire detection. WDR, 3D DNR, HLC, and BLC enhance image clarity under challenging lighting conditions. ROI and SMART H.264/H.265 encoding adapt to varying bandwidth and storage scenarios. IP67-rated housing ensures durable outdoor performance, while rotation mode allows flexible installation angles.

Key Features

• Motorized Zoom Lens: Remote adjustment from 2.7–13.5 mm for flexible monitoring.
• Dual Stream Compression: H.265 reduces bandwidth and storage usage efficiently.
• Intelligent Detection: Intrusion and tripwire support accurate human/vehicle alerts.
• Enhanced Imaging: WDR, 3D DNR, HLC, BLC, and digital watermarking optimize clarity.
• Night Vision: IR LEDs with up to 40 m range for full nighttime visibility.
• Flexible Deployment: ROI and rotation mode accommodate diverse installation scenarios.
• Durable Outdoor Housing: IP67-rated metal casing for reliable all-weather operation.

Key Specifications

• Sensor: 1/3″ 4 MP progressive CMOS
• Resolution & Frame Rate: 2688 × 1520 @ 20 fps; 2560 × 1440 @ 25/30 fps
• Lens: 2.7–13.5 mm motorized lens, Φ14 mount
• IR Distance: Up to 40 m, auto adjustable
• Advanced Features: WDR, 3D DNR, HLC, BLC, digital watermarking, ROI, intelligent detection
