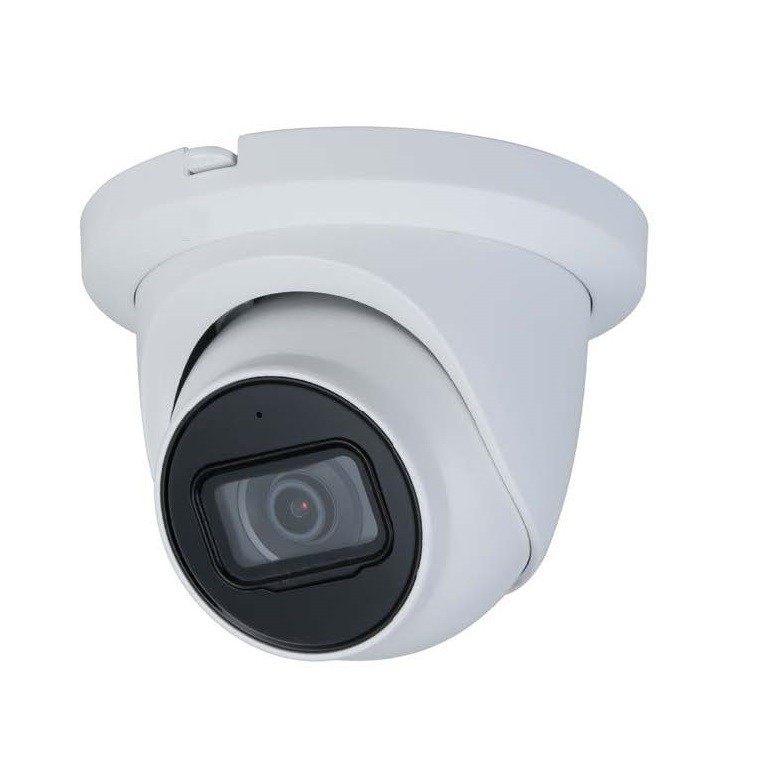

IPC-EB244TM-IR 4MP WDR IR Fixed Eyeball Network Camera built-in Mic

Product Overview

The IPC-EB244TM-IR is a 4 MP fixed-focal eyeball camera engineered for professional surveillance. Equipped with a 1/3″ CMOS sensor, it delivers sharp, high-quality images at resolutions up to 2688 × 1520. The built-in IR LEDs enable clear night vision up to 30 m, while the integrated microphone captures audio for comprehensive monitoring. The camera supports intelligent monitoring, including intrusion and tripwire detection, and can identify abnormal events such as motion, video tampering, and network issues. Its imaging capabilities are enhanced with WDR (120 dB), 3D DNR, HLC, BLC, and digital watermarking for improved clarity in challenging conditions. ROI and SMART H.264/H.265 encoding adapt video streams to varying bandwidths and storage capacities. The IP67-rated metal housing ensures reliable performance in outdoor environments.

Key Features

• High-Definition Video: 4 MP progressive CMOS sensor captures detailed imagery.
• Built-in Audio: Microphone enables audio monitoring alongside video surveillance.
• Night Vision: IR LEDs provide up to 30 m of visibility in low-light conditions.
• Smart Detection: Intrusion and tripwire functionality with accurate event alerts.
• Advanced Imaging: WDR, 3D DNR, HLC, BLC, and digital watermarking enhance clarity.
• Flexible Compression: H.265 reduces storage and network bandwidth usage.
• Robust Design: IP67-rated metal casing ensures durability in harsh environments.

Key Specifications

• Sensor: 1/3″ 4 MP progressive CMOS
• Resolution & Frame Rate: 2688 × 1520 @ 20 fps; 2560 × 1440 @ 25/30 fps
• Lens: 3.6 mm fixed lens, M12 mount
• IR Distance: Up to 30 m, auto-adjustable
• Advanced Features: WDR (120 dB), 3D DNR, HLC, BLC, digital watermarking, intelligent detection
