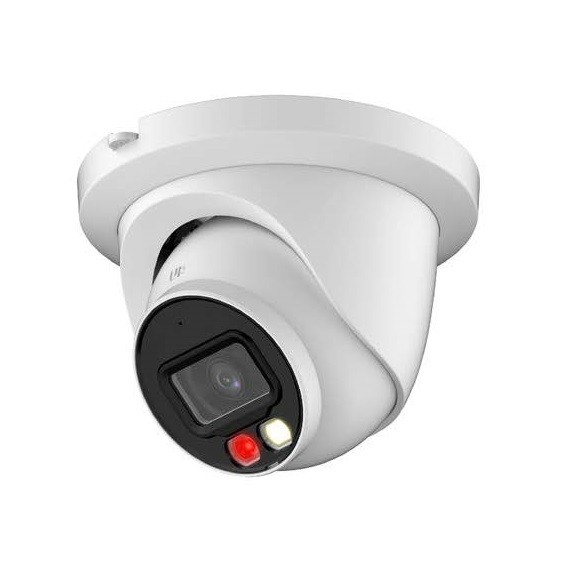

IPC-EB2849TM-ILM 8 MP Smart Dual Illumination Fixed-focal Eyeball WizSense Network Camera
8MP Smart Dual Illumination Fixed-focal Eyeball WizSense Network Camera
- 8-MP 1/2.7″ CMOS image sensor, low luminance, and high definition image.
- Outputs max. 8 MP (3840 × 2160) @20 fps, and supports 2688 × 1520 @25/30 fps.
- H.265 codec, high compression rate, ultra-low bit rate.
- Built-in warm light and IR LED, the max. illumination distance is 30 m and the max. warm light distance is 30 m.
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments.
- Rotation mode, WDR, 3D NR, HLC, BLC, digital watermarking, applicable to various monitoring scenes.
- Intelligent monitoring: Intrusion, tripwire (the two functions support the classification and accurate detection of vehicle and human).
- Abnormality detection: Motion detection, video tampering, audio detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, and voltage detection.
- Supports max. 256 G Micro SD card, built-in MIC.
Description
Product Overview
The IPC-EB2849TM-ILM is an 8 MP fixed-focal eyeball camera designed for professional WizSense surveillance. Its 1/2.7″ CMOS sensor delivers crystal-clear imagery with ultra-low light performance. Equipped with both IR and warm light LEDs, it provides clear monitoring up to 30 m in all lighting conditions. Intelligent monitoring includes intrusion and tripwire detection with accurate human and vehicle classification. The camera also detects abnormal events such as motion, video tampering, and network anomalies. Enhanced image processing features, including WDR (120 dB), 3D DNR, HLC, BLC, and digital watermarking, ensure consistent video quality. ROI and SMART H.264+/H.265+ encoding allow flexible bandwidth and storage management. An IP67-rated design makes it suitable for challenging outdoor environments.
Key Features
- Ultra HD 8 MP Imaging: Capture every detail with 8 MP high-resolution video, ensuring professional-grade monitoring and crystal-clear evidence.
- Dual Illumination Technology: Built-in IR and warm light LEDs deliver reliable night vision and full-color images up to 30 m in low-light conditions.
- AI-Powered Smart Detection: Deep learning algorithms accurately identify humans and vehicles for intrusion and tripwire events, reducing false alarms.
- Built-in Audio Capture: Integrated microphone records synchronized audio for enhanced security and situational awareness.
- Advanced Image Enhancement: WDR (120 dB), 3D DNR, HLC, BLC, and digital watermarking optimize image quality in challenging lighting environments.
- Weatherproof & Durable: IP67-rated construction and corrosion-resistant materials ensure dependable performance outdoors.
- Efficient Video Compression: H.265+ encoding saves storage and bandwidth without compromising image clarity.
Key Specifications
- Sensor: 1/2.7″ 8 MP CMOS
- Resolution & Frame Rate: 3840 × 2160 @ 20 fps; 2688 × 1520 @ 25/30 fps
- Lens: 2.8 mm fixed lens, M12 mount, F1.6 aperture
- Illumination: IR and warm light up to 30 m
- Advanced Features: WDR (120 dB), 3D DNR, HLC, BLC, digital watermarking, smart detection
Additional information
| Image Sensor |
1/2.7" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Max. Resolution |
3840 × 2160 |
| ROM/RAM |
128 MB/256 MB |
| Camera Style | |
| Electronic Shutter Speed |
Auto/Manual 1/3 s–1/100,000 s |
| Min. Illumination |
0.008 [email protected] (Color, 30 IRE) 0.0008 [email protected] (B/W, 30 IRE) 0 lux (Illuminator on) |
| Lens Size | |
| Illumination Distance |
30 m (98.43 ft) (IR); 30 m (98.43 ft) (Warm light) |
| Pan/Tilt/Rotation Range |
Pan: 0°–360° Tilt: 0°–78° Rotation: 0°–360° |
| Lens Mount |
M12 |
| Max. Aperture |
F1.6 |
| Focal Length |
2.8 mm; 3.6 mm |
| Audio |
Built-in Microphone |
| Lens Type | |
| Video Compression |
H.265; H.264; H.264H; H.264B; MJPEG (Only supported by the sub stream) |
| Storage |
FTP; SFTP; Micro SD card (support max. 256 GB); NAS |
| Power |
DC 12V |
| Protection |
IP67 |
| Digital Noise Reduction |
3D DNR |
| WDR |
120 dB |
| Casing Material |
Inner core: Metal Cover: Metal Decoration ring: Plastic Quick install mounting plate: Metal |
| Product Dimensions |
99.1 mm × Φ121.9 mm (3.90"× Φ4.80") |
| Net Weight |
0.48 kg (1.06 lb) |
| Gross Weight |
0.62 kg (1.37 lb) |
Download
You may also like…

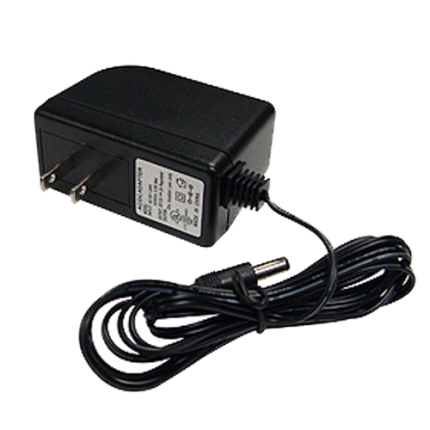

W-T1000 12V-12W 1Amp Desktop UL Rated Power Supply
