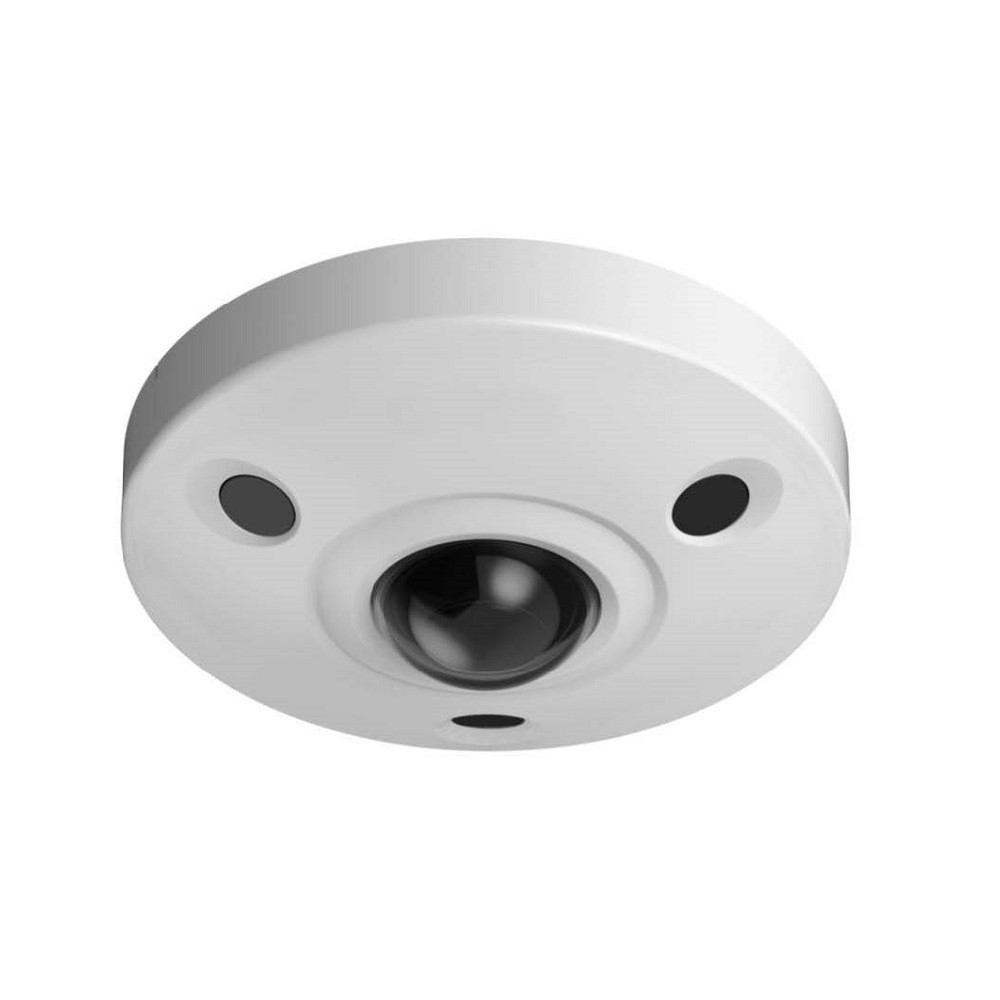

IPC-FE8120-IR 12M Ultra HD Vandal-proof IR Network Fisheye Camera

Product Overview

The IPC-FE8120-IR is a 12MP ultra HD fisheye camera designed for comprehensive surveillance in wide areas. Its 185° panoramic lens supports multiple de-warp modes including EPTZ, allowing flexible monitoring from a single device. Advanced image processing features such as DWDR, 3D DNR, BLC/HLC, AWB, and ROI ensure clarity even in complex lighting conditions. Dual-stream H.264 and MJPEG encoding provide optimized bandwidth usage, while micro SD storage supports local recording. Built-in IR LEDs extend night visibility up to 10 m. Two-way audio allows for real-time communication, and privacy masking protects sensitive areas. With IP67 protection and IK10 vandal resistance, this camera is suited for both indoor and outdoor deployment, maintaining reliability under harsh conditions.

Key Features

• Panoramic Coverage: Captures ultra-wide 185° scenes for complete situational awareness in a single frame.
• Flexible De-Warping Modes: Choose from Original, Panoramic, Double Panoramic, 1+3, EPTZ, or 4-picture modes to suit diverse monitoring needs.
• Enhanced Low-Light Performance: IR LEDs combined with 12MP resolution deliver detailed night-time imagery up to 10 m.
• Advanced Image Processing: DWDR, 3D DNR, BLC, HLC, and ROI coding optimize image clarity and reduce bandwidth requirements.
• Interactive Audio: Built-in microphone with 1-in/1-out audio interface for real-time voice monitoring and communication.
• Robust Security Design: IK10 vandal-proof and IP67-rated casing ensures protection against physical tampering and harsh environments.
• Smart Network Compatibility: Supports ONVIF, PSIA, and CGI protocols, plus multiple monitoring options including web viewer, CMS, and mobile apps.

Key Specifications

• Image Sensor & Resolution: 1/2.3″ 12MP progressive scan CMOS, max 4000 × 3000 pixels
• Frame Rate: 12MP @ 1–15 fps, 3MP @ 25/30 fps
• Lens & Aperture: 1.57 mm manual lens, F2.2
• Illumination: IR LEDs up to 10 m for low-light environments
• Protection & Mount: IP67-rated, IK10 vandal-resistant, board-in mounting
