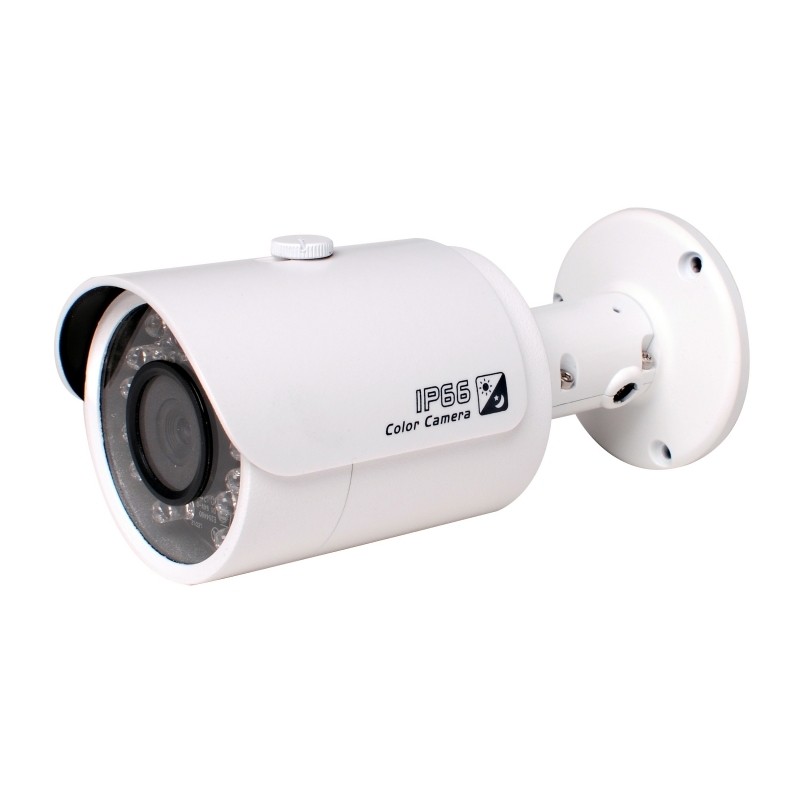

IPC-HFW4100S 1.3MP HD Network Mini IR-Bullet Camera

Product Overview

The IPC-HFW4100S delivers reliable 720P HD surveillance in a compact mini-bullet design. Its 1/3″ CMOS sensor ensures detailed video capture with 1280 × 960 effective pixels. The camera supports high-speed, long-distance transmission over 75-3 coaxial cables, making it ideal for installations where bandwidth or distance is critical. Smart IR technology extends night-time visibility up to 20 m while preventing overexposure in close-range scenes. Its robust day/night functions, including ICR, AWB, BLC, and 3D-DNR, maintain image clarity under varying lighting conditions. The camera provides flexible HD/CVBS output with on-screen OSD control via coaxial cable. Built for outdoor environments, its IP66-rated housing withstands rain, dust, and extreme temperatures. The included bracket simplifies mounting, making it suitable for residential or commercial applications.

Key Features

• High-Definition Imaging: 1.3MP sensor ensures crisp 720P video for detailed monitoring.
• Smart IR Night Vision: Automatically adjusts IR intensity for up to 20 m of clear night-time footage.
• Flexible Transmission: Supports long-distance real-time video over coaxial cables exceeding 500 m.
• Advanced Imaging Controls: Day/Night (ICR), AWB, BLC, and 3D-DNR maintain optimal image quality in all conditions.
• Dual Output Modes: Switch easily between high-definition HDCVI and standard CVBS video outputs.
• Compact & Durable: IP66-rated weatherproof housing provides protection in harsh outdoor environments.
• OSD Remote Control: On-screen display settings controllable via coaxial cable for easy configuration.

Key Specifications

• 1/3″ 1.3Megapixel CMOS
• 25/30/50/60fps@720P
• High speed, long distance real-time transmission
• HD and standard definition switchable
• OSD Menu, control over coaxial cable
• Day/Night (ICR), AWB, AGC, BLC, 3D-DNR,
• 3.6mm fixed lens
• Max. IR LEDs length 20m, Smart IR
• IP66, DC12V
