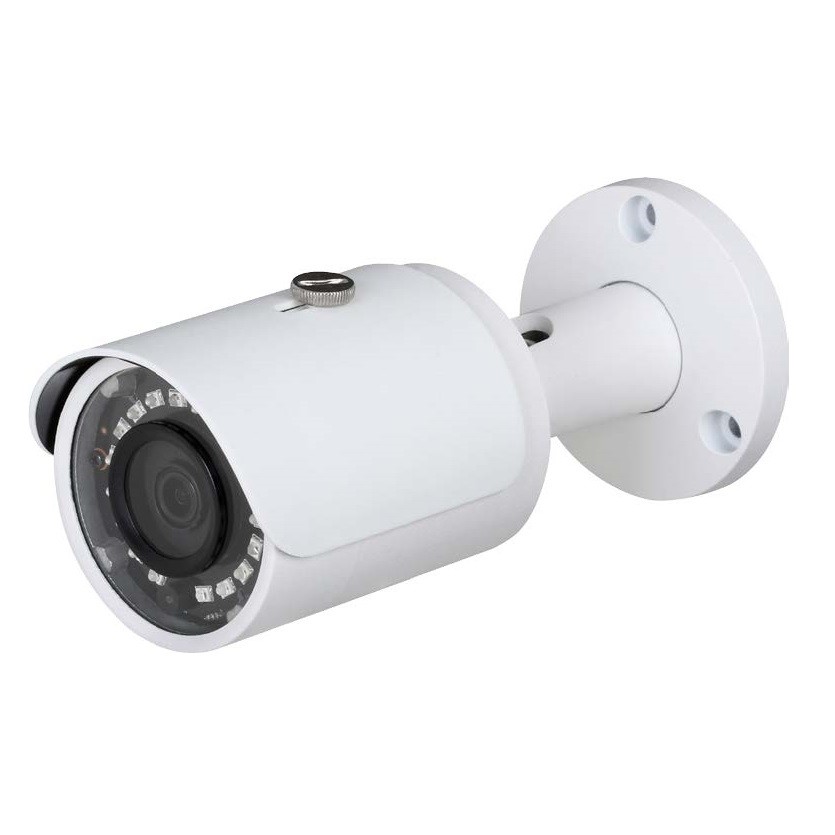

IPC-MB144S-IR-3.6 4MP WDR IR Mini-Bullet Camera IP67 30m

Product Overview

The IPC-MB144S-IR-3.6 delivers high-quality 4MP surveillance in a compact bullet form factor, ideal for both residential and commercial applications. Its 1/3″ progressive CMOS sensor produces crisp 2688 × 1520 video at 20 fps. The camera is equipped with WDR (120 dB), 3D-DNR, and advanced backlight compensation to handle challenging lighting environments. Smart IR LEDs illuminate scenes up to 30 m, while automatic ICR enables seamless day/night transitions. Network monitoring is supported via web viewer, CMS (DSS/PSS), and mobile app (DMSS), providing flexible access. H.265+ compression reduces storage and bandwidth requirements without sacrificing image quality. The camera also supports ROI, privacy masking, and motion detection with up to four configurable zones. Its robust IP67-rated housing ensures reliable outdoor operation under harsh weather conditions.

Key Features

• Ultra HD Imaging: 4MP sensor delivers detailed surveillance footage for critical monitoring points.
• Smart Night Vision: IR LEDs up to 30 m provide clear visibility in complete darkness.
• Intelligent Motion Analytics: Supports tripwire and intrusion detection for precise alarm triggers.
• Advanced Image Optimization: WDR, BLC/HLC, 3D-DNR, and auto white balance maintain consistent image quality.
• Efficient Streaming: Dual-stream H.265/H.264+ encoding saves bandwidth while maintaining clarity.
• Privacy & ROI Control: Configurable privacy masking and region-of-interest settings enhance security management.
• Durable Outdoor Design: IP67-rated metal and plastic housing ensures resilience in harsh environments.

Key Specifications

• 1/3″ 4Megapixel progressive CMOS
• H.265 & H.264 dual-stream encoding
• 20fps@4M (2688×1520) &25/30fps@3M (2304×1296)
• WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
• Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
• 3.6 mm fixed lens
• Max IR LEDs Length 30m
• IP67, PoE
