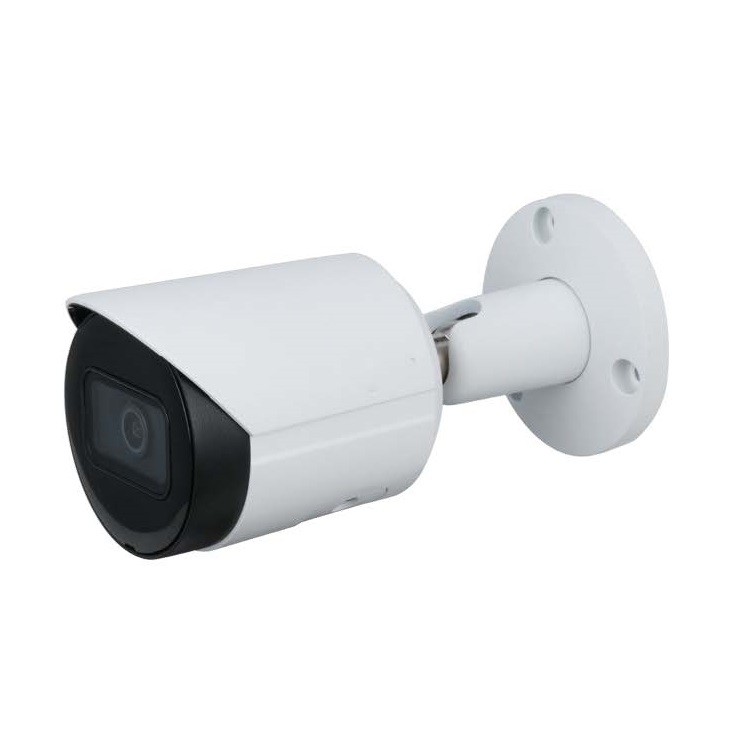

IPC-MB244S-IR 4MP WDR IR Fixed Bullet Network Camera

The IPC-MB244S-IR is designed for high-quality 4MP surveillance in a compact bullet form. Its 1/3″ CMOS sensor provides crisp video up to 2688 × 1520 at 20 fps, with smooth streaming via H.265/H.264 dual compression. The camera features WDR (120 dB), 3D-DNR, and backlight compensation to optimize performance under challenging lighting. Smart IR LEDs illuminate up to 30 m, while intelligent video analysis detects intrusion and tripwire events. The camera supports region-of-interest (ROI) encoding and digital watermarking for enhanced security. Abnormality detection monitors network disconnection, SD card issues, IP conflicts, and unauthorized access. Designed for flexible deployment, it supports both DC12V and PoE power supply. Its rugged IP67-rated metal housing ensures dependable performance outdoors.

Key Features

• Ultra HD Surveillance: 4MP resolution provides clear, detailed footage for critical areas.
• Smart Night Vision: IR illumination up to 30 m ensures visibility in complete darkness.
• Advanced Image Processing: WDR, HLC/BLC, and 3D-DNR maintain balanced and noise-free images.
• Intelligent Detection: Intrusion and tripwire detection enhance proactive security.
• Efficient Compression: H.265/H.264 encoding optimizes bandwidth and storage use.
• Flexible Video Management: ROI, digital watermarking, and abnormality alerts improve monitoring and data security.
• Weatherproof Design: IP67-rated housing provides protection against dust and water ingress for outdoor installation.

Key Specifications

• Sensor & Resolution: 1/3″ CMOS, 2688 × 1520 pixels, 4MP
• Lens: 2.8 mm fixed lens, M12 mount
• Frame Rate: Max. 4MP at 20 fps, 4MP@25/30 fps supported
• IR & Illumination: IR LEDs effective up to 30 m, minimum illumination 0.01 Lux
• Power & Protection: DC12V / PoE, Max 5 W, IP67-rated metal housing
