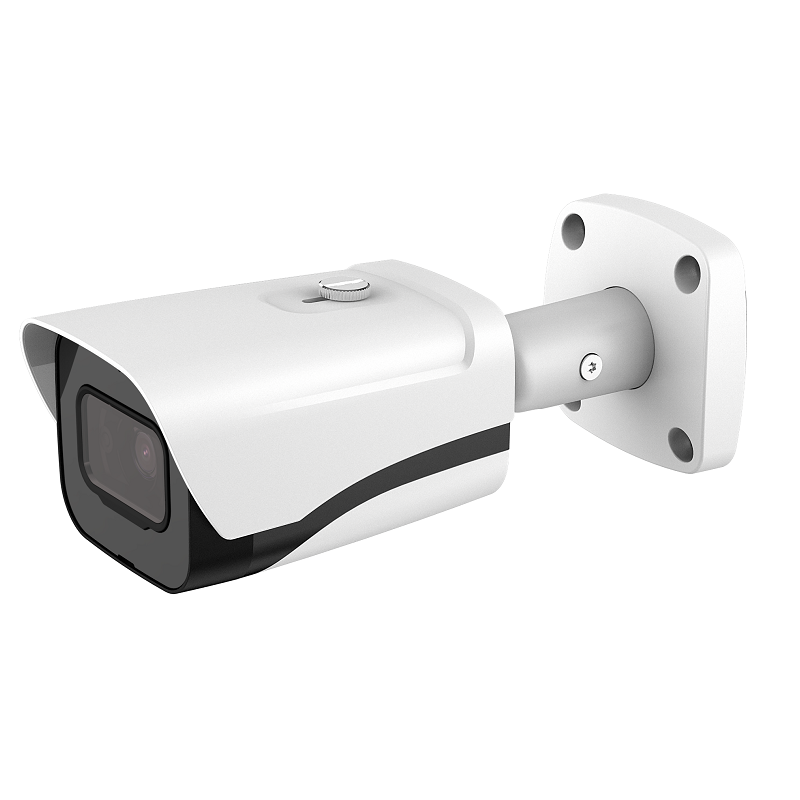

IPC-MB344E-IR-2.8mm 4MP IR Fixed focal Bullet WizSense Network Camera

4MP IR Fixed focal Bullet WizSense Network Camera

4MP, 1/3″ CMOS image sensor, low illuminance, high image definition
Outputs max. 4MP (2688 × 1520)@30 fps
H.265 codec, high compression rate, low bit rate
Built-in IR LED, max. IR distance: 50 m
ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
Intelligent detection: Intrusion, tripwire (support the classification and accurate detection of vehicle and human)
Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card, built-in Mic

SKU: IPC-MB344E-IR-2.8mm Categories: NETWORK CAMERAS, WINIC

Product Overview

The IPC-MB344E-IR-2.8mm integrates 4MP ultra-clear imaging with intelligent WizSense AI, enhancing both situational awareness and proactive security. Its 1/3″ progressive CMOS sensor outputs 2560 × 1440 resolution at 30 fps, while the built-in IR LEDs illuminate up to 50 m for night monitoring. This bullet camera features 120 dB WDR, 3D-DNR, HLC, and BLC, ensuring reliable video quality in challenging lighting conditions. Intelligent detection accurately classifies humans and vehicles for intrusion and tripwire events. Additional abnormality detection monitors SD card status, network connectivity, audio anomalies, and unauthorized access. With ROI, digital watermarking, and SMART H.264+/H.265+ encoding, it provides flexible bandwidth and storage management. Equipped with 12V DC or PoE power and an IP67 metal housing, it is designed for dependable outdoor deployment.

Key Features

WizSense AI: Smart human and vehicle classification for precise intrusion detection.
Extended Night Vision: IR LEDs illuminate up to 50 m with optimized low-light performance.
Enhanced Imaging: 120 dB WDR and 3D-DNR balance challenging lighting and reduce noise.
Flexible Video Management: ROI, SMART H.264+/H.265+, and digital watermarking for storage efficiency.
Comprehensive Abnormality Detection: Monitors SD card status, network disconnection, IP conflicts, and audio anomalies.
Audio & Alarm Support: Built-in microphone, two-way audio, and alarm I/O for proactive monitoring.
Outdoor Ready: IP67-rated metal housing ensures resistance to dust, water, and harsh conditions.

Key Specifications

Sensor & Resolution: 1/3″ CMOS, 4MP (2560 × 1440), 30 fps
Lens: 2.8 mm fixed lens, F1.6 aperture, M12 mount
IR & Illumination: Max IR distance 50 m, 0 Lux with IR on
Power & Network: 12V DC / PoE (802.3at), Max 24 W including IR
Video Encoding: H.265/H.264, ROI support, SMART codec for optimized bandwidth

Image Sensor

1/2.8" Progressive Scan CMOS

Camera Resolutions

Camera Style

Lens Size

Lens Type

Min. Illumination

Color: 0.005 Lux @ (F1.6

AGC ON); B/W: 0.001 Lux @ (F1.6

AGC ON)

0 Lux with IR

Shutter Speed

1 s to 1/30

000 s

Day & Night

IR cut filter

Zoom

25 × optional

16 × digital

Max. Resolution

2560 × 1440

Aperture

Video Bit Rate

32 Kbps to 16 Mbps

WDR

120 dB

Ethernet Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Power

24 VAC

Max. 24 W (including max. 9 W for IR and max. 1.6 W for heater); PoE (802.3at)

Material

Metal

Dimension

Ø210 mm × 344.7 mm (Ø 8.27" × 13.57")

Weight

Approx. 3.0 kg (6.61 lb.)
