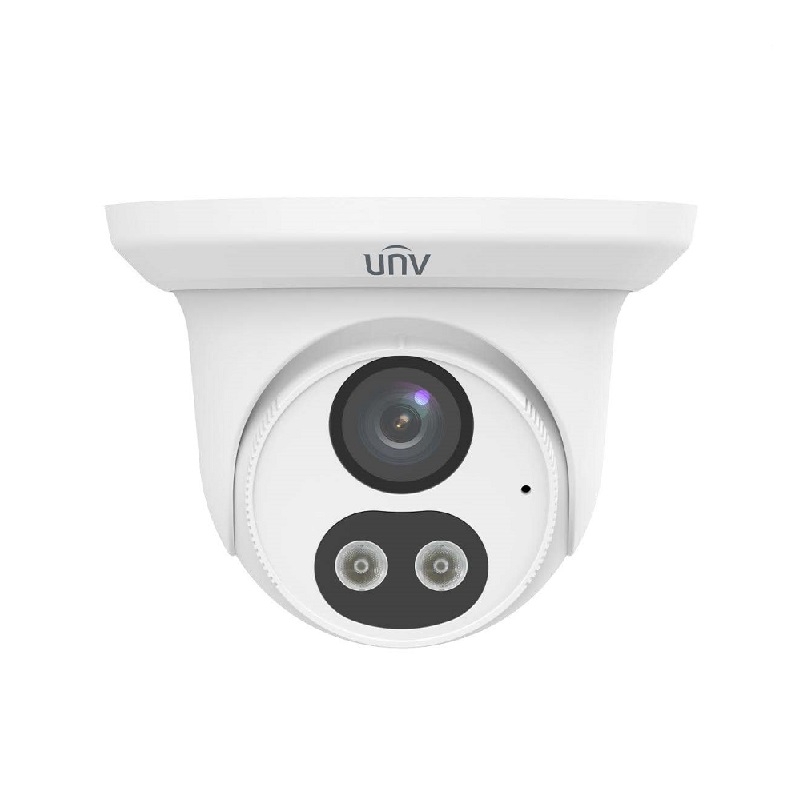

IPC3615LB-AF28K-DL 5MP HD ColorHunter Fixed Eyeball Network Camera

5MP HD ColorHunter Fixed Eyeball Network Camera

SKU: IPC3615LB-AF28K-DL Category: UNV

Description

High quality image with 5MP, 1/3″CMOS sensor
5MP (2880*1620)@ 20fps; 4MP (2560*1440)@ 25/20fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
Ultra H.265,H.265, H.264
Support 9:16 Corridor Mode
Built- in Mic
Smart IR, up to 30m (98ft) IR distance
Warm Light, up to 30m (98ft) warm light distance
2D/3D DNR (Digital Noise Reduction)

Additional information

Image Sensor	1/3.0" CMOS
Camera Resolutions	5 MP
Camera Style	Eyeball
Lens Type	Fixed Lens
Lens Size	2.8mm
Minimum Illumination	Colour: 0.01 lux(F1.6 , AGC ON) 0 lux with IR
Day/Night	IR-cut filter with auto switch(ICR)
Adjustment angle	Pan: 0° to 360° , Tilt: 0° to 80° , Rotate: 0° to 360°
WDR	DWDR
Illumination Distance	30m
Wavelength	850nm
Video Compression	Ultra265;H.265;H.264;MJPEG
Video Bit Rate	128 Kbps to 6144 Kbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD, up to 128 GB
Network Storage	ANR , NAS(NFS)
Audio	Built-in Microphone
Power	DC 12V±25% , PoE (IEEE 802.3af)
Power Interface	5.5mm coaxial power plug
Dimensions	Φ126×93.6 mm(Φ5.0"x3.7")
Weight	0.29kg(0.64lb)
Material	Metal+Plastic
Surge protection	4KV

Download

Datasheet

No associated firmware documentation found.
