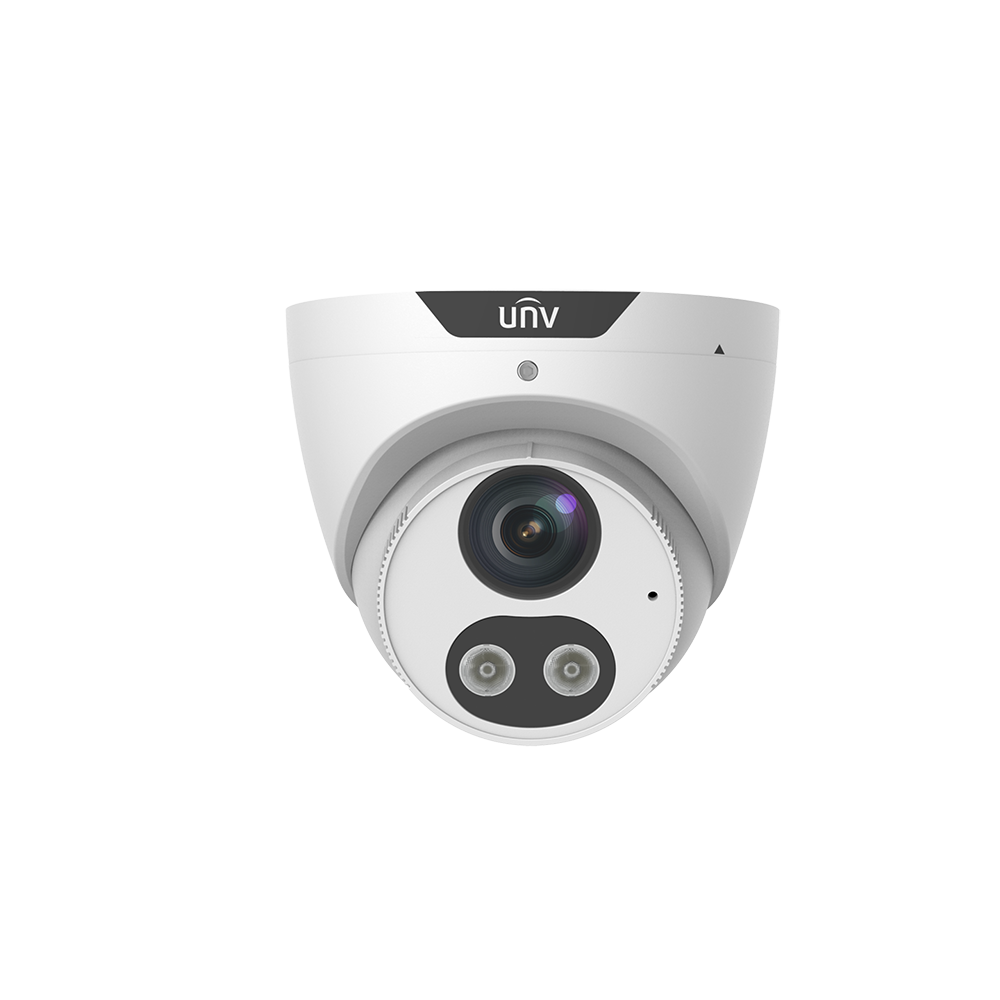

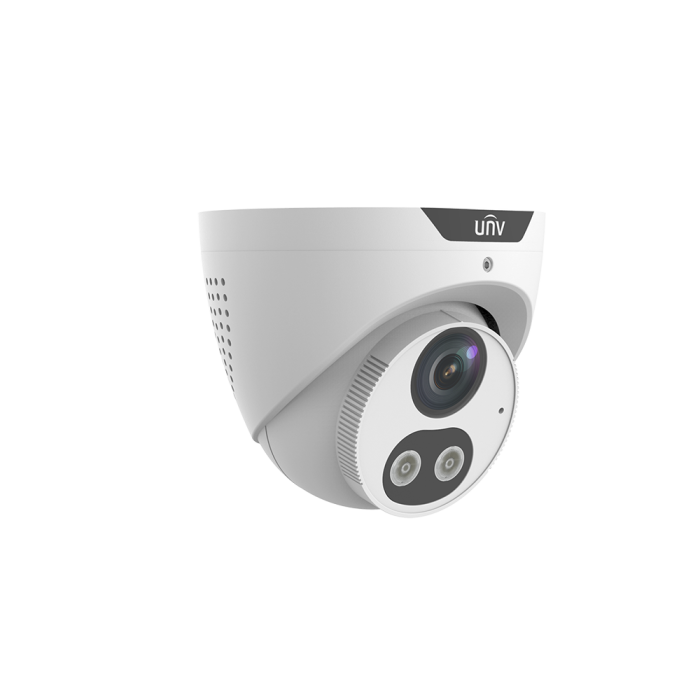

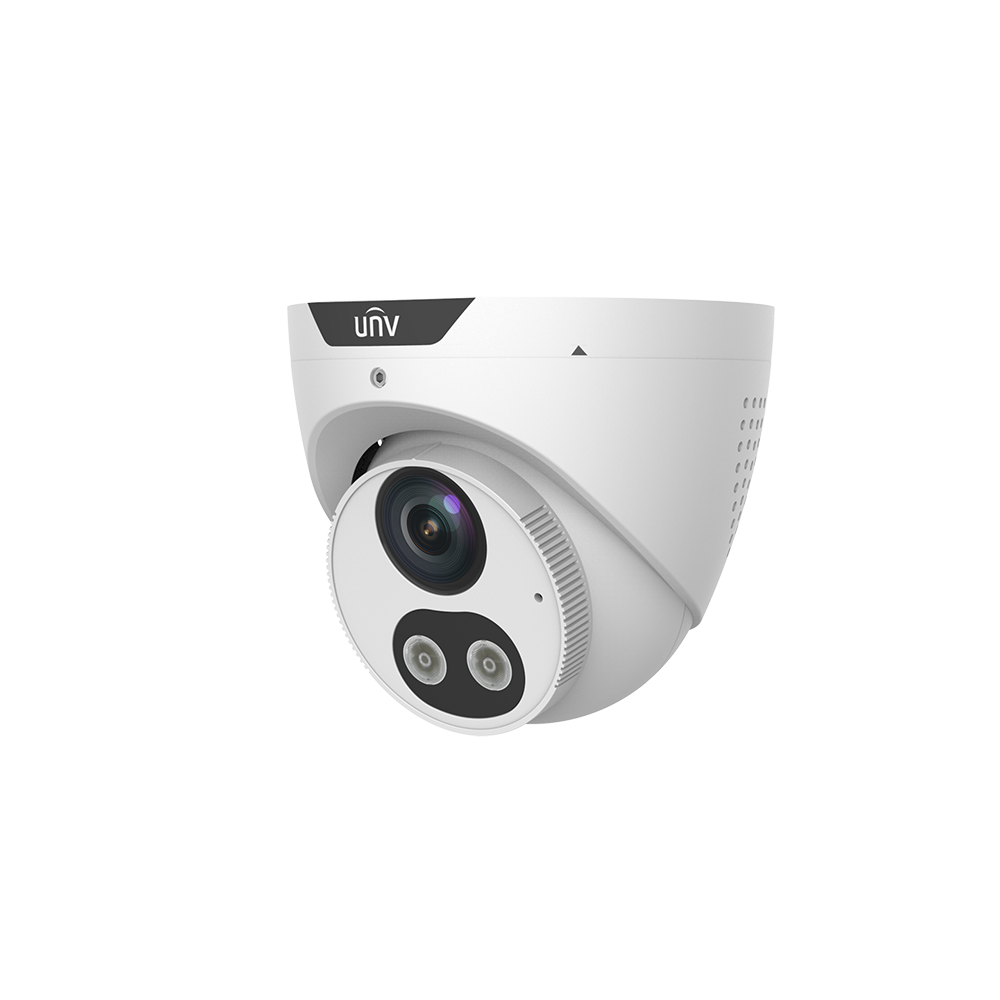

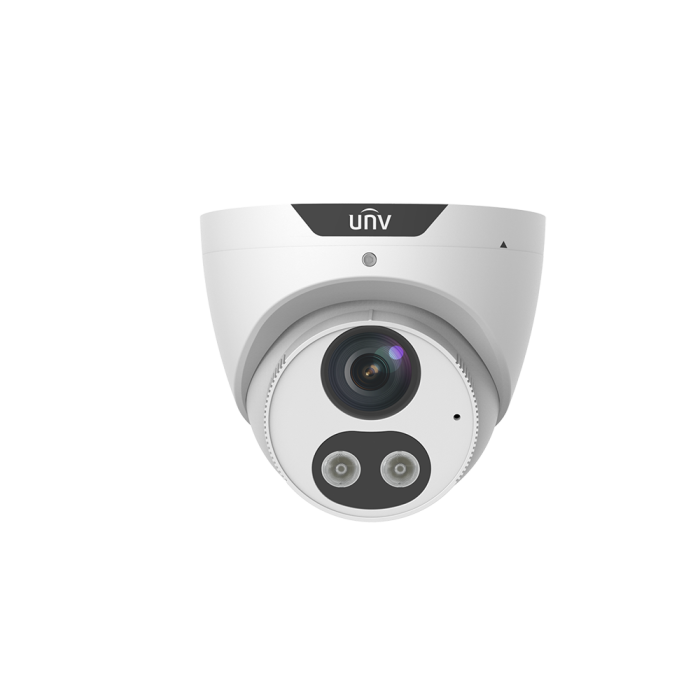

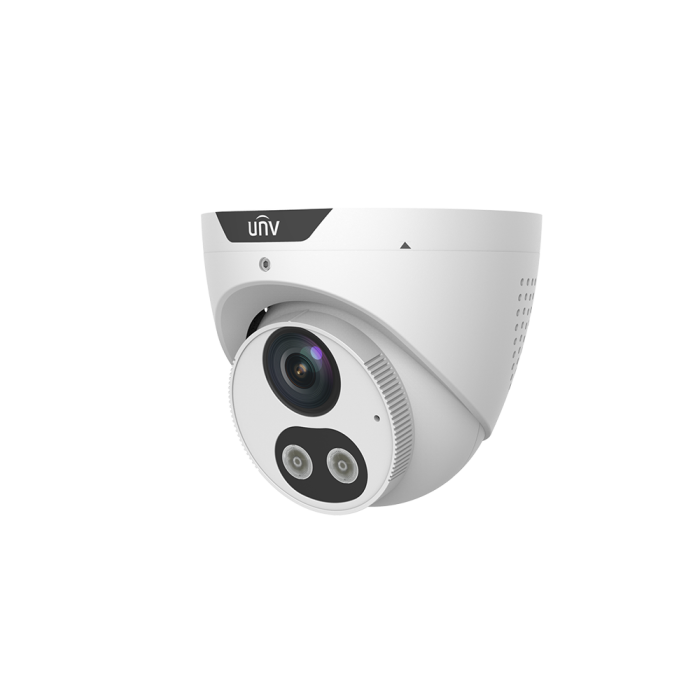

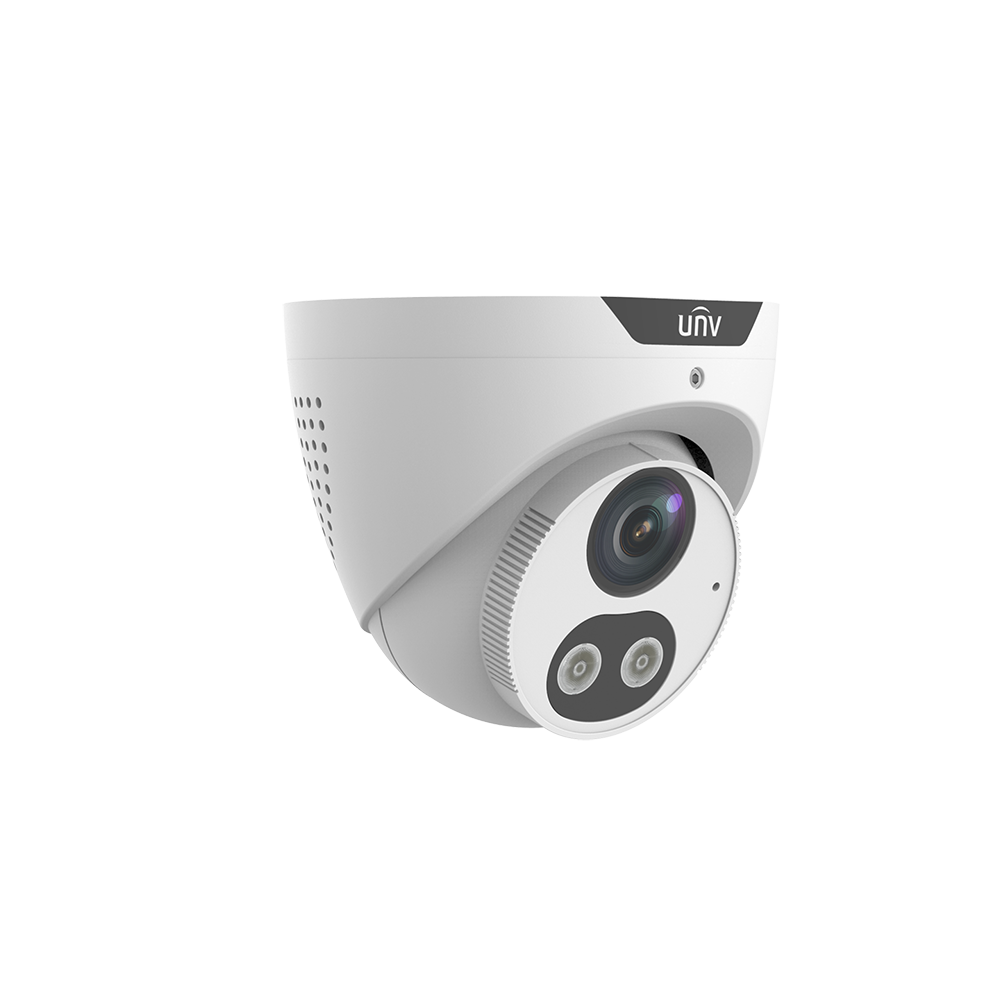

IPC3618SB-ADF40KMC-I0 8MP Tri-Guard Fixed Dual-light Turret Network Camera

8MP Tri-Guard Fixed Dual-light Turret Network Camera

SKU: IPC3618SB-ADF40KMC-I0 Category: Tri-Guard Series

Description

High quality image with 8 MP, 1/2.8″ CMOS sensor
8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps
Ultra 265, H.265, H.264, MJPEG
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
Supports sound and light alarm linkage. When smart intrusion prevention is triggered, the camera links sound alarm and light linkage
automatic selection of best snapshots, supports face detection masked area
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
120 dB true WDR technology enables clear image in strong light scene
Supports 9:16 corridor mode
Built-in mic and speaker
Smart IR, up to 30 m (98.4 ft) IR distance
MicroSD, up to 512 GB
IP67 protection

Additional information

Sensor	1/2.8" CMOS
Camera Resolutions	8 MP
Camera Style	Turret
Lens Size	4mm
Lens Type	Fixed Lens
WDR	120 dB
Min. Illumination	Color: 0.0025 Lux (F1.6 , AGC ON) , 0 Lux with ligh
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual , 1 ~ 1/100000s
Adjustment Angle	Pan: 0° to 360° , Tilt: 0° to 80° , Rotate: 0° to 360°
S/N	>52 dB
Iris	F1.6
Illumination Distance (IR)	30 m (98.4 ft)
Video Compression	Ultra 265 , H.265 , H.264 , MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Digital Noise Reduction	2D/3D DNR
Edge Storage	Micro SD, up to 512 GB
Network Storage	ANR , NAS (NFS)
Interface Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A
Audio	Built-in Microphone , Built-in Speaker
Power	DC 12 V±25% , PoE (IEEE 802.3af)
Power Consumption	Max. 8.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm × 95 mm (Ø4.4" × 3.7") (Ø × H)
Weight	0.45 kg (0.992 lb)
Material	Metal + Plastic
Surge Protection	4 KV
Protection	IP67
