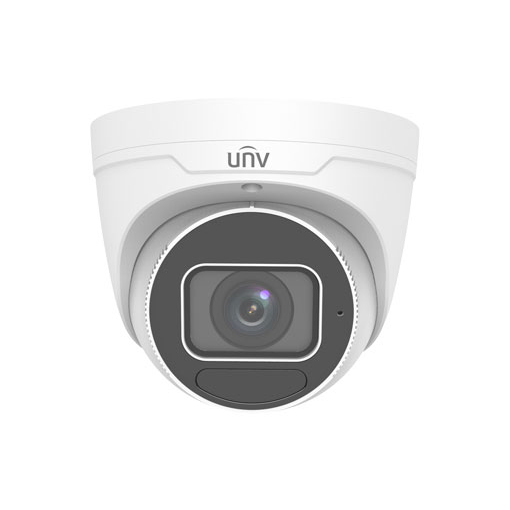

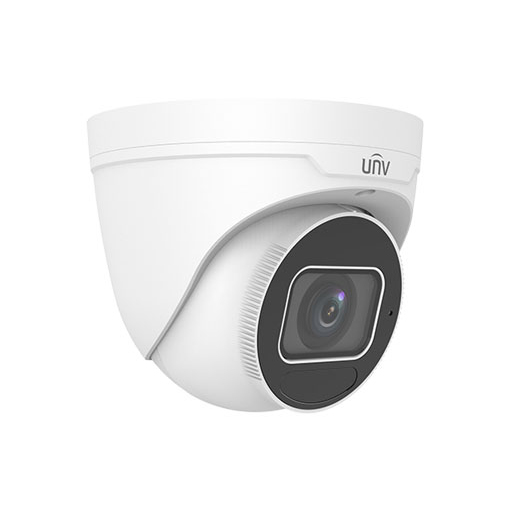

IPC3635SB-ADZK-I0 5MP HD LightHunter IR VF Eyeball Network Camera

5MP HD LightHunter IR VF Eyeball Network Camera

SKU: IPC3635SB-ADZK-I0 Category: UNV

Description

High quality image with 5MP, 1/2.7″ CMOS sensor
5MP (2880*1620)@ 30/25fps; 4MP (2560*1440)@ 30/25fps; 3MP (2304*1296) @30/25fps; 2MP (1920*1080) @30/25fps
Ultra 265, H.265, H.264, MJPEG
LightHunter technology ensures ultra-high image quality in low illumination environment
120dB true WDR technology enables clear image in strong light scene
Support 9:16 Corridor Mode
Built-in Mic
Smart IR, up to 40m (131ft) IR distance
Supports 256 G Micro SD card
IK10 vandal resistant
IP67 protection

Additional information

Image Sensor	1/2.7" Progressive Scan CMOS
Camera Resolutions	5 MP
Camera Style	Eyeball
Lens Size	2.7-13.5mm
Lens Type	Motorized Lens
Shutter Speed	1s to 1/100000s
Adjustment angle	Pan: 0° ~ 360° , Rotate: 0° ~ 360° , Tilt: 0° ~ 75°
Minimum Illumination	Colour: 0.002Lux (F1.2, AGC ON); 0Lux with IR
Digital Noise Reduction	2D/3D DNR
IR Range	Up to 40 m
Wavelength	850nm
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
Edge Storage	Micro SD, up to 256 GB
Network Storage	ANR
Interface Network	1 RJ45 10M/100M Base-TX Ethernet
Certifications	CE: EN 60950-1 , FCC: FCC Part 15 , UL: UL60950-1
Audio	Built-in Microphone
Power	DC 12V±25% , PoE (IEEE 802.3af) Power consumption: Max 7.0 W
Power consumption	Max 7.0 W
Dimension	Φ129 x 110mm (5.1" x 4.3")
Net Weight	0.70kg (1.52lb)
Material	Metal
Surge Protection	6KV
Protection	IP67
