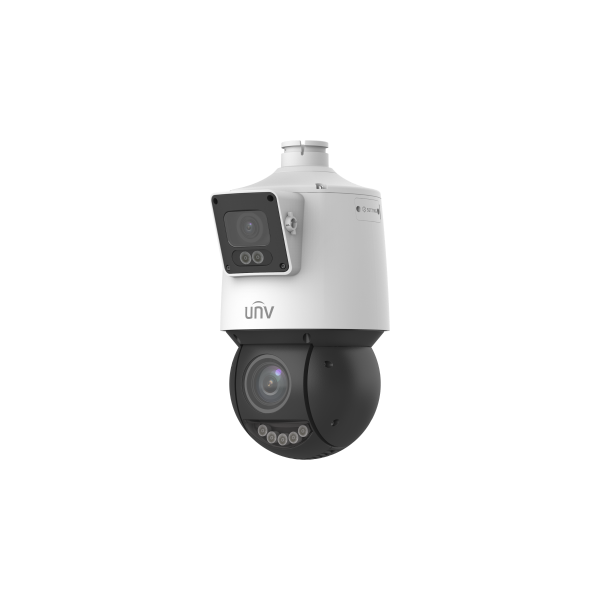

IPC94144SFW-X25-F40C 4MP+4MP 25X ColorHunter MultiView Dual-light Network PTZ Camera
4MP+4MP 25X ColorHunter MultiView Dual-light Network PTZ Camera
Description
- Fixed camera and PTZ camera integration, dual-channel with one IP, provides overall view and detailed view at the same time
- Ultra 265, H.265, H.264, MJPEG
- 25X optical zoom of PTZ channel allows for closer viewing of subjects
- Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
- automatic selection of best snapshots, supports face detection masked area
- People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
- PTZ channel can be linked to fixed channel’s smart intrusion prevention to track the objects triggering the rule
- Supports sound and light warning, makes warning and alarming more noticeable
- LightHunter technology ensures ultra-high image quality in low illumination environment
- IR and warm light illumination to deal with different scenes and achieve full-color illumination
- DC 12 V, PoE+ (IEEE 802.3at) power supply
- Alarm I/O: 2/1, audio I/O: 1/1
Additional information
| Sensor |
Channel 1 (Panorama): 1/1.8" CMOS Channel 2 (Detail): 1/2.7" CMOS |
|---|---|
| Camera Resolutions | |
| Lens Size |
4.8~ 120mm |
| Min. Illumination |
Channel 1 (Panorama): Color: 0.0005 Lux (F1.0 ,AGC ON) ,0 lux with IR Channel 2 (Detail): Color: 0.003 Lux (F1.5 ,AGC ON) ,0 lux with IR |
| Day/Night |
IR-cut filter with auto switch (ICR) |
| Shutter |
Auto/Manual ,1 ~ 1/100000s |
| WDR |
120 dB |
| S/N |
>56 dB |
| Iris |
Channel 1 (Panorama): F1.0 Channel 2 (Detail): F1.5 to F3.8 |
| Illumination Distance (IR) |
Channel 1 (Panorama): N/A Channel 2 (Detail): 100 m (328.1 ft.) |
| Video Compression |
Ultra 265 ,H.265 ,H.264 ,MJPEG |
| Video Bit Rate |
128 Kbps to 16 Mbps |
| Digital Noise Reduction |
2D/3D DNR |
| Edge Storage |
Micro SD ,up to 512GB |
| Network Storage |
ANR |
| Interface Network |
1 × RJ45 10 M/100 M Base-TX Ethernet |
| Audio |
Built-in Speaker |
| Power |
DC 12 V (±25%) ,PoE+ (IEEE 802.3at) |
| Power Consumption |
Max. 24 W |
| Power Interface |
Ø5.5 mm coaxial power plug |
| Dimensions |
304 mm × 195 mm × 163 mm (12.0" × 7.7" × 6.4" ) (L × W × H) |
| Weight |
2.27 kg (5.00 lb.) |
| Reset Button |
Support |
| Surge Protection |
4 KV |
| Protection |
IP66 |
