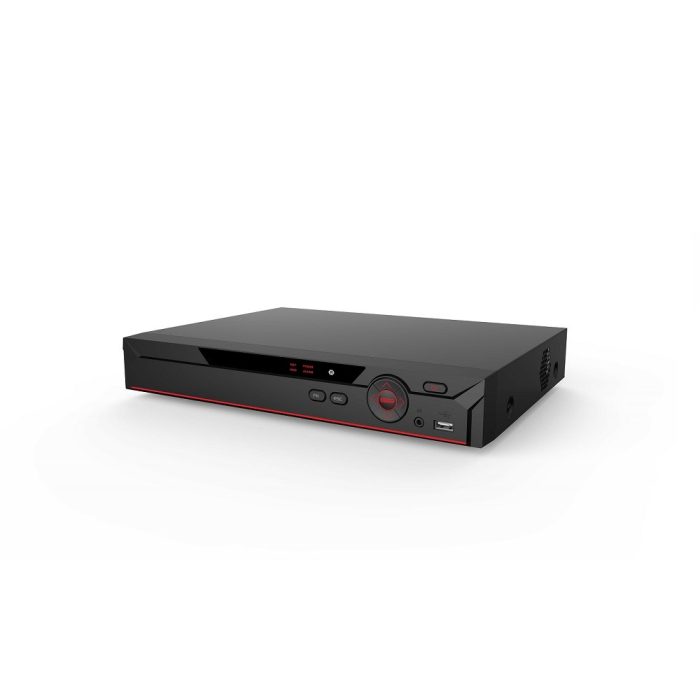

iXVR531H-4 4 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

Product Overview

The iXVR531H-4 is a mini 1U digital video recorder designed for versatile small to medium surveillance systems. It combines Penta-brid technology to support both analog and IP cameras, with up to 6 IP channels at 6MP resolution. Its smart AI features include perimeter protection, SMD Plus, and face recognition on analog channels, allowing targeted event detection. Operators can efficiently search by human or vehicle classification using AI Search, while POS and IoT functionalities integrate additional security management tools. The NVR provides multi-screen monitoring with HDMI and VGA output, and its embedded Linux OS ensures stable performance. Backup is simplified via USB or network, and the system supports up to 128 simultaneous user access for effective team monitoring.

Key Features

• Multi-Format Support: Penta-brid input accommodates HDCVI, AHD, TVI, CVBS, and IP cameras.
• Smart Analytics: AI-driven human and vehicle detection, SMD Plus, and face recognition.
• Efficient Compression: H.265+/H.265 dual-stream reduces bandwidth and storage needs.
• AI Search Capabilities: Search videos by target classification for fast investigation.
• Flexible Storage: Supports 1 SATA HDD, with backup via USB or network.
• Multi-Screen Display: HDMI and VGA output with 1/4/6 screen modes depending on IP extension.
• Integration Ready: IoT and POS functionalities allow advanced operational management.

Key Specifications

• Channels: 4 analogs + up to 2 IP channels, each IP channel up to 6MP
• Video Compression: AI Coding/H.265+/H.265/H.264+/H.264
• AI Functions: Human and vehicle detection, SMD Plus, face recognition
• Recording Resolution: Up to 5MP-N per channel
• Network & Access: 1 RJ-45 Ethernet port, up to 128 user access
