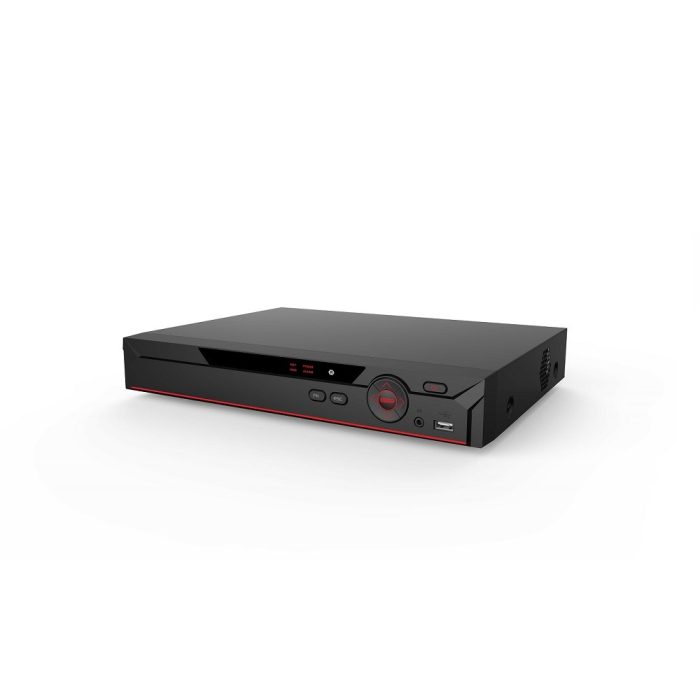

iXVR531H-8 8 Channel Penta-brid 1080P Mini 1U Digital Video Recorder

Product Overview

The iXVR531H-8 mini 1U recorder provides flexible monitoring with Penta-brid technology, supporting HDCVI, AHD, TVI, CVBS, and IP cameras. It handles up to 12 IP channels and features AI-powered analytics including perimeter protection, SMD Plus, and human face recognition on analog streams. The recorder allows users to search by human or vehicle targets using AI Search, while supporting POS and IoT functionalities to streamline operational management. Multi-screen output via HDMI and VGA enables 1/4/8/9 or 16 split views, depending on IP extension. The embedded Linux system ensures reliability, while backup is possible via USB or network. Up to 128 users can access the system simultaneously for coordinated monitoring.

Key Features

• Versatile Input Support: 8 analog + up to 12 IP channels for flexible deployment.
• Smart Analytics: AI-driven human and vehicle detection, SMD Plus, and face recognition.
• Efficient Compression: Dual-stream H.265+/H.265 minimizes storage usage without quality loss.
• AI Search: Quickly locate videos based on human or vehicle classification.
• Flexible Storage: Supports 1 SATA HDD with USB/network backup options.
• Multi-Screen Display: HDMI and VGA outputs, supporting up to 16-screen split in IP mode.
• Operational Integration: POS and IoT functionalities for enhanced live and recorded management.

Key Specifications

• Channels: 8 analog + up to 12 IP channels, each IP channel up to 6MP
• Video Compression: AI Coding/H.265+/H.265/H.264+/H.264
• AI Functions: Human and vehicle detection, SMD Plus, face recognition
• Recording Resolution: Up to 5MP-N per channel
• Network & Access: 1 RJ-45 Ethernet port, up to 128 user access
