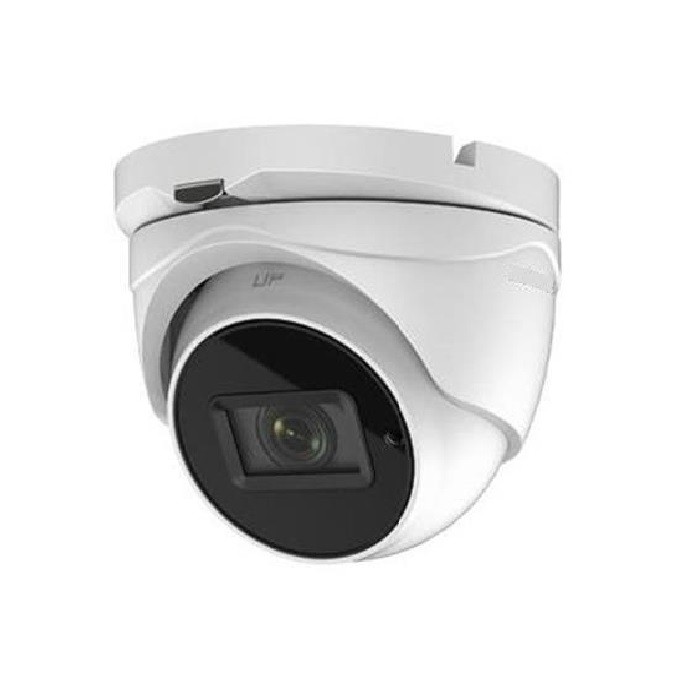

NC214-XDZ 4 MP IR VF Network varifocal Turret Camera

4 MP IR VF Network varifocal Turret Camera

1/3″ progressive scan CMOS
2560 × 1440@20fps
2.8 mm to 12 mm varifocal lens
H.265+, H.265, H.264+, H.264
Dual stream 3D DNR
Up to 30 m IR range
IP67

Product Overview

The NC214-XDZ is a 4 MP IR varifocal turret camera designed for flexible high-definition surveillance. With 2560 × 1440 resolution, 120 dB WDR, and up to 30 m IR range, it provides clear imaging in various lighting conditions. Built-in analytics and smart monitoring features enhance situational awareness for indoor and outdoor environments.

Key Features

4 MP High-Definition Imaging: Delivers detailed video with 2560 × 1440 resolution at 20 fps.

Varifocal Lens Flexibility: Adjustable 2.8 mm to 12 mm lens allows precise field-of-view control.

120 dB Wide Dynamic Range: Ensures clear imaging in scenes with strong contrast and backlighting.

IR Night Vision: Up to 30 m IR range for low-light and night-time monitoring.

Smart Video Analytics: Supports region of interest, slow shutter, and built-in behavior detection for accurate event capture.

Built-in Storage Support: Includes microSD/SDHC/SDXC slot up to 128 GB, plus local and NAS storage options.

Flexible Installation: 3-axis adjustment (pan, tilt, rotate) allows precise camera positioning in multiple environments.

Alarm Trigger	Motion detection , video tampering , network disconnected , IP address conflict , illegal login , HDD error , HDD full
Angle Adjustment	Pan: 0° to 360° , tilt: 0° to 75° , rotate: 0° to 360°
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Auto iris	No
Client	CMS , Guarding Vision Client
Communication Interface	1 RJ45 10M/100M self‐adaptive Ethernet port
Day & Night	Auto , scheduled , day , night
Digital Noise Reduction	3D DNR
Dimensions	Camera: Ø 129.4 mm × 116.4 mm (5.1" × 4.6") With package: Ø 170 mm × 150 mm (6.7" × 5.9")
Electronic Shutter Speed	1/3 s to 1/100 , 000 s
Focal Length	2.8 mm to 12 mm
Focus Control	No
FOV	Horizontal FOV 92.8° to 29° , vertical FOV 50.2° to 16.4° , diagonal FOV 109° to 32.3°
General Function	One‐key reset , anti‐flicker , heartbeat , mirror , password protection , privacy mask , watermark , IP address filter
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Image Enhancement	BLC , 3D DNR
Image Sensor	1/3" progressive scan CMOS
Image Settings	Saturation , brightness , contrast , sharpness , AGC , white balance adjustable by client software or web browser
Protection	IP67
IR Range	Up to 30 m
Lens Mount	Φ14
Main Stream	50Hz: 20fps (2560 × 1440) , 25fps (2304 × 1296 , 1920 × 1280 , 1280 × 720) 60Hz: 20fps (2560 × 1440) , 30fps (2304 × 1296 , 1920 × 1280 , 1280 × 720)
Material	Camera body: metal , bottom base: plastic
Max Aperture	F1.6
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.01 Lux @ (F1.2 , AGC ON) , 0.02 Lux @ (F1.6 , AGC ON)
Network Protocols	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , NTP , UPnP , SMTP , IGMP , 802.1X , QoS , IPv6 , UDP , Bonjour
Network Storage	Support built‐in microSD/SDHC/SDXC card (128G) , local storage and NAS (NFS , SMB/CIFS) , ANR
On-Board Storage	Built‐in microSD/SDHC/SDXC slot , up to 128 GB
Operating Conditions	‐30 °C to 60 °C (‐22 °F to 140 °F) , humidity: 95% or less (non‐condensing)
Power Consumption	12 VDC , 1 A , Max: 11 W PoE: (802.3af , 36 V to 57 V) , 0.4 A to 0.2 A , Max: 12.5 W
Power Supply	12 VDC ± 25% , 5.5 mm coaxial power plug PoE (802.3af , class 3)
Region of Interest	1 fixed region for main stream and sub‐stream
Reset Button	Yes
Simultaneous Live View	Up to 6 channels
Slow Shutter	Yes
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
User/Host Level	Up to 32 users 3 levels: Administrator , Operator , and User
Video Bit Rate	32 Kbps to 8 Mbps
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
Wavelength	850 nm
Web Browser	IE8+ , Chrome 31.0‐44 , Firefox 30.0‐51 , Safari 8.0+
Weight	Camera: 560 g (1.2 lb.) With package: 850g (1.9 lb.)
Wide Dynamic Range	120 dB
Lens Size	2.8-12mm

NC224G2-VDZ 4 MP Accsense VF 2.8-12mm Network Dome Camera

Click to enlarge

Add to wishlist

SKU: NC214-XDZ Categories: NETWORK CAMERAS, WINIC

Description

4 MP High-Definition Imaging: Delivers detailed video with 2560 × 1440 resolution at 20 fps.
Varifocal Lens Flexibility: Adjustable 2.8 mm to 12 mm lens allows precise field-of-view control.
120 dB Wide Dynamic Range: Ensures clear imaging in scenes with strong contrast and backlighting.
IR Night Vision: Up to 30 m IR range for low-light and night-time monitoring.
Smart Video Analytics: Supports region of interest, slow shutter, and built-in behavior detection for accurate event capture.
Built-in Storage Support: Includes microSD/SDHC/SDXC slot up to 128 GB, plus local and NAS storage options.
Flexible Installation: 3-axis adjustment (pan, tilt, rotate) allows precise camera positioning in multiple environments.

Key Specifications

Image Sensor: 1/3″ Progressive Scan CMOS
Max. Resolution: 2560 × 1440
Lens: 2.8–12 mm Varifocal, Φ14 mount
Protection: IP67
Power Supply: 12 VDC ±25% or PoE (802.3af, max. 12.5 W)

Additional information

Alarm Trigger	Motion detection , video tampering , network disconnected , IP address conflict , illegal login , HDD error , HDD full
Angle Adjustment	Pan: 0° to 360° , tilt: 0° to 75° , rotate: 0° to 360°
API	ONVIF (PROFILE S , PROFILE G) , ISAPI
Auto iris	No
Client	CMS , Guarding Vision Client
Communication Interface	1 RJ45 10M/100M self‐adaptive Ethernet port
Day & Night	Auto , scheduled , day , night
Digital Noise Reduction	3D DNR
Dimensions	Camera: Ø 129.4 mm × 116.4 mm (5.1" × 4.6") With package: Ø 170 mm × 150 mm (6.7" × 5.9")
Electronic Shutter Speed	1/3 s to 1/100 , 000 s
Focal Length	2.8 mm to 12 mm
Focus Control	No
FOV	Horizontal FOV 92.8° to 29° , vertical FOV 50.2° to 16.4° , diagonal FOV 109° to 32.3°
General Function	One‐key reset , anti‐flicker , heartbeat , mirror , password protection , privacy mask , watermark , IP address filter
H.264 Type	Baseline Profile/Main Profile/High Profile
H.264+	Main stream supports
H.265 Type	Main Profile
H.265+	Main stream supports
Image Enhancement	BLC , 3D DNR
Image Sensor	1/3" progressive scan CMOS
Image Settings	Saturation , brightness , contrast , sharpness , AGC , white balance adjustable by client software or web browser
Protection	IP67
IR Range	Up to 30 m
Lens Mount	Φ14
Main Stream	50Hz: 20fps (2560 × 1440) , 25fps (2304 × 1296 , 1920 × 1280 , 1280 × 720) 60Hz: 20fps (2560 × 1440) , 30fps (2304 × 1296 , 1920 × 1280 , 1280 × 720)
Material	Camera body: metal , bottom base: plastic
Max Aperture	F1.6
Max. Resolution	2560 × 1440
Min. Illumination	Color: 0.01 Lux @ (F1.2 , AGC ON) , 0.02 Lux @ (F1.6 , AGC ON)
Network Protocols	TCP/IP , ICMP , HTTP , HTTPS , FTP , DHCP , DNS , DDNS , RTP , RTSP , RTCP , NTP , UPnP , SMTP , IGMP , 802.1X , QoS , IPv6 , UDP , Bonjour
Network Storage	Support built‐in microSD/SDHC/SDXC card (128G) , local storage and NAS (NFS , SMB/CIFS) , ANR
On-Board Storage	Built‐in microSD/SDHC/SDXC slot , up to 128 GB
Operating Conditions	‐30 °C to 60 °C (‐22 °F to 140 °F) , humidity: 95% or less (non‐condensing)
Power Consumption	12 VDC , 1 A , Max: 11 W PoE: (802.3af , 36 V to 57 V) , 0.4 A to 0.2 A , Max: 12.5 W
Power Supply	12 VDC ± 25% , 5.5 mm coaxial power plug PoE (802.3af , class 3)
Region of Interest	1 fixed region for main stream and sub‐stream
Reset Button	Yes
Simultaneous Live View	Up to 6 channels
Slow Shutter	Yes
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
User/Host Level	Up to 32 users 3 levels: Administrator , Operator , and User
Video Bit Rate	32 Kbps to 8 Mbps
Video Compression	Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG
Wavelength	850 nm
Web Browser	IE8+ , Chrome 31.0‐44 , Firefox 30.0‐51 , Safari 8.0+
Weight	Camera: 560 g (1.2 lb.) With package: 850g (1.9 lb.)
Wide Dynamic Range	120 dB
Lens Size	2.8-12mm
