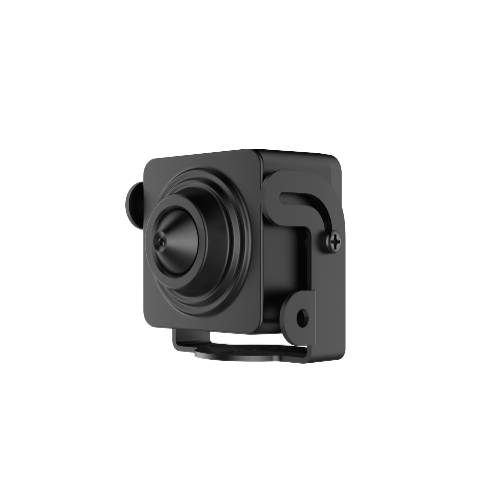

NC322-PH 2 MP H.265+ Mini PinHole Network Camera
2 MP H.265+ Mini PinHole Network Camera
- 1/2.7″ Progressive Scan CMOS
- 1920 × 1080@30 fps
- H.265+, H.265, H.264+, H.264
- 6 Behavior analyses, 2 exception detections and face detections
- 3D DNR/ROI
- Support NAS (NFS, SMB/CIFS)
- 120dB WDR
Description
Product Overview
The NC322-PH is a 2 MP mini pinhole camera designed for discreet surveillance with full HD 1080p resolution. It features H.265+ compression for efficient storage and intelligent behavior analytics, including face detection and exception monitoring. Compact yet robust, it supports ROI, WDR, and NAS storage, delivering high-quality video in diverse lighting conditions.
Key Features
- High-Definition Imaging: 1920 × 1080 resolution with progressive scan CMOS for smooth, detailed video capture.
- Advanced Video Analytics: Supports 6 behavior analyses, 2 exception detections, and face detection for intelligent event monitoring.
- Wide Dynamic Range & 3D DNR: 120 dB WDR with 3D digital noise reduction ensures clarity in challenging lighting environments.
- Compact & Discreet Design: Mini pinhole form factor (31 × 31 × 26 mm) ideal for covert installation.
- Flexible Storage Options: Built-in support for NAS (NFS, SMB/CIFS) and local recording for backup and easy retrieval.
- Low-Light & IR Performance: Sensitive imaging down to 0.005 Lux (B/W), ideal for night-time monitoring.
- Efficient Power & Build: Low power consumption (max 3 W) and aluminum alloy construction for durability.
Key Specifications
- Max. Resolution: 2 MP (1920 × 1080)
- Lens: 3.7 mm fixed, M12 mount
- IR & Illumination: Color: 0.025 Lux @ F1.2, B/W: 0.005 Lux @ F1.2
- Power Supply: 12 VDC ±20%, 5.5 mm coaxial plug
- Protection & Build: Aluminum alloy, compact pinhole design, weight approx. 93 g
Additional information
| Camera Resolutions | |
|---|---|
| Lens Size | |
| Camera Style | |
| Lens Type | |
| Image Sensor |
1/2.7" Progressive Scan CMOS |
| Min. illumination |
Without/Mmodel: Color:0.025Lux@(F1.2 ,AGCON) ,Color:0.109Lux@(F2.5 ,AGCON) B/W:0.005Lux@(F1.2 ,AGCON) ,B/W:0.022Lux@(F2.5 ,AGCON) With/Mmodel: Color:0.025Lux@(F1.2 ,AGCON) ,Color:0.069Lux@(F2.0 ,AGCON) B/W:0.005Lux@(F1.2 ,AGCON) ,B/W:0.014Lux@(F2.0 ,AGCON) |
| Shutter time |
1/30s ~ 1/100 ,000s |
| WDR |
120 dB |
| Lens Mount |
M12 |
| Power Supply |
12 VDC卤20% ,桅5.5mmcoaxialplugpower |
| Power Consumption and Current |
12 VDC ,0.3 A ,max. 3 W |
| Material |
Aluminum Alloy |
| Dimension |
Without /M model: 31 mm× 31mm×26mm(1.2"×1.2"×1") With /Mmodel: 31 mm×31mm×39mm(1.2"×1.2"×1.5") |
| Weight |
With package: approx. 202 g (0.4 lb.) Camera: approx. 93 g (0.2 lb.) |
