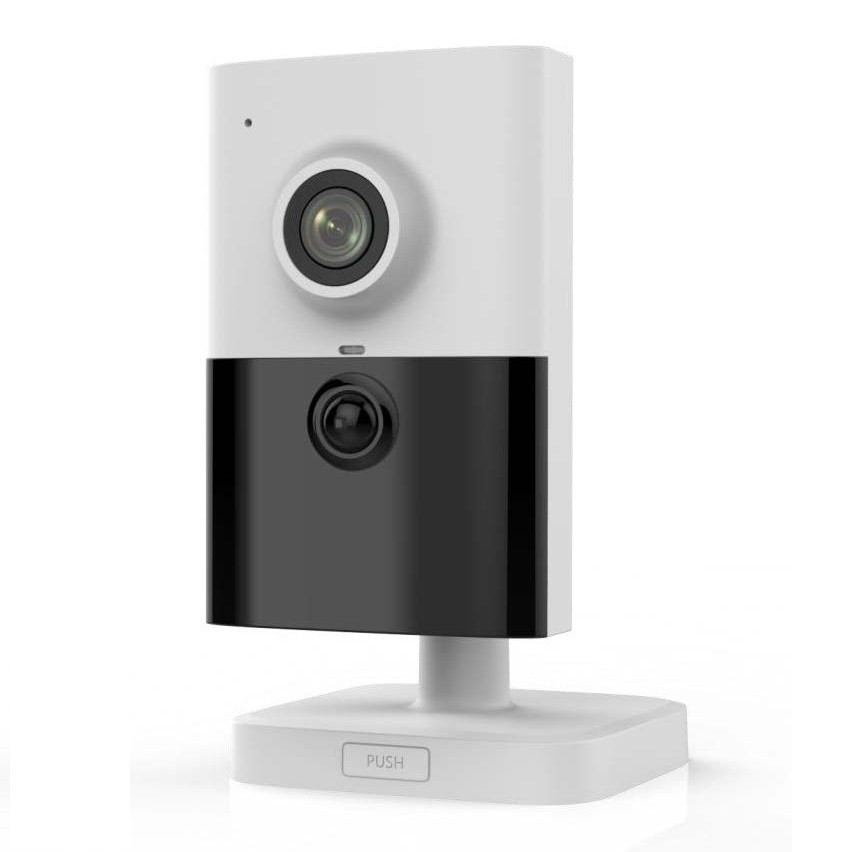

NC324-CU 4 MP IR Fixed Cube WIFI Network Camera

Product Overview

The NC324-CU is a 4 MP fixed cube network camera delivering 2688 × 1520 resolution at 30 fps with H.265+ compression for efficient storage. Designed for smart home or small business use, it integrates built-in microphone and speaker, PIR motion detection, and intelligent behavior analytics such as line crossing and intrusion detection. With 120 dB WDR, 3D DNR, and ROI support, it captures clear images even in challenging lighting. Flexible storage options include onboard micro SD up to 128 GB and NAS support.

Key Features

• 4 MP Full HD Imaging: Delivers sharp video at 2688 × 1520 with a 2.8 mm fixed lens and wide FOV (horizontal: 98°).
• Smart Detection & PIR Sensor: Supports motion detection, PIR trigger, and behavior analysis including line crossing and intrusion detection.
• Advanced Image Enhancement: 120 dB WDR with BLC, 3D DNR, HLC, and ROI, ensuring clarity under high contrast and low-light conditions.
• Integrated Audio: Built-in microphone and speaker enable two-way audio communication.
• Flexible Storage & Streaming: Onboard micro SD/SDHC/SDXC (up to 128 GB), NAS support, and triple stream capability for main, sub, and third stream.
• Network Connectivity: Wired via RJ45 Ethernet or Wi-Fi (802.11b/g/n) with secure encryption (WPA/WPA2).
• IR Night Vision & Low-Light Performance: Color video down to 0.01 Lux, B/W with IR to 0 Lux, IR range up to 10 m, PIR range 10 m.

Key Specifications

• Lens: 2.8 mm fixed lens, M12 mount, FOV: 98° H / 55° V / 114° diagonal
• Video Compression: H.265+, H.265, H.264+, H.264
• Behavior Analysis: Line crossing detection, intrusion detection
• Power: 12 VDC ±25%, PoE (802.3af, class 3)
• Protection: IP66 weatherproof, PIR up to 10 m
• WDR: 120 dB, 3D DNR, BLC/HLC, ROI
• Onboard Storage: Micro SD/SDHC/SDXC, up to 128 GB
