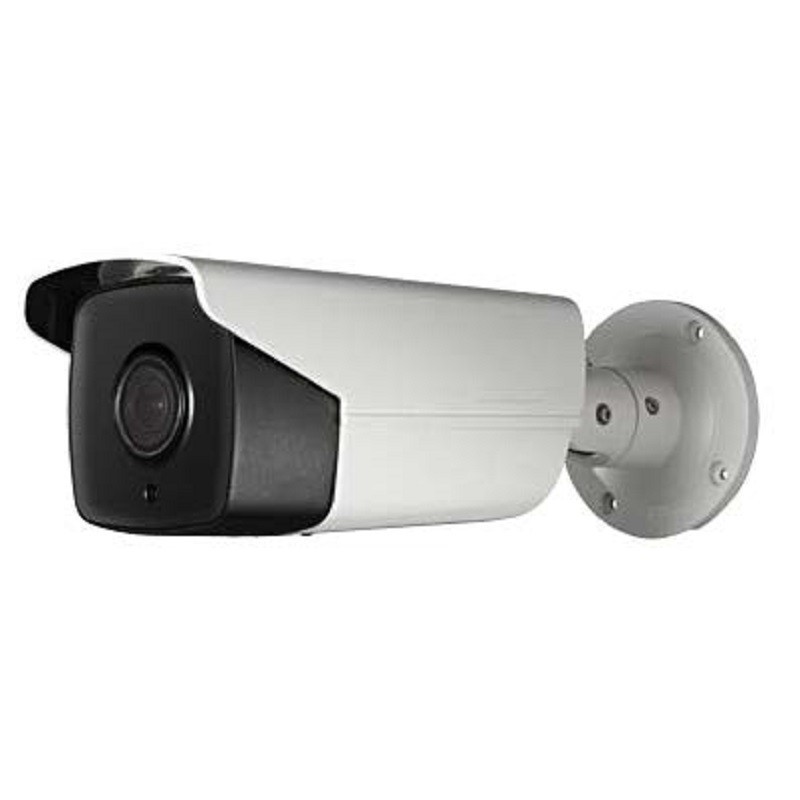

NC324G2-XB 4MP EXIR Fixed Bullet Network Camera

Product Overview

The NC324G2-XB is a 4 MP EXIR fixed bullet network camera engineered for professional surveillance applications. Featuring a 1/3″ Progressive Scan CMOS sensor and 120 dB WDR, it ensures sharp imaging even under challenging backlight conditions. The camera utilizes H.265+ compression for optimized bandwidth and storage, while its long-range EXIR IR LEDs provide up to 60 meters of night vision. Built for outdoor deployment, it boasts IP67 weatherproofing and a durable aluminum alloy body with sun shield. Flexible angle adjustment and a 4 mm fixed lens make it ideal for monitoring entrances, perimeters, and open areas.

Key Features

• Ultra HD 4 MP Imaging: Provides 2688 × 1520 resolution with excellent detail clarity for critical monitoring areas.
• High Dynamic Range: 120 dB WDR enables clear visibility in high-contrast lighting environments.
• Long-Range Night Vision: EXIR IR LEDs deliver up to 60 m IR coverage, ensuring round-the-clock surveillance.
• Efficient Video Compression: Supports H.265+, H.265, H.264+, H.264, reducing storage costs and network load.
• Robust Outdoor Protection: IP67 weatherproof housing with aluminum body and plastic sun shield ensures reliable outdoor operation.
• Flexible Viewing Angles: Pan: 0°–360°, Tilt: 0°–90°, Rotate: 0°–360°, suitable for diverse surveillance scenarios.
• PoE Support: Simplifies installation with single-cable power and data transmission.

Key Specifications

• Lens: 4 mm fixed, M12 mount, F1.6 aperture
• IR & Min. Illumination: Color: 0.005 Lux @ (F1.6, AGC ON); 0 Lux with IR
• Video Bit Rate: 32 Kbps – 8 Mbps
• Power Supply: 12 VDC ±25%, PoE (802.3af, Class 3)
• Protection: IP67 weatherproof
