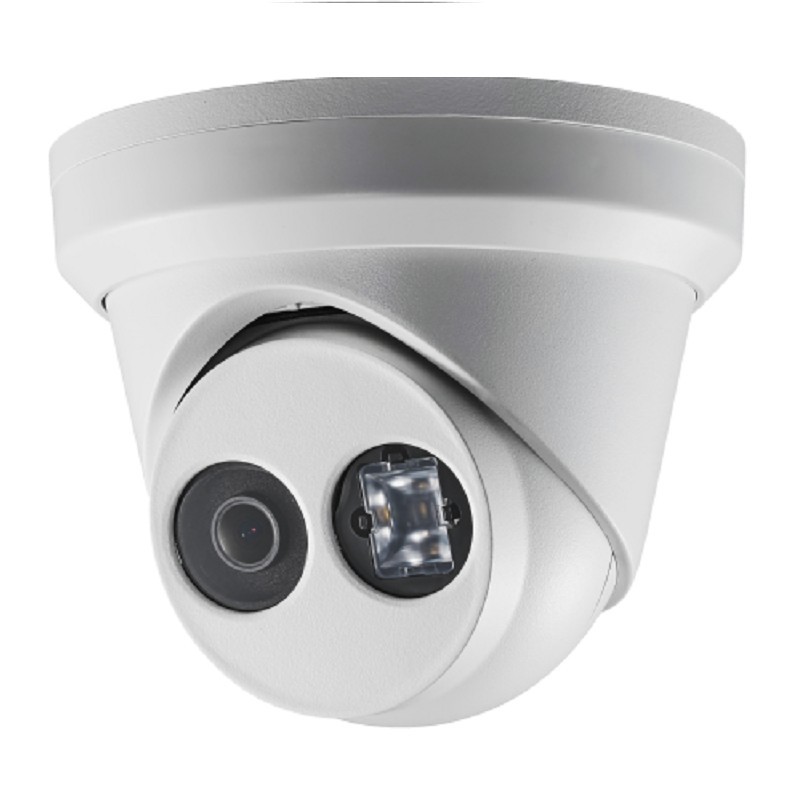

NC324G2-XD 4 MP AcuSense Fixed Turret Network Camera

4 MP AcuSense Fixed Turret Network Camera

  • High quality imaging with 4 MP resolution
  • Clear imaging against strong backlight due to 120 dB WDR technology
  • Efficient H.265+ compression technology
  • Water and dust resistant (IP67)
  • Focus on human and vehicle targets classification based on deep learning
SKU: NC324G2-XD 2.8mm Categories: ,
Description

Product Overview

The NC324G2-XD is a high-performance 4 MP AcuSense Fixed Turret Network Camera designed to deliver superior image clarity and intelligent surveillance. Powered by deep learning algorithms, this camera excels at human and vehicle targets classification, significantly reducing false alarms and ensuring you only get alerted for what matters most.

Key Features

  • High-Definition Imaging: Capture every detail with 4 MP high-resolution video, providing clear and crisp footage day or night.
  • AcuSense Technology: Leverage advanced deep learning to focus on human and vehicle classification, filtering out noise from animals, leaves, or rain.
  • Superior Low-Light Performance: Equipped with 120 dB True WDR technology, the camera ensures clear imaging even against strong backlighting or high-contrast environments.
  • Efficient Storage: Utilizes H.265+ compression technology, saving up to 75% on bandwidth and storage space without compromising video quality.
  • Rugged Durability: Rated IP67 water and dust resistant, making it ideal for both indoor and outdoor installations in various weather conditions.
  • Easy Installation: The turret design allows for flexible 3-axis adjustment, ensuring the perfect viewing angle for your security needs.

Feature Specification

  • Max. Resolution: 4 Megapixel
  • Image Sensor: 1/3″ Progressive Scan CMOS
  • Lens Options: 2.8mm/4 mm fixed lens
  • WDR: 120 dB
  • Protection: IP67 Weatherproof
  • Smart Feature: Human and Vehicle Detection
Additional information
Camera Resolutions

Camera Style

Lens Type

Image Sensor

1/3″ Progressive Scan CMOS

Lens Size

Min. Illumination

Color: 0.005 Lux @ (F1.6

,

AGC ON)

,

0 Lux with IR on

Shutter Speed

1/3 s to 1/100

,

000 s

Wide Dynamic Range

120 dB

Day & Night

ICR Cut

Angle Adjustmen

Pan: 0° to 360°

,

tilt: 0° to 75°

,

rotate: 0° to 360°

Aperture

F1.6

Lens Mount

M12

IR Range

Up to 30 m

Wavelength

850nm

Video Bit Rate

32 Kbps to 8 Mbps

Communication Interface

1 RJ45 10M/100M self-adaptive Ethernet port

Power Supply

12 VDC ± 25%

,

reverse polarity protection PoE: 802.3af

,

Class 3

Power Consumption and Current

12 VDC

,

0.5 A

,

max. 6 W PoE (802.3af

,

36 V to 57 V)

,

0.19 A to 0.12 A

,

max. 7 W

Power Interface

Ø5.5 mm coaxial power plug

Material

Aluminum alloy body

Camera Dimension

Ø127.3 × 95.9 mm (Ø5.01″ × 3.78″)

Package Dimension

150 × 150 × 141 mm (5.9" × 5.9" × 5.6")

Camera Weight

Approx. 600 g (1.3 lb.)

With Package Weight

Approx. 816 g (1.8 lb.)

Protection

IP67
