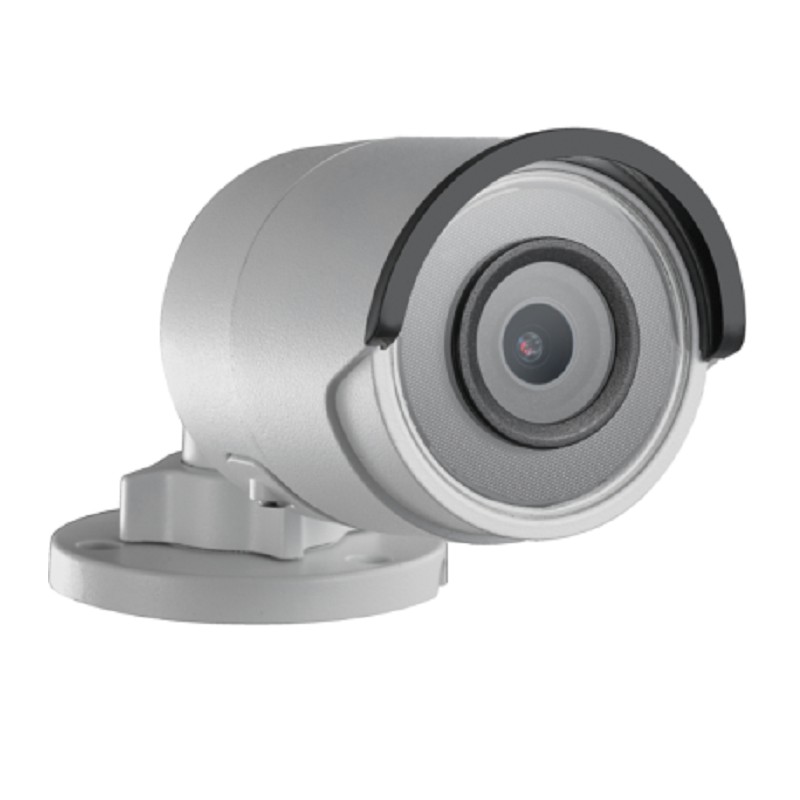

NC328-MB 8 MP Network Fixed Bullet Camera
8 MP Network Fixed Bullet Camera
- The NC328-MB is an 8 MP network fixed bullet camera designed for high-definition surveillance.
- It delivers ultra-clear video up to 3840 × 2160 resolution with advanced image processing technologies.
- True 120 dB WDR and 3D digital noise reduction help maintain clear images in challenging lighting conditions.
- Infrared illumination provides night monitoring up to 30 meters.
- Multiple intelligent detection functions enhance situational awareness.
- Built-in storage supports up to 128 GB and IP67 protection ensure reliable outdoor operation.
Description
Product Overview
The NC328-MB is a high-performance 8 MP network bullet camera designed for professional monitoring environments. Equipped with a 1/2.5″ Progressive Scan CMOS sensor, it captures video up to 3840 × 2160 resolution at 15 fps. The camera features a 2.8 mm fixed lens and supports infrared night vision up to 30 meters for reliable low-light surveillance. Advanced imaging technologies including 120 dB Wide Dynamic Range and 3D Digital Noise Reduction improve clarity in scenes with strong contrast or low illumination. Intelligent analytics functions such as line crossing detection, intrusion detection, unattended baggage detection, and object removal detection help enhance event awareness. The system also supports face detection for additional monitoring capabilities. H.265+ compression optimizes bandwidth and storage efficiency. On-board microSD storage up to 128 GB provides convenient local recording. With IP67-rated protection and support for both PoE and 12 VDC power, the camera is suitable for demanding outdoor security deployments.
Key Features
- Ultra HD 8 MP Imaging: Capture detailed surveillance video with resolution up to 3840 × 2160.
- Advanced Smart Detection: Supports line crossing, intrusion detection, unattended baggage detection, and object removal detection.
- Face Detection Capability: Automatically detects human faces appearing within the monitored scene.
- Wide Dynamic Range Processing: 120 dB WDR ensures balanced exposure in environments with strong backlight.
- Enhanced Image Quality: 3D Digital Noise Reduction minimizes image noise and improves clarity in low-light conditions.
- Efficient Video Compression: H.265+, H.265, H.264+, and H.264 reduce bandwidth and storage consumption.
- Infrared Night Monitoring: Integrated IR illumination provides visibility up to 30 meters.
Key Specifications
- Up to 8 megapixel high resolution
- Max. 3840 × 2160 @15fps
- 2.8 mm fixed
- lens, optional
- H.265, H.265+, H.264+, H.264
- 120dB Wide Dynamic Range
- 3D Digital Noise Reduction
- 12 VDC & PoE (802.3af)
- IR range: up to 30 m
- Support on‐board storage, up to 128 GB
- IP67
Additional information
| Image Sensor |
1/2.5" Progressive Scan CMOS |
|---|---|
| Camera Resolutions | |
| Camera Style | |
| 3‐Axis Adjustment |
Pan: 0° to 360° ,tilt: 0° to 90° ,rotate: 0° to 360° |
| Day & Night |
Auto/Scheduled |
| Digital Noise Reduction |
3D DNR |
| Face Detection |
Human face appears in the image can be detected and trigger linkage method |
| General Function |
One‐key Reset ,Anti‐Flicker ,Heartbeat ,Mirror ,Password Protection ,Privacy Mask ,Watermark ,IP Address Filter |
| Image Enhancement |
BLC/3D DNR |
| Image Settings |
Support rotate mode. Brightness ,contrast ,saturation ,and sharpness are adjustable via web browser and client software |
| Intrusion Detection |
Enter and loiter in a pre‐defined virtual region ,up to 1 pre‐defined virtual regions supported |
| IR Range |
Up to 30 m |
| Lens Mount |
M12 |
| Line Crossing Detection |
Cross a pre‐defined virtual line ,up to 1 pre‐defined virtual lines supported |
| Main Stream |
50Hz: 15 fps (3840 × 2160) ,25 fps (2560 × 1920 ,2560 × 1440 ,1920 × 1080 ,1280 × 720) 60Hz: 15 fps (3840 × 2160) ,30 fps (2560 × 1920 ,2560 × 1440 ,1920 × 1080 ,1280 × 720) |
| Max. Resolution |
3840 × 2160 |
| Min. Illumination |
Color: 0.01 lux @(F1.2 ,AGC ON) ,0 lux with IR |
| Network Storage |
Support microSD/SDHC/SDXC card (128G) local storage ,NAS (NFS ,SMB/CIFS) ,ANR |
| Object Removal Detection |
Objects removed from the pre‐defined region ,such as the exhibits on display. |
| On-Board Storage |
Built‐in microSD/SDHC/SDXC slot ,up to 128 GB |
| Operating Conditions |
‐30 °C to +60 °C (‐22 °F to +140 °F) ,Humidity 95% or less (non‐condensing) |
| Region of Interest |
Support 1 fixed region for mainstream and sub stream separately |
| Shutter Speed |
1/3 s to 1/100 ,000 s |
| Unattended Baggage Detection |
Objects left over in the pre‐defined region such as the baggage ,purse ,dangerous materials |
| Video Bit Rate |
32 Kbps to 16 Mbps |
| Video Compression |
Main stream: H.265/H.264 Sub stream: H.265/H.264/MJPEG Third stream: H.265/H.264 |
| Wide Dynamic Range |
120dB |
| Power Supply |
12 VDC ± 25% ,7W PoE(802.3af ,class 3) ,7.5W |
| Weight |
Camera: 410 g (0.9 lb.) |
| Dimensions |
Camera: Φ70 × 155.03 mm (Φ2.76″ × 6.1″) Package: 216 × 121 × 118 mm (8.5″ × 4.76″ × 4.65″) |
| Protection |
IP67 |
