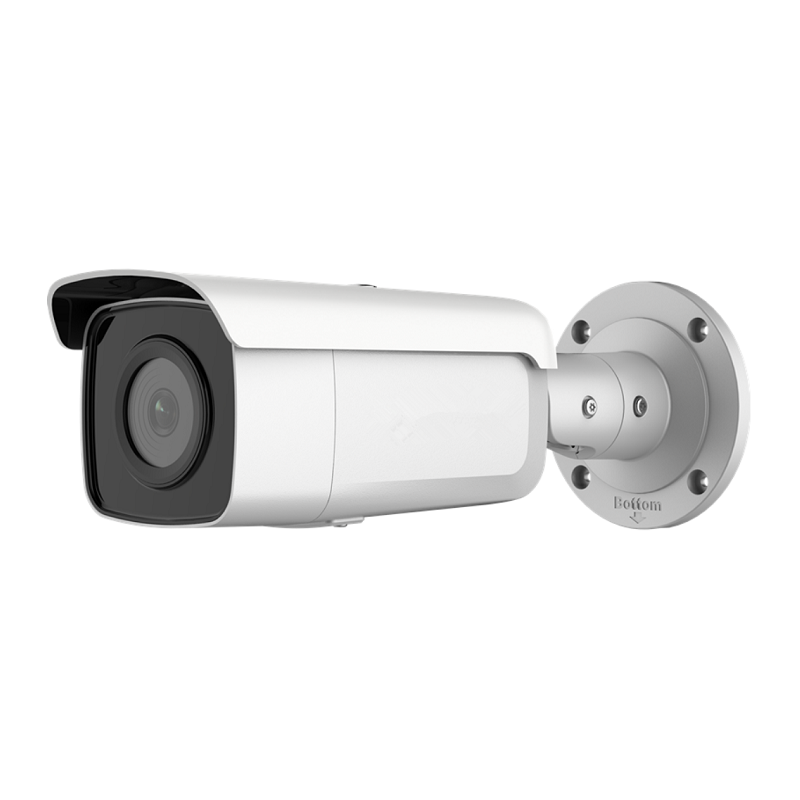

NC354-XB2 AcuSense 4 MP IR Fixed Bullet Network Camera

AcuSense 4 MP IR Fixed Bullet Network Camera

High quality imaging with 4 MP resolution
Excellent low-light performance with powered-by-DarkFighter technology
Efficient H.265+ compression technology
Clear imaging against strong back light due to 120 dB true WDR technology
False alarm reduction through human and vehicle target classification based on deep learning
Water and dust resistant (IP67)
3D DNR technology delivers clean and sharp images

Product Overview

The NC354-XB2 AcuSense bullet camera delivers superior 4 MP imaging for professional surveillance applications. DarkFighter technology enhances visibility in ultra-low light environments, while 120 dB True WDR maintains clarity in high-contrast conditions. Intelligent AI target classification reduces false alarms by accurately distinguishing humans and vehicles. The camera supports H.265+ compression for optimized network efficiency and on-board storage up to 256 GB. BLC, HLC, and 3D DNR improve image quality under challenging lighting. IR illumination provides reliable night monitoring up to 80 m. Robust metal construction with IP67 ingress protection ensures durability in outdoor environments. Compatible with ONVIF standards, it integrates seamlessly into modern surveillance systems.

Key Features

High-Resolution Imaging: 4 MP detailed visuals

Low-Light Performance: Powered by DarkFighter technology

True WDR: 120 dB for balanced exposure in high-contrast scenes

AI Target Classification: Minimizes false alarms by detecting humans and vehicles

Advanced Image Enhancement: BLC, HLC, and 3D DNR for crisp visuals

Long-Range IR: Up to 60–80 m for clear night monitoring

Durable Design: IP67-rated for outdoor use, robust metal body

Key Specifications

Image Sensor: 1/2.7″ Progressive Scan CMOS

Maximum Resolution: 2592 × 1944 @25/30 fps

Lens Type: 2.8 mm fixed, M12 mount

Power Supply: 12 VDC ±25%, PoE (802.3af, class 3)

Protection Level: IK10 & IP67

Angle Adjustment	Pan: 0° to 360° , tilt: 0° to 90° , rotate: 0° to 360°
API	ONVIF (PROFILE S , PROFILE G , PROFILE T) , ISAPI , SDK
Basic Event	Motion detection , video tampering alarm , exception (network disconnected , IP address conflict , illegal login , HDD full , HDD error) , scene change detection
Bit Rate Control	CBR/VBR
Client	CMS; Guarding Vision
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Day & Night	Day , Night , Auto , Schedule
Dimensions	Ø105 × 289.5 mm (4.1" × 11.4")
EMC	FCC (47 CFR Part 15 , Subpart B); CE-EMC (EN 55032: 2015 , EN 61000-3-2: 2014 , EN 61000-3-3: 2013 , EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6 , 2016); KC (KN 32: 2015 , KN 35: 2015)
Environment	CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Face Capture	Yes
General Function	Anti- flicker , heartbeat , mirror , privacy masks , flash log , password reset via e-mail , pixel counter
H.264+	Main Stream supports
H.265 Type	Main Profile
H.265+	Main Stream supports
Image Enhancement	BLC , HLC , 3D DNR
Image Parameters Switch	Yes
Image Sensor	1/2.7" Progressive Scan CMOS
Image Settings	Rotate mode , saturation , brightness , contrast , sharpness , gain , white balance adjustable by client software or web browser
IR Range	2I: Up to 60 m 4I: Up to 80 m
Lens Size	2.8mm
Lens Mount	M12
Linkage Method	Upload to NAS/memory card , notify surveillance center , trigger record , trigger capture
Main Stream	50Hz: 20fps (2592 × 1944) 25fps (2688 × 1520 , 2304 × 1296 , 1920 × 1080 , 1280 × 720) 60Hz: 20fps (2592 × 1944) 30fps (2688 × 1520 , 2304 × 1296 , 1920 × 1080 , 1280 × 720)
Material	Metal except for sunshield
Max Aperture	F1.4 Fixed
Max. Resolution	2592 × 1944
Min. Illumination	Color: 0.003 Lux @ (F1.4 , AGC ON)
Network Storage	microSD/SDHC/SDXC card (256 GB) local storage , and NAS (NFS , SMB/CIFS) , auto network replenishment (ANR) Together with high-end memory card , memory card encryption and health detection are supported
On-Board Storage	Built-in micro SD slot , up to 256 GB
Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Consumption	2I: 12 VDC , 0.63 A , max. 7.5 W PoE: (802.3af , 36 V to 57 V) , 0.25 A to 0.16 A , max. 9 W 4I: 12 VDC , 0.88 A , max. 10.5 W PoE: (802.3af , 36 V to 57 V) , 0.34 A to 0.21 A , max. 12 W
Power Supply	12 VDC ± 25% , reverse polarity protection PoE: 802.3af , class 3
Premier Protection	Line crossing detection , intrusion detection , region entrance detection , region exiting detection
Protection	Ingression protection: IP67 (IEC 60529-2013)
Protocol	TCP/IP , ICMP , HTTP , HTTPS , FTP , SFTP , DHCP , DNS , DDNS , RTP , RTSP , PPPoE , NTP , UPnP , SMTP , SNMP , IGMP , 802.1X , QoS , IPv6 , UDP , Bonjour , SSL/TLS
Region of Interest	1 fixed region for each stream
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Scalable Video Coding	Yes
Security	Password protection , complicated password , HTTPS encryption , IP address filter , Security Audit Log , basic and digest authentication for HTTP/HTTPS , TLS 1.2 , WSSE and digest authentication for ONVIF
Shutter Speed	1/3 s to 1/100 , 000 s
Simultaneous live view	Up to 6 channels
Slow Shutter	Yes
Smart Supplement Light	IR , Yes
Software Reset	Yes
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
Third Stream	50Hz: 25fps (1280 × 720 , 640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (1280 × 720 , 640 × 480 , 640 × 360 , 320 × 240)
User/Host Level	Up to 32 users. 3 user levels: administrator , operator and user
Video Bit Rate	32 Kbps to 8 Mbps
Wavelength	850 nm
Web Browser	Plug-in required live view: IE8+ , Chrome 41.0-44 , Firefox 30.0-51 , Safari 8.0-11 Plug-in free live view: Chrome 57.0+ , Firefox 52.0+
Web Client Language	33 languages
Weight	Approx. 1090 g (2.4 lb.)
Wide Dynamic Range	120 dB
Camera Style	Bullet

NC354-XB2 AcuSense 4 MP IR Fixed Bullet Network Camera

Click to enlarge

Add to wishlist

SKU: NC354-XB2 Categories: NETWORK CAMERAS, WINIC

Description

High-Resolution Imaging: 4 MP detailed visuals
Low-Light Performance: Powered by DarkFighter technology
True WDR: 120 dB for balanced exposure in high-contrast scenes
AI Target Classification: Minimizes false alarms by detecting humans and vehicles
Advanced Image Enhancement: BLC, HLC, and 3D DNR for crisp visuals
Long-Range IR: Up to 60–80 m for clear night monitoring
Durable Design: IP67-rated for outdoor use, robust metal body

Image Sensor: 1/2.7″ Progressive Scan CMOS
Maximum Resolution: 2592 × 1944 @25/30 fps
Lens Type: 2.8 mm fixed, M12 mount
Power Supply: 12 VDC ±25%, PoE (802.3af, class 3)
Protection Level: IK10 & IP67

Additional information

Angle Adjustment	Pan: 0° to 360° , tilt: 0° to 90° , rotate: 0° to 360°
API	ONVIF (PROFILE S , PROFILE G , PROFILE T) , ISAPI , SDK
Basic Event	Motion detection , video tampering alarm , exception (network disconnected , IP address conflict , illegal login , HDD full , HDD error) , scene change detection
Bit Rate Control	CBR/VBR
Client	CMS; Guarding Vision
Communication Interface	1 RJ45 10M/100M self-adaptive Ethernet port
Compression	Main stream: H.265/H.264 Sub-stream: H.265/H.264/MJPEG Third stream: H.265/H.264
Day & Night	Day , Night , Auto , Schedule
Dimensions	Ø105 × 289.5 mm (4.1" × 11.4")
EMC	FCC (47 CFR Part 15 , Subpart B); CE-EMC (EN 55032: 2015 , EN 61000-3-2: 2014 , EN 61000-3-3: 2013 , EN 50130-4: 2011 +A1: 2014); RCM (AS/NZS CISPR 32: 2015); IC (ICES-003: Issue 6 , 2016); KC (KN 32: 2015 , KN 35: 2015)
Environment	CE-ROHS (2011/65/EU); WEEE (2012/19/EU); REACH (Regulation (EC) No 1907/2006)
Face Capture	Yes
General Function	Anti- flicker , heartbeat , mirror , privacy masks , flash log , password reset via e-mail , pixel counter
H.264+	Main Stream supports
H.265 Type	Main Profile
H.265+	Main Stream supports
Image Enhancement	BLC , HLC , 3D DNR
Image Parameters Switch	Yes
Image Sensor	1/2.7" Progressive Scan CMOS
Image Settings	Rotate mode , saturation , brightness , contrast , sharpness , gain , white balance adjustable by client software or web browser
IR Range	2I: Up to 60 m 4I: Up to 80 m
Lens Size	2.8mm
Lens Mount	M12
Linkage Method	Upload to NAS/memory card , notify surveillance center , trigger record , trigger capture
Main Stream	50Hz: 20fps (2592 × 1944) 25fps (2688 × 1520 , 2304 × 1296 , 1920 × 1080 , 1280 × 720) 60Hz: 20fps (2592 × 1944) 30fps (2688 × 1520 , 2304 × 1296 , 1920 × 1080 , 1280 × 720)
Material	Metal except for sunshield
Max Aperture	F1.4 Fixed
Max. Resolution	2592 × 1944
Min. Illumination	Color: 0.003 Lux @ (F1.4 , AGC ON)
Network Storage	microSD/SDHC/SDXC card (256 GB) local storage , and NAS (NFS , SMB/CIFS) , auto network replenishment (ANR) Together with high-end memory card , memory card encryption and health detection are supported
On-Board Storage	Built-in micro SD slot , up to 256 GB
Operating Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Power Consumption	2I: 12 VDC , 0.63 A , max. 7.5 W PoE: (802.3af , 36 V to 57 V) , 0.25 A to 0.16 A , max. 9 W 4I: 12 VDC , 0.88 A , max. 10.5 W PoE: (802.3af , 36 V to 57 V) , 0.34 A to 0.21 A , max. 12 W
Power Supply	12 VDC ± 25% , reverse polarity protection PoE: 802.3af , class 3
Premier Protection	Line crossing detection , intrusion detection , region entrance detection , region exiting detection
Protection	Ingression protection: IP67 (IEC 60529-2013)
Protocol	TCP/IP , ICMP , HTTP , HTTPS , FTP , SFTP , DHCP , DNS , DDNS , RTP , RTSP , PPPoE , NTP , UPnP , SMTP , SNMP , IGMP , 802.1X , QoS , IPv6 , UDP , Bonjour , SSL/TLS
Region of Interest	1 fixed region for each stream
Safety	UL (UL 60950-1); CB (IEC 60950-1:2005 + Am 1:2009 + Am 2:2013); CE-LVD (EN 60950-1:2005 + Am 1:2009 + Am 2:2013); BIS (IS 13252(Part 1):2010+A1:2013+A2:2015); LOA (IEC/EN 60950-1)
Scalable Video Coding	Yes
Security	Password protection , complicated password , HTTPS encryption , IP address filter , Security Audit Log , basic and digest authentication for HTTP/HTTPS , TLS 1.2 , WSSE and digest authentication for ONVIF
Shutter Speed	1/3 s to 1/100 , 000 s
Simultaneous live view	Up to 6 channels
Slow Shutter	Yes
Smart Supplement Light	IR , Yes
Software Reset	Yes
Storage Conditions	-30 °C to 60 °C (-22 °F to 140 °F). Humidity 95% or less (non-condensing)
Sub‐Stream	50Hz: 25fps (640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (640 × 480 , 640 × 360 , 320 × 240)
Third Stream	50Hz: 25fps (1280 × 720 , 640 × 480 , 640 × 360 , 320 × 240) 60Hz: 30fps (1280 × 720 , 640 × 480 , 640 × 360 , 320 × 240)
User/Host Level	Up to 32 users. 3 user levels: administrator , operator and user
Video Bit Rate	32 Kbps to 8 Mbps
Wavelength	850 nm
Web Browser	Plug-in required live view: IE8+ , Chrome 41.0-44 , Firefox 30.0-51 , Safari 8.0-11 Plug-in free live view: Chrome 57.0+ , Firefox 52.0+
Web Client Language	33 languages
Weight	Approx. 1090 g (2.4 lb.)
Wide Dynamic Range	120 dB
Camera Style	Bullet

Download

Datasheet

NC354-XB2
