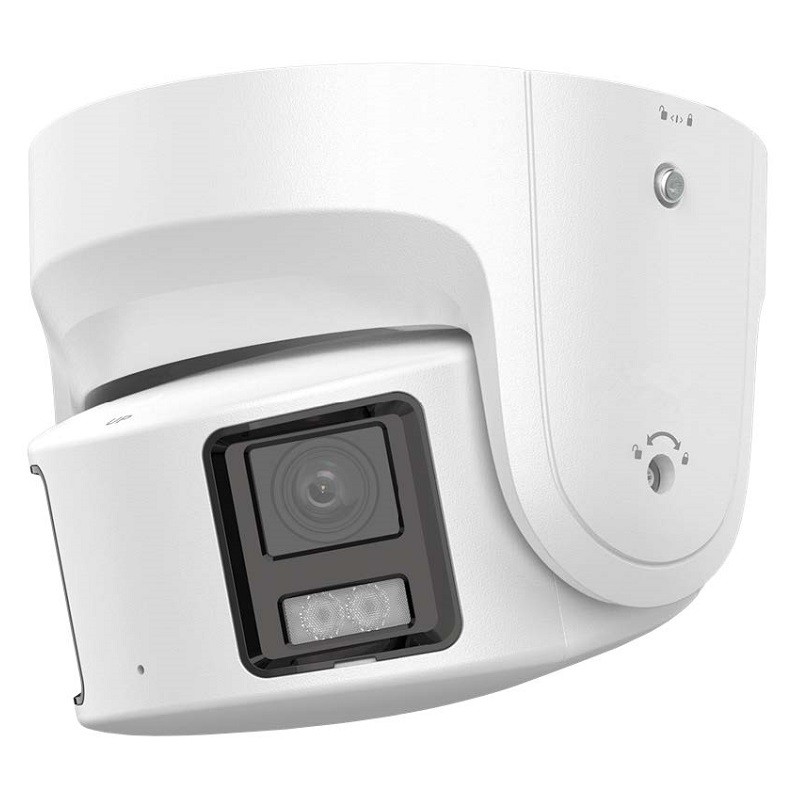

NC458G2-PDL/LU 8 MP Panoramic Fixed Turret Network Camera

8 MP Panoramic Fixed Turret Network Camera

  • High quality imaging with 8 MP resolution
  • One image that presents all the scenes covered by the camera
  • 24/7 colorful imaging
  • Efficient H.265+ compression technology
  • Clear imaging against strong back light due to 130 dB WDR technology
  • Focus on human and vehicle classification based on deep learning
  • Active strobe light and audio alarm to warn intruders off
  • Water and dust resistant (IP67)
SKU: NC458G2-PDL/LU Categories: ,
Description

Product Overview

The NC458G2-PDL/LU is a high-resolution 8 MP panoramic turret camera designed to cover wide areas with a single image. Featuring ColorVu technology, it delivers bright and colorful video even at night. Advanced 1/1.8″ dual CMOS sensors capture maximum detail while H.265+ compression conserves bandwidth and storage. The camera supports 130 dB WDR, maintaining clarity under strong backlight conditions. AI-powered human and vehicle classification improves detection accuracy and minimizes false alarms. Integrated strobe light and audio alarm provide real-time deterrence for intruders. Built-in microphone and speaker allow two-way audio communication. Part of the ColorVu, Pro, and Panoramic Series, this camera is ideal for large-area monitoring with intelligent detection and vibrant imaging.

Key Features

  • Panoramic 180° Horizontal View: Captures an entire scene with a single camera
  • ColorVu 24/7 Imaging: Continuous full-color video for round-the-clock surveillance
  • AI Target Detection: Human and vehicle classification for accurate alerts
  • Smart Strobe and Audio Alarm: Deterrent system for enhanced security
  • H.265+ Compression: High-quality imaging with reduced storage use
  • Wide Dynamic Range: 130 dB WDR balances exposure in challenging lighting
  • Built-in Audio: Microphone and speaker support real-time communication



Key Specifications

  • Image Sensor: 2 × 1/1.8″ Progressive Scan CMOS
  • Resolution: 8 MP (5120 × 1440)
  • Lens: 4 mm fixed, F1.0 aperture
  • Camera Style: Turret
Additional information
Image Sensor

2 × 1/1.8" Progressive Scan CMOS

Camera Resolutions

Camera Style

Lens Type

Lens Size

Angle Adjustment

Pan: -30° to 30°

,

tilt: -75° to 75°

Audio Type

Mono sound

Day & Night

Day

,

Night

,

Auto

,

Schedule

DORI Distance

4 mm

,

D: 77 m

,

O: 30 m

,

R: 15 m

,

I: 7 m

Focal Length

Horizontal FOV: 180° ± 10° Vertical FOV: 44°

Image Enhancement

BLC

,

HLC

,

3D DNR

Image Parameters Switch

Yes

Image Settings

saturation

,

brightness

,

contrast

,

sharpness

,

gain

,

white balance

,

adjustable by client software or web browser

Lens Mount

M16

Main Stream

When WDR is On: 50 Hz: 12.5 fps (5120 × 1440) 60 Hz: 15 fps (5120 × 1440) When WDR is Off: 50 Hz: 20 fps (5120 × 1440) 60 Hz: 20 fps (5120 × 1440)

Material

Base: metal

,

cover: metal

Max Aperture

F1.0

Max. Resolution

5120 × 1440

Min. Illumination

Color: 0.0005 Lux @ (F1.0

,

AGC ON)

,

0 Lux with light

On-Board Storage

Built-in memory card slot

,

support microSD/microSDHC/microSDXC/TF card

,

up to 256 GB

Power

12 VDC ± 25%

,

0.79 A

,

max. 9.5 W

,

Ø5.5 mm coaxial power plug

,

PoE: 802.3af

,

Class 3

,

36 V to 57 V

,

0.29 A to 0.18 A

,

max. 10.5 W

Premier Protection

Line crossing

,

intrusion

,

region entrance

,

region exiting (support alarm triggering by specified target types (human and vehicle))

Shutter Time

1/3 s to 1/100

,

000 s

Supplement Light Range

Up to 30 m

Supplement Light Type

White Light

Video Bit Rate

32 Kbps to 16 Mbps

Dimensions

Ø155 mm × 155.3 mm (Ø6.1" × 6.1")

Weight

Approx. 1110 g (2.4 lb.)

Protection

IP67: IEC 60529-2013

Wide Dynamic Range

130 dB

Download

Datasheet
