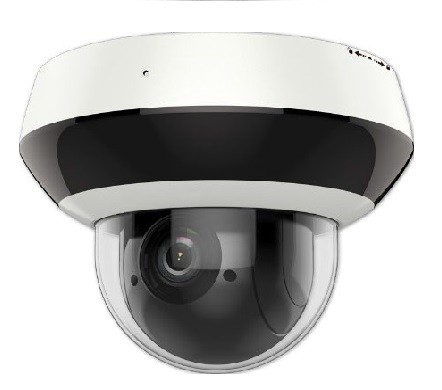

NP114-IR/4X 4 MP 4× IR PTZ Network Camera

Product Overview

NP114-IR/4X is a versatile PTZ network camera designed for both indoor and outdoor surveillance. Its 1/2.8″ progressive scan CMOS sensor provides crisp 4 MP resolution, while 4× optical zoom brings distant subjects closer. The camera supports 16× digital zoom and a 20-meter IR range for night-time monitoring. With 120 dB WDR, clear images are maintained even in high-contrast scenes. Pan and tilt capabilities allow coverage of multiple zones of interest with ease. Built-in audio facilitates two-way communication or ambient sound capture. The camera is built to withstand tough conditions with IP66 and IK10 protection. Ideal for urban surveillance, commercial sites, and critical infrastructure monitoring.

Key Features

• Ultra-High Definition 4 MP Imaging: Captures detailed visuals using a 1/2.8″ Progressive Scan CMOS sensor, producing crisp 1920 × 1080 resolution for effective monitoring.
• Dynamic Pan-Tilt Flexibility: Full 360° pan and -15°~90° tilt range enable operators to cover multiple zones of interest and respond quickly to dynamic situations.
• Precision Zooming: 4× optical zoom combined with 16× digital zoom allows close inspection of subjects across expansive areas, ensuring no detail is missed.
• Advanced Smart Detection: Equipped with 120 dB WDR and IR cut filter, the camera maintains clear images even in challenging lighting conditions, reducing false alarms.
• Reliable Night Surveillance: Up to 20 m IR range ensures crisp and consistent visibility in complete darkness, supporting 24/7 monitoring.
• Intelligent Audio Integration: Built-in microphone captures real-time sounds for enhanced security awareness and event verification.
• Rugged Construction: IP66 weatherproof and IK10 vandal-proof housing ensures reliable performance in harsh outdoor environments.

Key Specifications

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination: Color: 0.005 Lux @ F1.5 (AGC ON); B/W: 0.001 Lux @ F1.5, 0 Lux with IR
• Video Resolution: 4 MP (1920 × 1080)
• Zoom Capability: 4× optical, 16× digital
• Protection Rating: IP66, IK10
