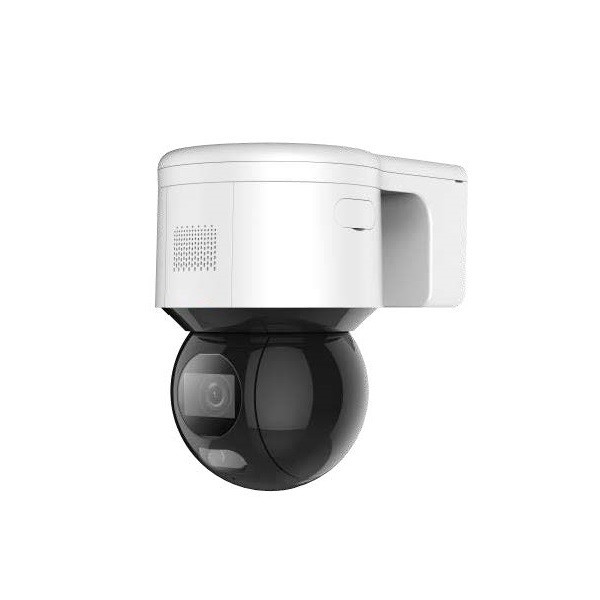

NP3A4-LS 4MP Network PT Camera with AI Analytics

Product Overview

NP3A4-LS combines high-resolution imaging, AI-driven analytics, and active deterrence features to create an intelligent surveillance solution for modern security environments. Equipped with a 1/1.8″ progressive scan CMOS sensor, the camera captures sharp 4 MP video at up to 2560 × 1440 resolution and 30 fps. Its ultra-large F1.0 aperture and extremely low illumination capability enable full-color imaging even under very dim lighting conditions. With built-in white light illumination reaching up to 30 meters, the camera maintains clear color footage throughout the night. Advanced deep learning algorithms focus on human and vehicle classification, significantly reducing false alarms. The system also supports multi-face detection and automatic best-shot face capture, with up to five faces captured simultaneously. A built-in microphone and speaker allow audio monitoring and communication, while the linked audible and visual alarm can actively warn intruders. Enhanced image technologies such as 120 dB WDR, 3D DNR, HLC, and demist ensure consistent image clarity in complex environments.

Key Features

• 4 MP High-Definition Imaging: Captures detailed surveillance footage at up to 2560 × 1440 resolution using a 1/1.8″ progressive scan CMOS sensor.
• Ultra-Low Light Color Performance: Large F1.0 aperture and high-sensitivity sensor enable color imaging at only 0.0005 Lux.
• 24/7 Full-Color Monitoring: Integrated white light illumination provides continuous color video with up to 30 m coverage.
• Deep Learning Target Analytics: AI-based algorithms accurately classify human and vehicle targets to improve detection efficiency.
• Intelligent Face Capture: Automatically selects the best face snapshot and supports simultaneous capture of up to five faces.
• Active Audio-Visual Deterrence: Built-in microphone, speaker, and linked flashing light alarm provide real-time warnings and communication.
• Advanced Image Optimization: 120 dB WDR, 3D DNR, HLC, and demist technologies enhance clarity in challenging lighting conditions.

Key Specifications

• Image Sensor: 1/1.8″ Progressive Scan CMOS
• Maximum Resolution: 2560 × 1440 (4 MP) @ 30 fps
• Minimum Illumination: 0.0005 Lux @ F1.0 (Color)
• White Light Distance: Up to 30 m
• Protection Rating: IP66
