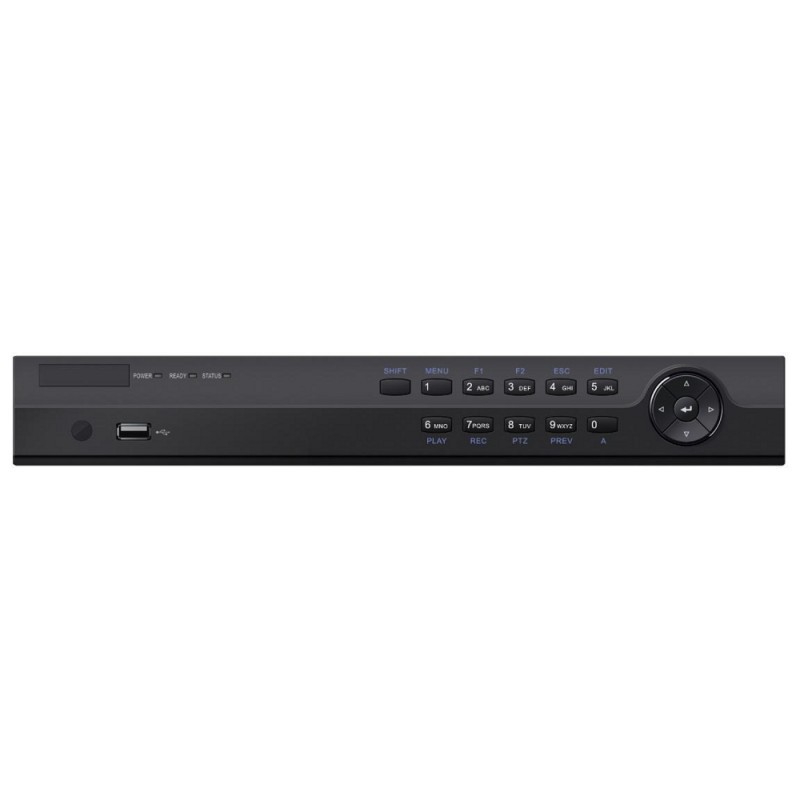

NR21P6-16/D 16-ch 2 SATA 1U 16 PoE 4K NVR

Product Overview

The NR21P6-16/D is a 1U 16-channel NVR engineered for medium-scale surveillance applications, offering high-definition recording with multi-format support including H.265+ for reduced storage consumption. It handles up to 160 Mbps incoming bandwidth, with decoding capability for 1 channel at 8 MP, 3 channels at 4 MP, or 6 channels at 1080p. The recorder integrates 16 PoE ports for easy camera installation and management, while dual HDMI and VGA outputs—including 4K HDMI output—ensure flexible viewing options. Advanced smart features such as Motion Detection 2.0, line crossing, and intrusion detection provide proactive security monitoring. Equipped with 2 SATA HDD interfaces supporting up to 8 TB per disk, it allows efficient storage expansion, smart search, and smooth playback, making it ideal for offices, retail spaces, and other professional environments.

Key Feature

• Up to 16-ch IP camera inputs
• H.265+/H.265/H.264+/H.264 video formats
• Up to 1-ch@8 MP/3-ch@4 MP/6-ch@1080p decoding capacity
• Up to 160 Mbps incoming bandwidth

Professional and Reliability

• H.265+ compression effectively reduces the storage space by up to 75%

HD Video Output

• Provide simultaneous HDMI and VGA outputs
• HDMI video output at up to 4K resolution

Storage and Playback

• 2 SATA interfaces for HDD connection (up to 8 TB capacity per HDD)
• Smart search/smart playback to improve the playback efficiency

Smart Function

• 4-ch Motion Detection 2.0
• Support multiple VCA (Video Content Analytics) events
• Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.)

Network & Ethernet Access

• 16 independent PoE network interfaces
• 1 self-adaptive 10/100/1000 Mbps Ethernet interface
• Guarding Vision for easy network management
