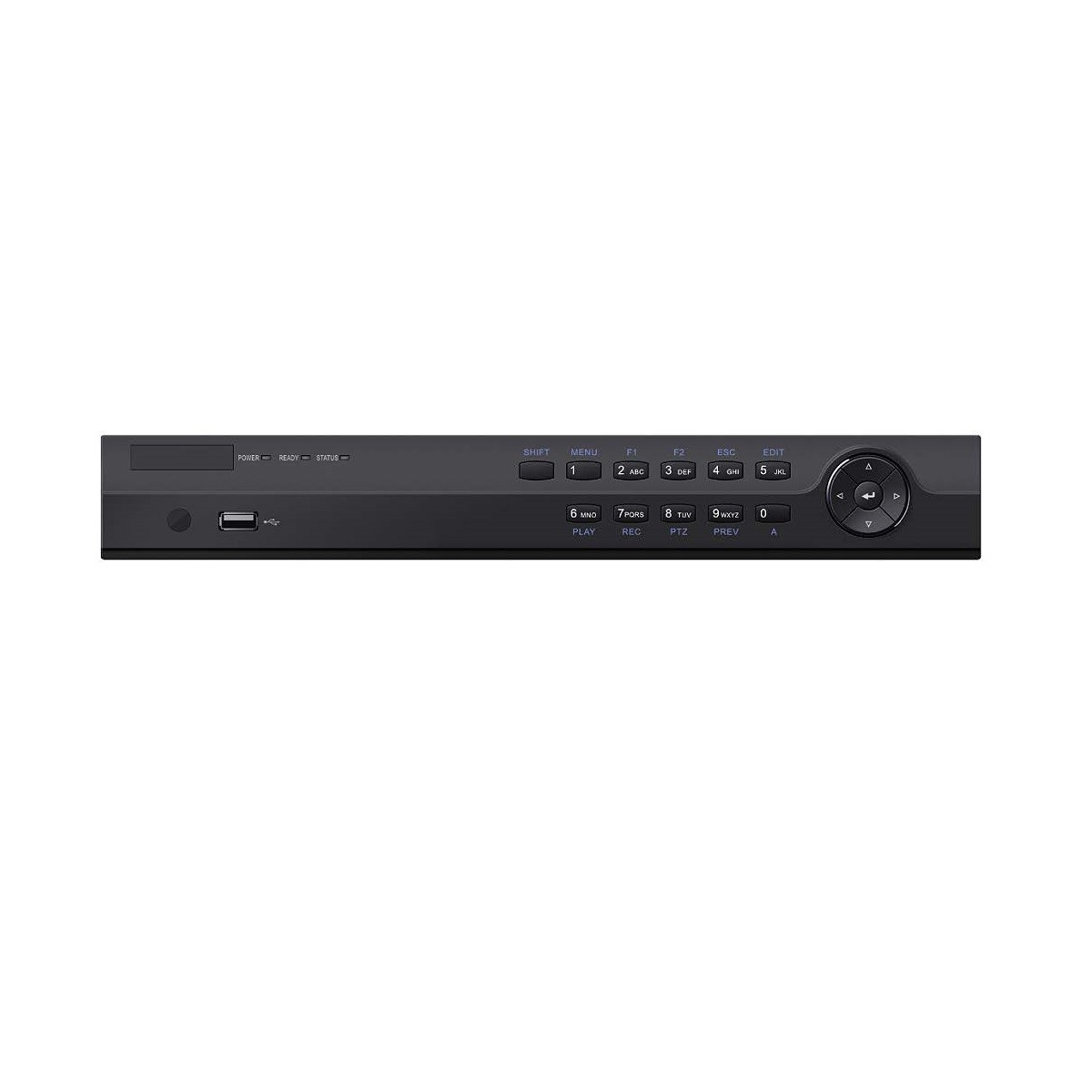

NR33P8-8/D 8 Channel 4K 80M 1U 8 PoE AcuSense 4K NVR
8 Channel 4K 80M 1U 8 PoE AcuSense 4K NVR
- Up to 8-ch IP camera inputs, plug & play with 8 power-over-Ethernet (PoE) interfaces
- H.265+/H.265/H.264+/H.264 video formats
- Up to 2-ch@12 MP or 3-ch@8 MP or 6-ch@4 MP or 12-ch@1080p decoding capacity
- Up to 80 Mbps incoming bandwidth
- Adopt AcuSense technology to minimize manual effort and security costs
- Smart Function: All channels support Motion Detection 2.0
- 2-ch video analysis for human and vehicle recognition to reduce false alarm
- 1-ch facial recognition for video stream, or 4-ch facial recognition for face picture
- Smart search for the selected area in the video, and smart playback to improve the playback efficiency
Description
Product Overview
The NR33P8-8/D AcuSense NVR delivers professional 4K monitoring for up to 8 IP cameras. Its 8 PoE ports simplify installation while supplying power to cameras directly through Ethernet. With flexible decoding options, it can handle up to 12 MP video streams for high-detail surveillance. AcuSense technology enables human and vehicle detection to reduce false alarms and streamline security operations. Facial recognition is supported on one video stream or up to four face images simultaneously. Smart search and playback functions allow quick retrieval of events. Supporting H.265+/H.265/H.264+/H.264 formats, this recorder balances storage efficiency and video quality for offices, retail, or residential monitoring.
Key Features
- 8 PoE Channels: Plug-and-play IP camera connectivity with power supplied via Ethernet.
- Flexible Decoding: Supports 12 MP, 8 MP, 4 MP, and 1080p video streams.
- AcuSense AI Analytics: Human and vehicle detection reduces false alarms.
- Facial Recognition: 1-channel video stream or 4-channel face image recognition.
- Motion Detection 2.0: Intelligent detection across all channels.
- Smart Search & Playback: Quickly locate events in recorded footage.
- Optimized Bandwidth: Up to 80 Mbps incoming bandwidth for smooth recording.
Key Specifications
- Camera Input: Up to 8 IP channels with 8 PoE ports.
- Video Compression: H.265+/H.265/H.264+/H.264.
- Decoding Capacity: 2-ch @12 MP, 3-ch @8 MP, 6-ch @4 MP, 12-ch @1080p.
- Incoming Bandwidth: Up to 80 Mbps.
- Smart Functions: Motion detection, human & vehicle recognition, facial recognition.
Additional information
| Channel | |
|---|---|
| Facial Detection and Analytics |
Face picture comparison ,human face capture ,face picture search |
| Face Picture Library |
Up to 16 face picture libraries ,with up to 20 ,000 face pictures in total(each picture≤4 MB ,total capacity≤1GB) |
| Face Picture Comparison |
4-ch face picture comparison alarm |
| IP Video Input |
8-ch |
| Incoming Bandwidth |
80Mbps |
| Outgoing Bandwidth |
160Mbps |
| HDMI Output |
1-ch ,4K(3840×2160)/30Hz ,2K(2560×1440)/60Hz ,1920×1080/60Hz ,1600× 1200/60Hz ,1280×1024/60Hz ,1280×720/60Hz ,1024×768/60Hz |
| VGA Output |
1-ch ,1920×1080/60Hz ,1280×1024/60Hz ,1280×720/60Hz |
| Video Output Mode |
HDMI/VGA independent output |
| Audio Output |
1-ch ,RCA(2.0Vp-p ,1KΩ ,using the audio input) |
| Two-Way Audio |
1-ch ,RCA(Linear ,1KΩ) |
| Decoding Format |
H.265/H.265+/H.264+/H.264 |
| Synchronous playback |
8-ch |
| Interface |
8 ,RJ-4510/100Mbps self-adaptive Ethernet interface |
| Power |
≤80W |
| HDD Support | |
| Capacity |
Up to 10TB capacity for each HDD |
| USB Interface |
Front panel:1×USB2.0;Rear panel:1×USB2.0 |
| Power Supply |
48VDC ,2.5A |
| Consumption |
≤15W(without HDD ,and PoE off) |
| Dimension(W×D×H) |
385mm×315mm×52mm(15.2"×12.4"×2.0") |
| Weight |
≤3kg(without HDD ,6.6lb.) |
