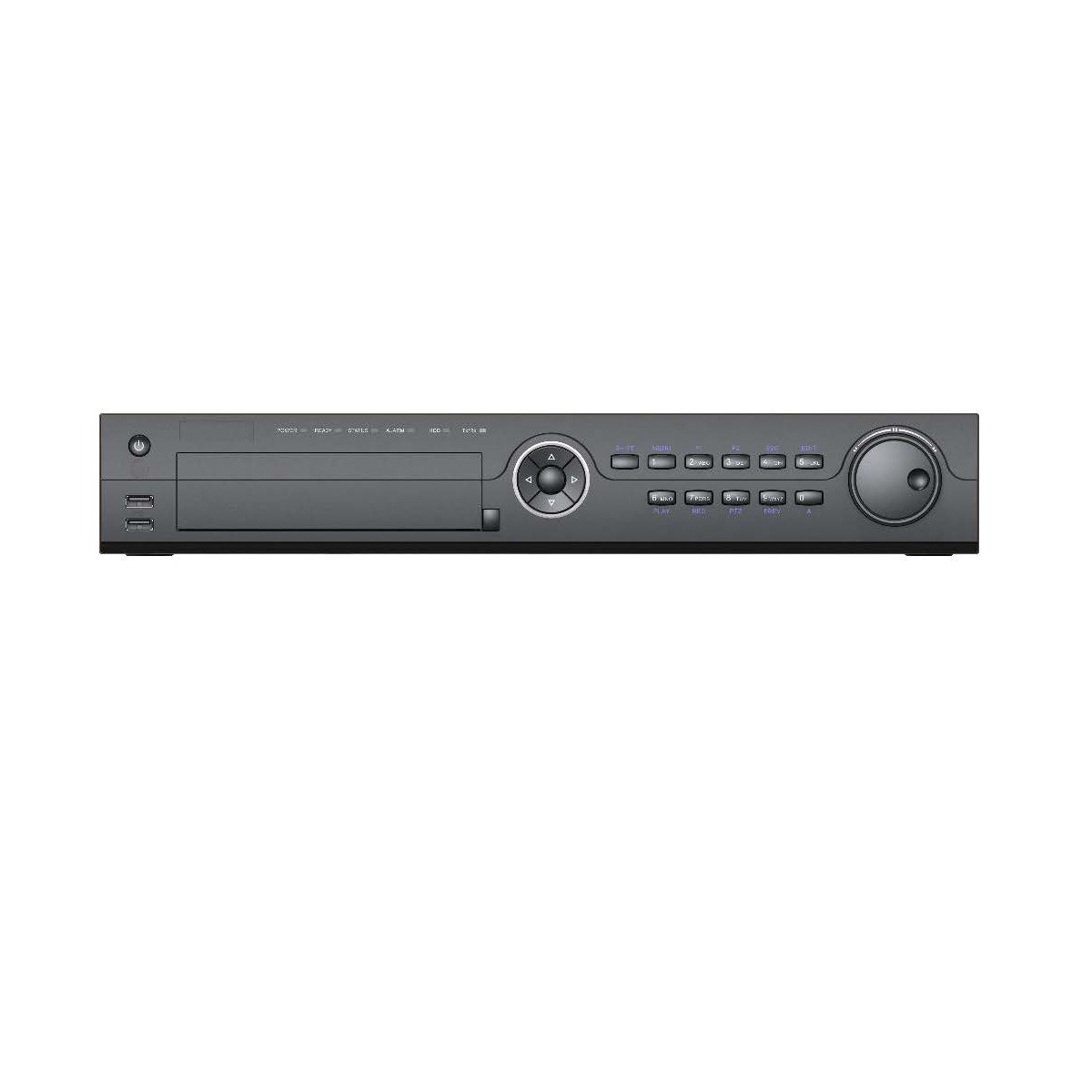

NR520-32 Embedded M Series 8K 32-Channel Network Video Recorder
Click to enlarge
WINIC

NR520-32 Embedded M Series 8K 32-Channel Network Video Recorder

Embedded M Series 8K 32-Channel Network Video Recorder

  • H.265+/H.265/H.264+/H.264 video formats
  • Up to 32-ch IP camera inputs
  • Up to 32-ch@1080p decoding capacity
  • Up to 320 Mbps incoming bandwidth
Add to wishlist
SKU: NR520-32 Categories: ,
Description

Product Overview

The NR520-32 Embedded M Series NVR provides high-performance 8K surveillance for up to 32 IP cameras. With ultra HD mode enabled, it supports up to 8 channels at 32MP or 24MP resolution, delivering exceptional detail for mission-critical monitoring. The system features H.265+/H.265/H.264+/H.264 compression for optimized storage usage. Simultaneous HDMI1/VGA output with an additional independent HDMI2/VGA port ensures flexible multi-display configurations. Audio input and output support two-way communication. With 320 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth, the recorder handles high-resolution streams efficiently. Synchronous playback supports 16 channels, and remote connections allow up to 128 users for centralized management.

Key Features

  • Ultra HD 8K Monitoring: Supports up to 32MP per channel in ultra HD mode for detailed surveillance.
  • Flexible Decoding: Up to 32 channels at 1080p, ensuring smooth playback across all feeds.
  • High Bandwidth Management: 320 Mbps incoming and 400 Mbps outgoing bandwidth for reliable performance.
  • Multi-display Output: HDMI1/VGA simultaneous output, HDMI2/VGA independent output for flexible viewing.
  • Audio & Two-Way Communication: 1-channel audio output with 1-channel two-way audio support.
  • Synchronous Playback: Review up to 16 channels simultaneously for efficient event analysis.
  • Scalable Storage: 4 HDD support with up to 14 TB per disk.



Key Specifications

  • Camera Input: 32 IP channels, up to 32 MP per channel (ultra HD mode).
  • Video Compression: H.265+/H.265/H.264+/H.264.
  • Decoding Capacity: Up to 32 channels at 1080p.
  • Incoming/Outgoing Bandwidth: 320 Mbps incoming, 400 Mbps outgoing.
  • HDD Support: 4 SATA drives, up to 14 TB per disk.
Additional information
Channel

IP Video Input

32-ch Upto32MP resolution *:After ultra HD resolution mode is enabled

,

the NVR supports up to 8-ch32MP/24 MP IP video inputs.
Incoming Bandwidth

320Mbps
Outgoing Bandwidth

400Mbps
Video Output Mode

HDMI1/VGA simultaneous output

,

HDMI2/VGA independent output
CVBS Output

1-ch

,

BNC(1.0Vp-p

,

75Ω)

,

resolution:PAL:704×576

,

NTSC:704×480
Audio Output

1-ch

,

RCA(Linear

,

1KΩ)
Two-Way Audio

1-ch

,

RCA(2.0Vp-p

,

1KΩ

,

using the audio input)
Decoding Format

H.265+/H.265/H.264+/H.264
Synchronous Playback

16-ch
Remote Connection

128
eSATA

1 eSATA interface
HDD Support

Capacity

Up to 14TB capacity for each disk
Serial Interface

2 RS-485 (half-duplex)

,

1 RS-232
Power Supply

100 to 240 VAC

,

50 to 60 Hz
Consumption

≤ 15W(without HDD)
Chassis

19-inch rack-mounted 1.5U chassis
Dimension (W × D ×H)

445 × 400 ×75 mm(17.5"×15.7" × 3.0")
Weight

≤ 5kg(without HDD

,

11 lb.)
