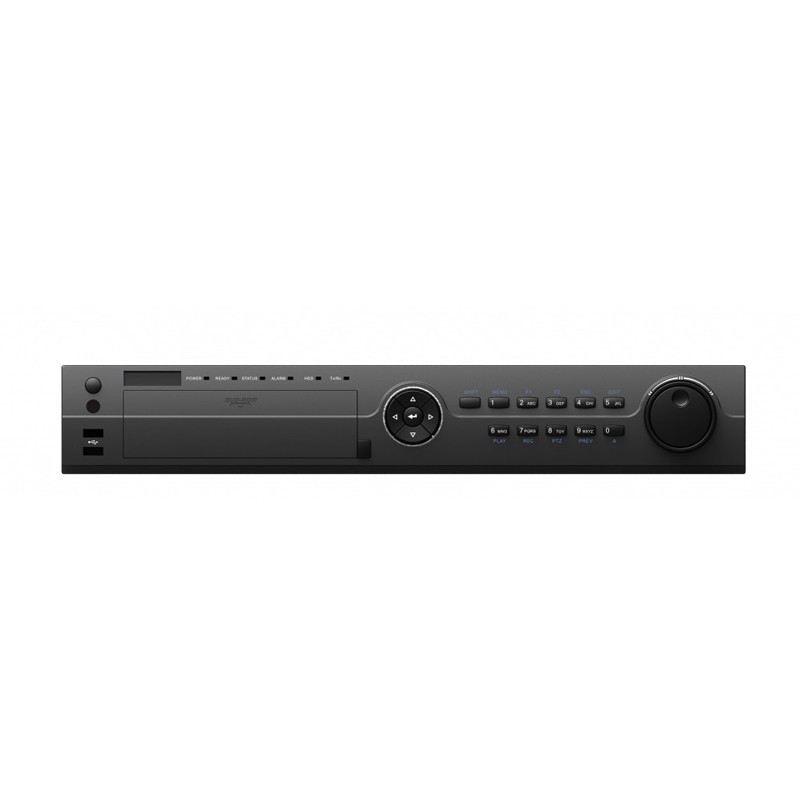

NR52P24-32 32-ch 1.5U 24 PoE 8K AcuSense NVR
Click to enlarge
WINIC

NR52P24-32 32-ch 1.5U 24 PoE 8K AcuSense NVR

32-ch 1.5U 24 PoE 8K AcuSense NVR

  • 32-channel 8K AcuSense NVR with advanced PoE integration.
  • Supports H.265+/H.265/H.264+/H.264 compression for efficient storage.
  • Up to 32 IP camera inputs with flexible decoding options.
  • Dual 4K HDMI outputs for ultra-high-definition display.
  • Integrated VCA analytics including motion detection, intrusion, and people counting.
  • POS overlay and triggered recording enhance operational monitoring.
Add to wishlist
SKU: NR52P24-32 Categories: ,
Description

Product Overview

The NR52P24-32 AcuSense NVR delivers professional-grade 8K surveillance for medium-to-large installations. Supporting up to 32 IP cameras, it provides up to 32 channels at 1080p decoding capacity and 320 Mbps incoming bandwidth. The system incorporates H.265+ dual-stream recording to optimize storage while reducing network load. Security features include TLS-encrypted streams and dual verification for playback and downloads. Users can leverage advanced smart functions such as VCA analytics, heat maps, ANPR, and people counting. POS data can be overlaid on live and playback video with automated triggers. Network management is simplified through 24 PoE ports, a self-adaptive Gigabit Ethernet interface, Hik-Connect, and DDNS support.

Key Features

Professional and Reliability

  • H.265+ compression effectively reduces the storage space by up to 75%
  • Dual-stream recording saves bandwidth
  • Adopt stream over TLS encryption technology which provides more secure stream transmission service
  • Support double verification for playback and downloading

HD Video Output

  • Provide independent HDMI and VGA outputs
  • HDMI video output at up to 8K resolution
  • Dual 4K HDMI output resolution

Storage and Playback

  • Up to 4 SATA interfaces for HDD connection
  • 16-ch synchronous playback

Smart ＆ POS Function

  • Support multiple VCA (Video Content Analytics) events
  • Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
    people counting
  • POS information overlay on live view and playback, and POS triggered recording and alarm

Network ＆ Ethernet Access

  • 24 independent PoE network interfaces
  • 1 self-adaptive 10/100/1000 Mbps Ethernet interface
  • Hik-Connect ＆ DDNS (Dynamic Domain Name System) for easy network management

Smooth streaming technology

  • Support web access without plug-in
Additional information
Channel

IP Video Input

32-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled

,

the NVR supports up to 8-ch 32 MP/24 MP IP video inputs.
Incoming Bandwidth

320Mbps
Outgoing Bandwidth

400Mbps
VGA Output

1920×1080/60Hz

,

1600×1200/60Hz

,

1280×1024/60Hz

,

1280×720/60Hz

,

1024× 768/60Hz
Video Output Mode

HDMI1/VGA simultaneous output

,

HDMI2/VGA independent output
CVBS Output

1-ch

,

BNC(1.0Vp-p

,

75Ω)

,

resolution:PAL:704×576

,

NTSC:704×480
Audio Output

1-ch

,

RCA(Linear

,

1KΩ)
Two-Way Audio

1-ch

,

RCA(2.0Vp-p

,

1KΩ

,

usingtheaudioinput)
Decoding Format

H.265+/H.265/H.264+/H.264
Synchronous Playback

16-ch
Decoding Capability

2-ch@32MP(30fps)/2-ch@24MP(30fps)/4-ch@12MP(20fps)/8-ch@8MP(25 fps)/16-ch@4MP(30fps)/32-ch@1080p(30fps)
Remote Connection

128
Interface

24

,

RJ-4510/100Mbps self-adaptive Ethernet interface
Power

≤210W
Standard

IEEE802.3af/at
eSATA

1 eSATA interface
HDD Support

Capacity

Up to 14 TB capacity for each disk
Serial Interface

2RS-485(half-duplex)

,

1RS-232
USB Interface

Front panel:2×USB2.0;Rear panel:1×USB3.0
Power Supply

100 to 240 VAC

,

50 to 60 Hz
Consumption

≤15W(without HDD and PoE off)
Dimension(W×D×H)

445×400×75mm(17.5"×15.7"×3.0")
Weight

≤ 5 kg (without HDD

,

11 lb.)
