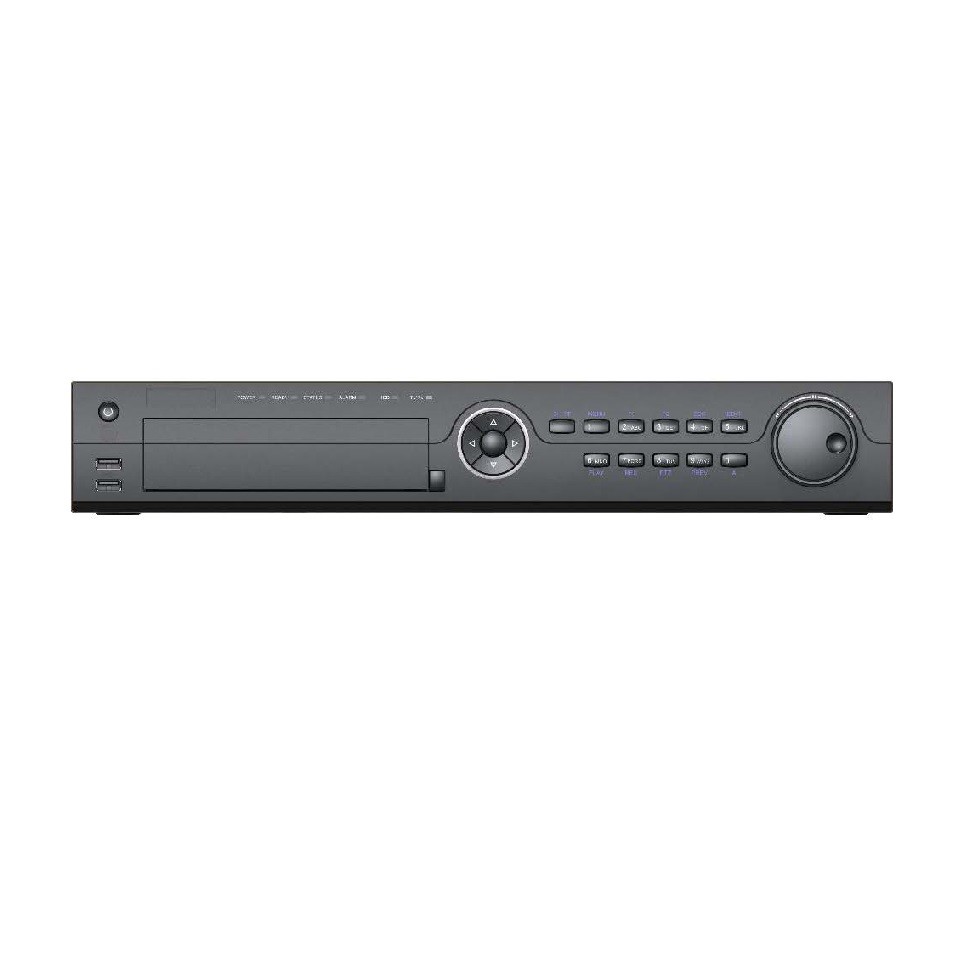

NR52P6-16 16-ch 1.5U 16 PoE 8K Accsense NVR
Embedded 16ch 8K Plug & Play NVR
- 16-channel 8K AcuSense NVR designed for intelligent surveillance deployments.
- Integrated 16 PoE interfaces enable plug-and-play camera installation.
- Supports H.265+ compression for efficient storage management.
- Advanced VCA analytics and POS integration enhance operational monitoring.
- Dual HDMI outputs deliver ultra-high-definition video display.
- Secure stream transmission and reliable system architecture ensure stable performance.
Description
Product Overview
The NR52P6-16 AcuSense NVR provides advanced 8K surveillance capabilities for up to 16 IP cameras. With decoding support of up to 16 channels at 4 MP and an incoming bandwidth of 256 Mbps, it efficiently manages high-resolution video streams. Integrated PoE ports simplify deployment by supplying power and network connectivity through a single cable. The recorder supports H.265+ compression and dual-stream recording to reduce bandwidth and storage consumption. Security features such as TLS-encrypted streaming and dual verification for playback and downloading ensure safe data access. Intelligent functions include multiple VCA analytics such as motion detection, intrusion detection, heat mapping, ANPR, and people counting. POS overlay and triggered recording add operational insight, while dual HDMI outputs and VGA provide flexible high-definition display options.
Key Features
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
- Dual 4K HDMI output resolution
Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback
Smart ＆ POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
people counting - POS information overlay on live view and playback, and POS triggered recording and alarm
Network ＆ Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect ＆ DDNS (Dynamic Domain Name System) for easy network management
Smooth streaming technology
- Support web access without plug-in
Additional information
| Channel | |
|---|---|
| IP Video Input |
16-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth |
256 Mbps |
| Outgoing Bandwidth |
256 Mbps |
| HDMI 1 Output |
8K (7680 × 4320)/30Hz, 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz |
| HDMI 2 Output |
4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz *: When HDMI 1 output resolution is 8K, the maximum HDMI 2 output resolution is 1080p |
| VGA Output |
1920 × 1080/60Hz |
| Video Output Mode |
HDMI1/VGA simultaneous output, HDMI2/VGA independent output |
| CVBS Output |
1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480 |
| Audio Output |
1-ch, RCA (Linear, 1 KΩ) |
| Two-Way Audio |
1-ch, RCA (2.0 Vp-p, 1 KΩ, using the audio input) |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Recording Resolution |
32 MP/24 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/ 2CIF/CIF/QCIF *: After ultra HD resolution mode is enabled, the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Synchronous Playback |
16-ch |
| Decoding Capability |
2-ch@32 MP (30 fps)+2-ch@8MP（30fps）/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| eSATA |
1 eSATA interface |
| HDD Support | |
| Capacity |
Up to 16 TB capacity for each disk |
| Serial Interface |
2 RS-485 (half-duplex), 1 RS-232 |
| USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply |
100 to 240 VAC, 50 to 60 Hz |
| Working Temperature |
-10 °C to 55 °C (14 °F to 131 °F) |
| Chassis |
19-inch rack-mounted 1.5U chassis |
| Dimension |
(W × D × H) 440 × 389 × 72 mm ( 17.3"× 15.3" × 2.8") |
| Weight |
≤ 5 kg (without HDD, 11 lb.) |
