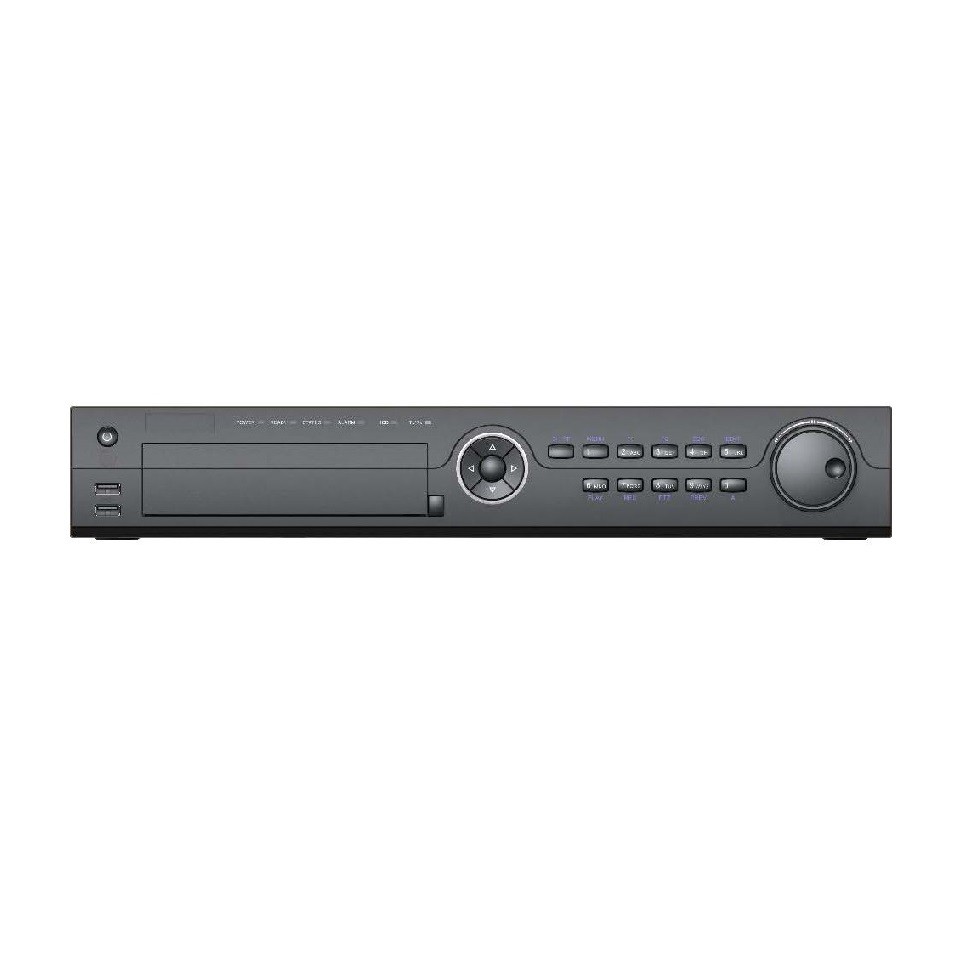

NR52P6-32 32-ch 1.5U 16 PoE 8K Accsense NVR
Embedded 8K Plug & Play NVR
- High-performance 32-channel 8K AcuSense NVR designed for advanced surveillance systems.
- Integrated 16 PoE ports simplify camera deployment with plug-and-play connectivity.
- Supports H.265+ compression and dual-stream recording for optimized storage usage.
- Advanced VCA analytics and POS integration enhance intelligent monitoring.
- Dual HDMI outputs support ultra-high-definition video display up to 8K.
- Secure transmission and flexible remote management ensure reliable operation.
Description
Product Overview
The NR52P6-32 AcuSense NVR delivers powerful video management for medium-to-large surveillance deployments. Supporting up to 32 IP cameras with decoding capacity of up to 32 channels at 1080p and 320 Mbps incoming bandwidth, it efficiently handles high-resolution video streams. Built-in PoE interfaces simplify installation by providing both power and data connectivity for cameras. Advanced compression technologies such as H.265+ and dual-stream recording significantly reduce storage requirements while maintaining image quality. Security features including TLS encrypted stream transmission and double verification for playback and downloads help protect system data. The recorder also supports multiple intelligent analytics such as motion detection, intrusion detection, heat map, ANPR, and people counting, while POS overlay enables transaction data to be displayed on live or recorded video for enhanced operational monitoring.
Key Features
Professional and Reliability
- H.265+ compression effectively reduces the storage space by up to 75%
- Dual-stream recording saves bandwidth
- Adopt stream over TLS encryption technology which provides more secure stream transmission service
- Support double verification for playback and downloading
HD Video Output
- Provide independent HDMI and VGA outputs
- HDMI video output at up to 8K resolution
- Dual 4K HDMI output resolution
Storage and Playback
- Up to 4 SATA interfaces for HDD connection
- 16-ch synchronous playback
Smart ＆ POS Function
- Support multiple VCA (Video Content Analytics) events
- Configurable special camera smart functions, such as VCA detection (motion, line crossing, intrusion, etc.), heat map, ANPR, and
people counting - POS information overlay on live view and playback, and POS triggered recording and alarm
Network ＆ Ethernet Access
- 16 independent PoE network interfaces
- 1 self-adaptive 10/100/1000 Mbps Ethernet interface
- Hik-Connect ＆ DDNS (Dynamic Domain Name System) for easy network management
Smooth streaming technology
- Support web access without plug-in
Additional information
| Channel | |
|---|---|
| IP Video Input |
32-ch Up to 32 MP resolution *: After ultra HD resolution mode is enabled ,the NVR supports up to 8-ch 32 MP/24 MP IP video inputs. |
| Incoming Bandwidth |
320Mbps |
| Outgoing Bandwidth |
400Mbps |
| VGA Output |
1920 × 1080/60Hz ,1600 × 1200/60Hz ,1280 × 1024/60Hz ,1280 × 720/60Hz ,1024 × 768/60Hz |
| Video Output Mode |
HDMI1/VGA simultaneous output ,HDMI2/VGA independent output |
| CVBS Output |
1-ch ,BNC (1.0 Vp-p ,75 Ω) ,resolution: PAL: 704 × 576 ,NTSC: 704 × 480 |
| Audio Output |
1-ch ,RCA (Linear ,1 KΩ) |
| Two-Way Audio |
1-ch ,RCA (2.0 Vp-p ,1 KΩ ,using the audio input) |
| Decoding Format |
H.265+/H.265/H.264+/H.264 |
| Synchronous Playback |
16-ch |
| Decoding Capability |
2-ch@32 MP (30 fps) + 2-ch@8 MP (30 fps)/10-ch@8 MP (30 fps)/20-ch@4 MP (30 fps)/40-ch@1080p (30 fps) |
| Remote Connection |
128 |
| Interface |
16 ,RJ-45 10/100 Mbps self-adaptive Ethernet interface |
| Power |
≤ 200 W |
| Standard |
IEEE 802.3 af/at |
| eSATA |
1 eSATA interface |
| HDD Support | |
| Capacity |
Up to 16 TB capacity for each disk |
| Serial Interface |
2 RS-485 (half-duplex) ,1 RS-232 |
| USB Interface |
Front panel: 2 × USB 2.0; Rear panel: 1 × USB 3.0 |
| Power Supply |
100 to 240 VAC ,50 to 60 Hz |
| Consumption |
≤15W(without HDD and PoE off) |
| Dimension(W×D×H) |
445 × 400 × 75 mm ( 17.5"× 15.7" × 3.0") |
| Weight |
≤ 5 kg (without HDD ,11 lb.) |
