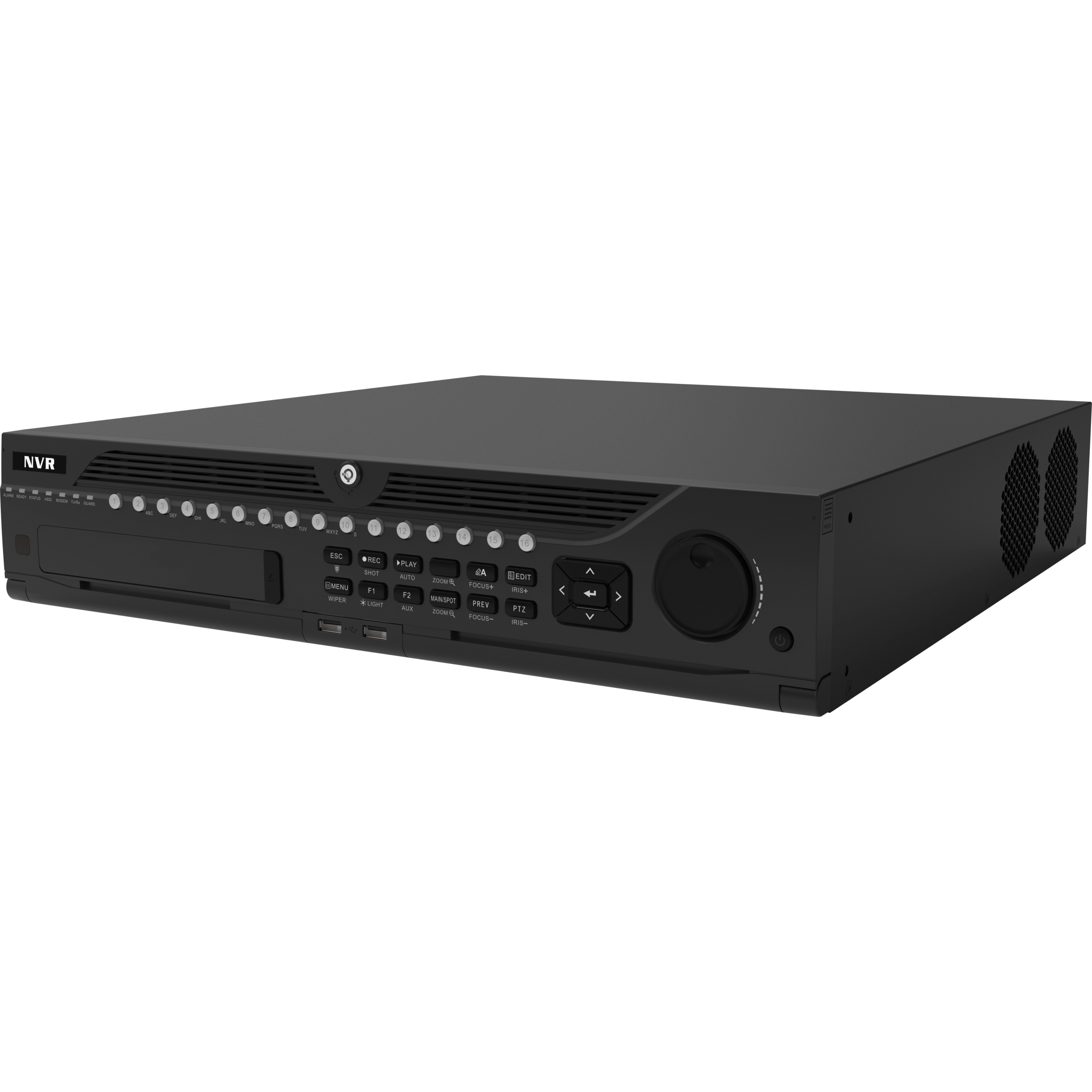

NRA20-64 64 Channel 400M 2U 4K Super Network Video Recorder

64 Channel 400Mbps 2U, 8K Super Network Video Recorder

Up to 64-ch IP camera inputs
Up to 2-ch@32 MP + 2-ch@8 MP/10-ch@8 MP/20-ch@4 MP/40-ch@1080p decoding capacity
Up to 400 Mbps incoming bandwidth and 400 Mbps outgoing bandwidth
2 HDMI (different source) and 2 VGA (different source) interfaces, 8K or dual 4K video outputs
Supports special cameras, including people counting camera, ANPR (automatic number plate recognition) camera, and fisheye camera
Advanced streaming technology enables smooth live view in poor network conditions
Supports RAID 0, 1, 5, 6, 10 and N+M hot spare for even more reliable data storage, effectively avoids data loss risks

Product Overview

The NRA20-64 Super Network Video Recorder is engineered for large-scale surveillance deployments requiring high bandwidth and advanced video processing. It supports up to 64 IP camera inputs and delivers powerful decoding performance, including up to 2 channels at 32 MP or multiple channels at 8 MP, 4 MP, and 1080p resolutions. With both incoming and outgoing bandwidth reaching 400 Mbps, the system efficiently handles high-resolution video streams. Multiple display interfaces, including two HDMI and two VGA outputs, provide flexible viewing options with support for 8K or dual 4K display modes. The recorder is compatible with specialized cameras such as people counting cameras, ANPR cameras, and fisheye cameras, enabling advanced analytics and wider monitoring coverage. RAID storage configurations and N+M hot spare functionality enhance data protection and ensure reliable operation in professional security environments.

Key Features

64-Channel IP Camera Support: Designed for large surveillance networks with flexible camera integration.
Ultra-High-Resolution Decoding: Supports up to 32 MP cameras with powerful multi-channel decoding performance.
High Bandwidth Processing: Up to 400 Mbps incoming and outgoing bandwidth ensures smooth recording and playback.
8K / Dual 4K Video Output: Dual HDMI and VGA interfaces support multiple high-resolution display configurations.
Special Camera Compatibility: Supports people counting, ANPR, and fisheye cameras for advanced monitoring applications.
Advanced Streaming Technology: Maintains smooth live viewing even in unstable network environments.
Enterprise Storage Protection: RAID 0/1/5/6/10 and N+M hot spare ensure data integrity and system reliability.

Key Specifications

IP Camera Input: Up to 64 channels
Decoding Capacity: Up to 2-ch @ 32 MP or multi-channel decoding at 8 MP / 4 MP / 1080p
Bandwidth: 400 Mbps incoming / 400 Mbps outgoing
Video Output: 2 HDMI + 2 VGA, up to 8K or dual 4K display
Storage Protection: RAID 0/1/5/6/10 with N+M hot spare support

Channel

64 Channel

HDD Support

8 HDD

Two-Way Audio

1-ch, RCA (2.0Vp-p,1KΩ,using the audio input)

Decoding Format

H.265+/H.265/H.264+/H.264

Decoding Capability

2-ch@32MP (30fps) +2-ch@8MP (30fps)/10-ch@8MP (30fps)/20-ch@4MP (30 fps)/40-ch@1080p (30fps)

Network Protocol

TCP/IP, DHCP, IPv4, IPv6, DNS, DDNS, NTP, RTSP, SADP, SMTP, SNMP, NFS, iSCSI, ISUP, UPnP™, HTTP, HTTPS

Network Interface

2,RJ-4510/100/1000Mbpsself-adaptiveEthernetinterface

Serial Interface

1RS-485 (full-duplex),1RS-232

Power Supply

100 to 240VAC, 50 to 60Hz

Consumption

≤50W(without HDD)

Dimension (W×D×H)

445×465×93mm (17.5"×18.3"×3.7")

Weight

≤10kg(22lb)
