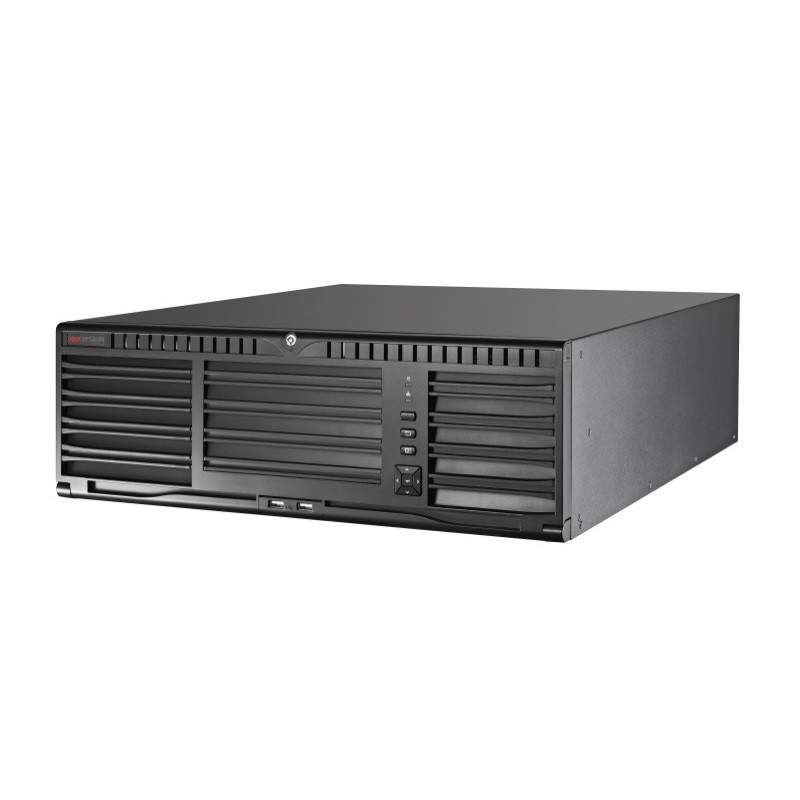

NRT10-256/I16 Professional Series 4K Network Video Recorder
Professional Series 4K Network Video Recorder
- 256-channel professional 4K NVR with advanced H.265+ compression.
- Supports up to 256 IP cameras with smooth 4K video output.
- 16 HDD bays with RAID and hot-swap support for secure, scalable storage.
- Dual-OS embedded design ensures stable 24/7 operation.
- Ideal for enterprise, campus, and critical infrastructure surveillance.
Description
Product Overview
The NRT10-256/I16 is a high-performance Super NVR designed for large-scale security networks. Supporting up to 256 IP cameras at resolutions up to 12 MP, it ensures high-definition live view, recording, and playback. The system features 16 SATA HDD bays plus eSATA for scalable storage, supporting RAID 0/1/5/6/10 and hot spare modes. Advanced H.265+ compression reduces storage and bandwidth usage, while dual-OS embedded architecture and redundant power supply guarantee stable, continuous operation. The NVR also supports centralized management, smart VCA alarms, smart search, and instant playback, making it ideal for enterprise-grade monitoring and control.
Key Features
- Ultra HD 4K Output: Provides detailed monitoring with 3840 × 2160 resolution.
- Flexible Storage: 16 HDD bays with RAID and hot-swap support for secure, scalable recording.
- Reliable Operation: Dual-OS design and redundant power supply ensure continuous monitoring.
- Advanced Compression: H.265+ efficiently saves storage space and network bandwidth.
- Efficient Playback & Search: Smart area search and video synopsis improve review efficiency.
Key Specifications
- IP Camera Inputs: Up to 256 channels
- Max Recording Resolution: 12 MP
- Decoding Capacity: Up to 20-ch @1080p
- Incoming Bandwidth: 768 Mbps
- Video Output: Up to 4K (4096 × 2160)
- Storage Interface: 16 SATA + 1 eSATA
Additional information
| Alarm input / output |
8/16 channel |
|---|---|
| Audio Output |
1‐ch. RCA (2.0 Vp‐p ,1 KΩ) |
| Capability |
20‐ch@1080p |
| Capacity |
Up to 10 TB for each HDD |
| Chassis |
3U |
| Decoding format |
H.265 ,H.265+ ,H.264 ,H.264+ ,MPEG4 ,MJPEG (for Hikvision IP camera only) |
| Dimensions |
442 × 494 × 146 mm (17.4 × 19.4 × 5.7 inch) |
| Extension board (optional) |
One extension board is supported with four 10M/100M/1000M optical interfaces (1.25 Gbps SFP module) ,eight RS‐485 interfaces ,and alarm interface of 32 alarm inputs and 16 alarm outputs. |
| Fan |
Redundant dual ball bearing fan; Speed adjustable; Hot‐plug |
| HDD Interface |
16 SATA interfaces supporting hot‐plug |
| HDMI output resolution |
Two independent HDMI outputs of 4K resolution. Resolution: 4K (4096 × 2160) ,4K (3840 × 2160)/30Hz ,2K (2560 × 1440)/60Hz ,1080p (1920 × 1080)/60Hz ,UXGA (1600 × 1200)/60Hz ,SXGA (1280 × 1024)/60Hz ,720p (1280 × 720)/60Hz ,XGA (1024 × 768)/60H |
| Incoming bandwidth |
768 Mbps |
| IP Video Input |
256‐ch |
| LCD output (optional) |
One 7 inch LCD |
| Network Interface |
4 ,RJ45 10M/100M/1000M self‐adaptive Ethernet interface |
| Network Protocols |
IPv6 ,HTTPS ,UPnP ,SNMP ,NTP ,SADP ,SMTP ,NFS ,iSCSI ,PPPoE ,DDNS |
| Operating Humidity |
10% to 90% |
| Outgoing bandwidth |
768 Mbps |
| Power Consumption |
≤ 140W |
| Power Supply |
100 to 240 VAC ,550W |
| Protocol |
HIKVISION ,ACTi ,ARECONT ,AXIS ,BOSCH ,BRICKCOM ,CANON ,HUNT ,ONVIF (Version 2.5) ,PANASONIC ,PELCO ,RTSP ,SAMSUNG ,SONY ,VIVOTEK ,ZAVIO |
| RAID Type |
RAID0 ,RAID1 ,RAID5 ,RAID 6 ,and RAID10 |
| Serial Interface |
1 RS‐485 ,Keyboard |
| Storage extension |
1 × eSATA interface ,2 × mini SAS interface (optional) |
| Synchronous Playback |
Up to 16 channels |
| Two-way audio input |
1‐ch ,RCA (2.0 Vp‐p ,1 KΩ) |
| USB Interface |
Front Panel: 2 × USB 2.0; Rear Panel: 2 × USB 3.0 |
| VGA output resolution |
1‐ch. Resolution: 1080p (1920 × 1080)/60Hz ,UXGA (1600 × 1200)/60Hz ,SXGA (1280 × 1024)/60Hz ,720p (1280 × 720)/60Hz ,XGA (1024 × 768)/60Hz |
| Video resolution |
12 MP/8 MP/7 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA/4CIF/DCIF/2CIF/CIF/QCIF |
| Weight |
≤ 16 kg (35.3 lb) |
| Working Environment |
0 °C to + 50 °C (32 °F to 122 °F) |
Download
Related Firmware
| Firmware Name | Description | Associated File | Actions |
|---|---|---|---|
| NRT10-128/I16 & NRT10-256/I16 | NVR_X50_BL_ML_NEU_V4.51.127_220831 | Download |
