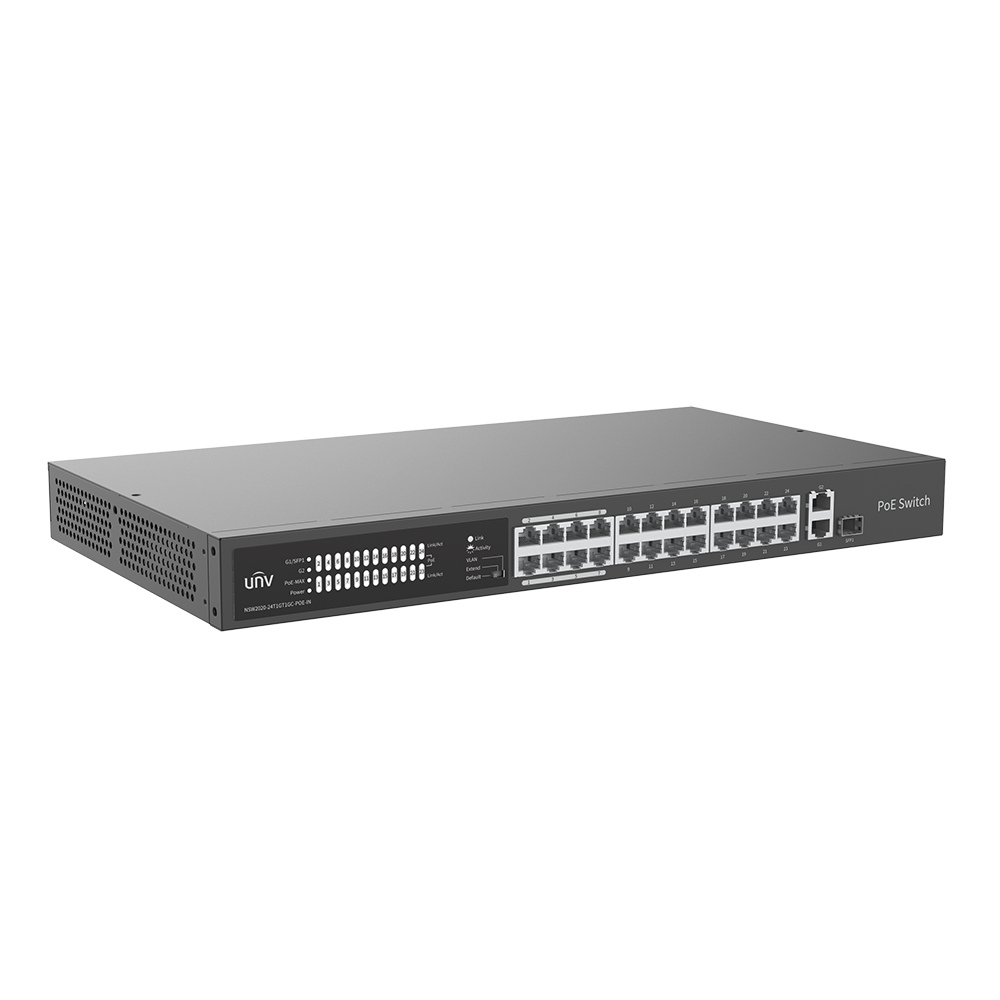

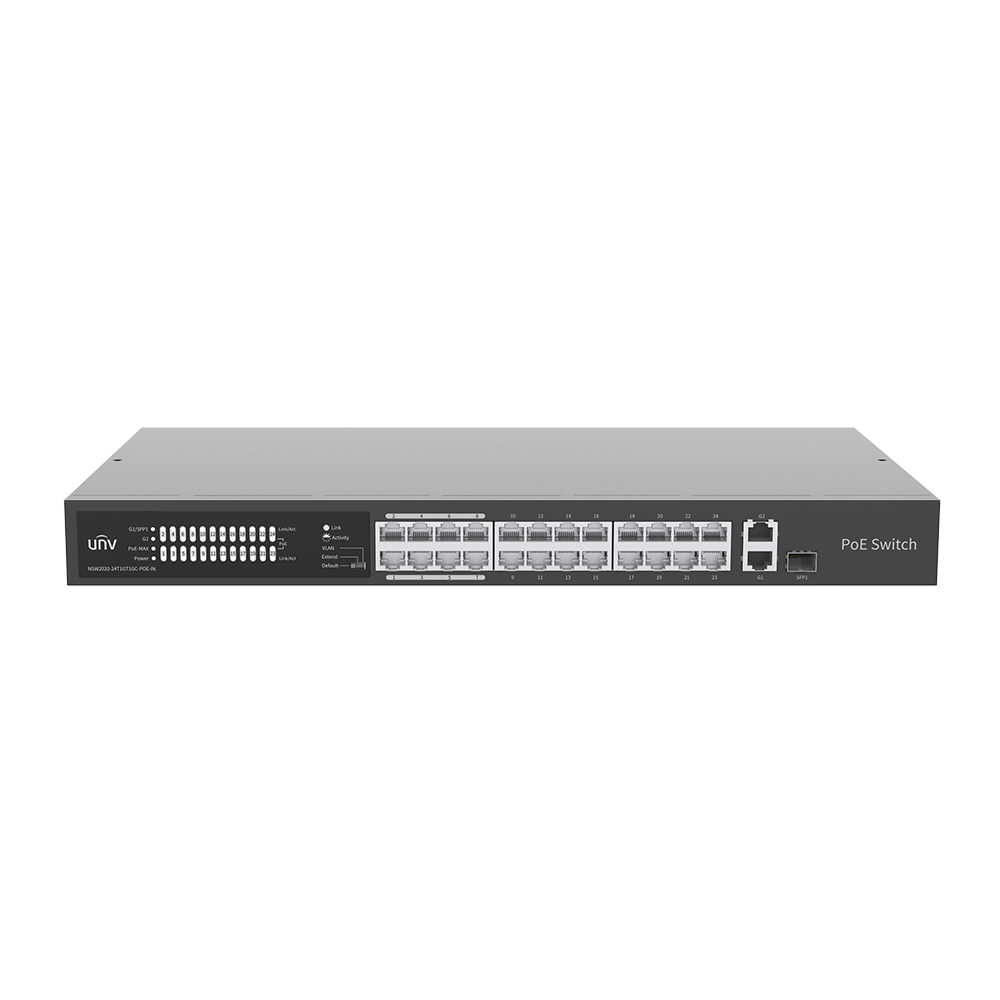

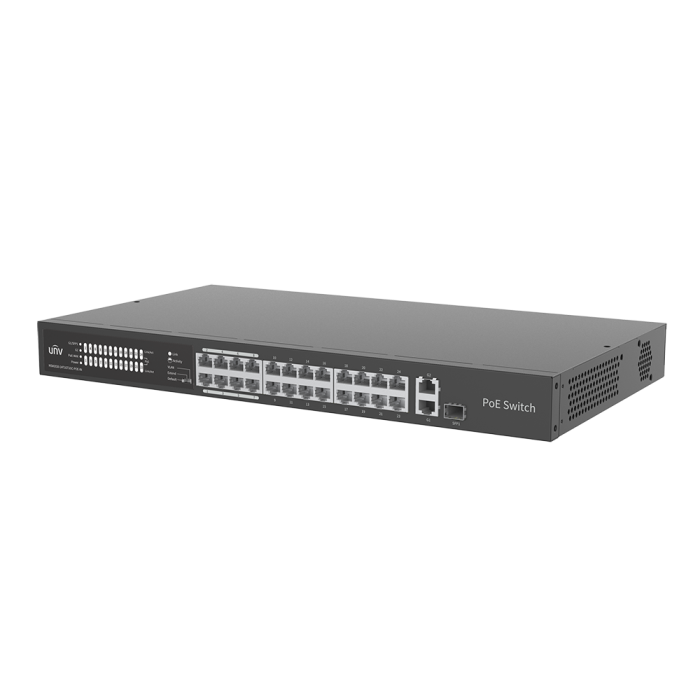

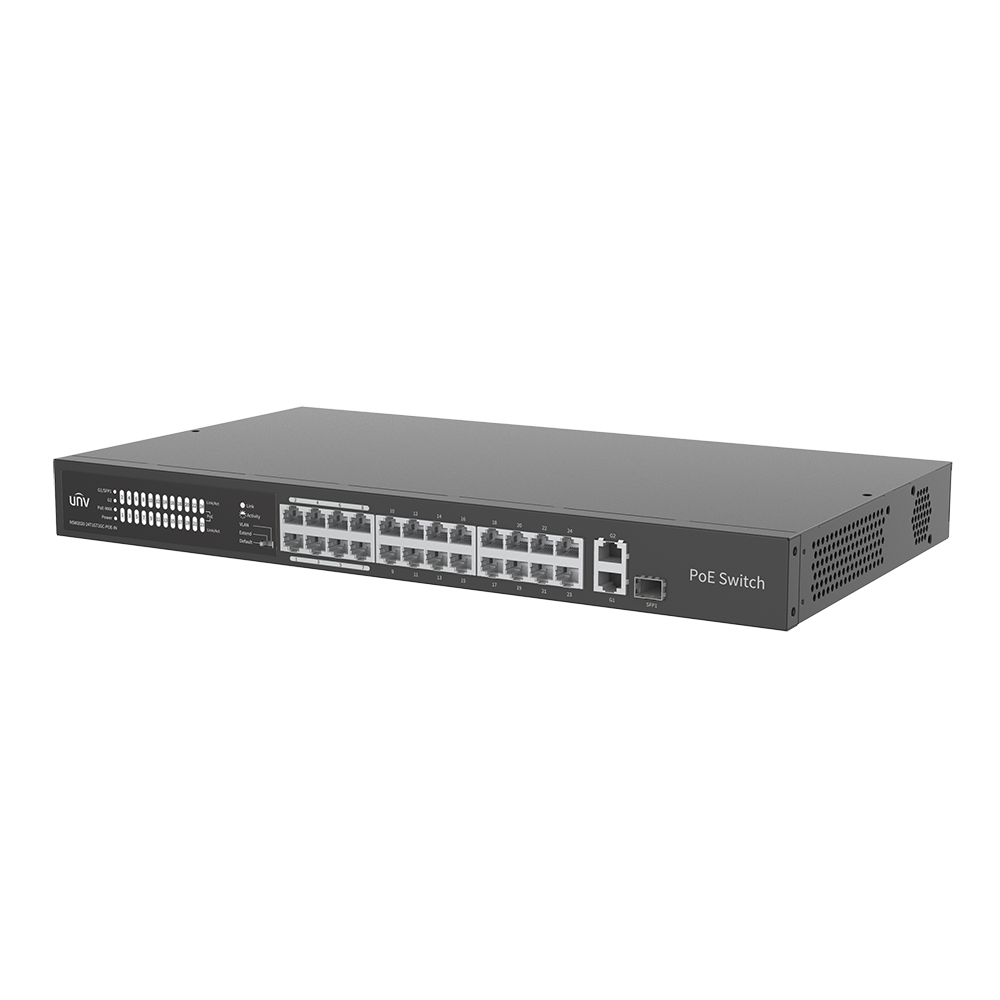

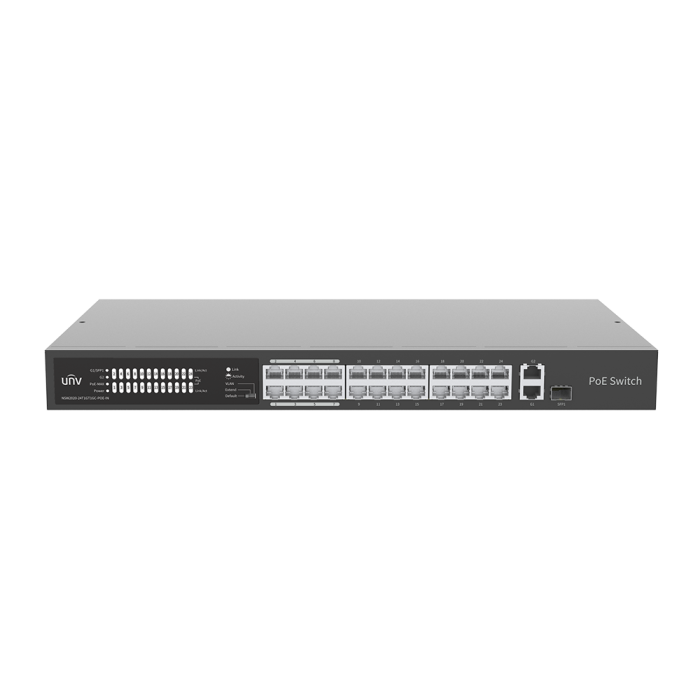

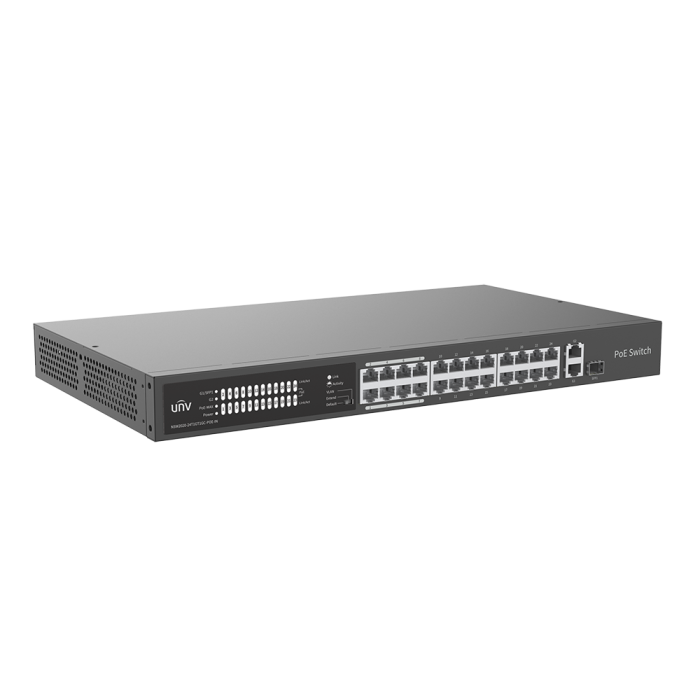

NSW2020-24T1GT1GC-POE-IN UNV Ethernet 24 Port 370W PoE Switch
UNV Ethernet 24 Port 370W PoE Switch
Description
- Multiple working modes to address your business needs: Default(Normal mode), VLAN(Secure mode), EXTEND(Surveillance mode)
- Support port traffic control
- Support for secure mode, all downlink ports can communicate only with uplink ports
- Up to 250m transmission distance on surveillance mode
- Support buffer optimization
- All metal housing, safe and reliable
Additional information
| Ports Type |
24×100Mbps PoE ports (RJ45) + 1×1000Mbps Gigaethernet ports +1×1000Mbps Combo ports |
|---|---|
| Switching capacity |
8.8 Gbps |
| Packet Buffer |
4 M bit |
| MAC |
16K |
| Forwarding performance |
6.55Mpps |
| Prior Ports |
1 to 8 |
| Standards |
IEEE802.3 ,IEEE802.3u ,IEEE802.3z ,IEEE802.3ab ,IEEE802.3x ,IEEE802.3af ,IEEE802.3at ,IEEE802.3az |
| Power Supply |
AC: 100 to 240V ,50/60Hz |
| PoE Standard |
IEEE 802.3 at ,IEEE 802.3af |
| PoE Mode |
ModeB (4578) |
| Max.PoE Power |
Max capacity:370W Max capacity for single port: 30W |
| Max.Power |
390W |
| Cooling Fans |
1 |
| Dimensions (W×D×H) |
440*250*44mm |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 90% (noncondensing) |
| Weight |
2.93KG |
