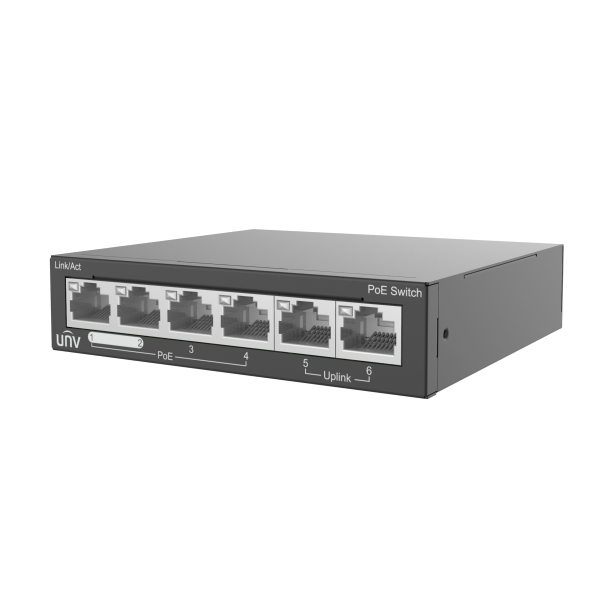

NSW2020-6T-POE-IN UNV Ethernet 4 Port 60W PoE Switch
UNV Ethernet 4 Port 60W PoE Switch
Description
- Multiple working modes to address your business needs: Default(Normal mode), EXTEND(Surveillance mode)
- Support port traffic control
- Up to 250m transmission distance on Extend mode
- Support buffer optimization
- All metal housing, safe and reliable
Additional information
| Ports Type |
6×100Mbps network ports (RJ45) ,including 4 PoE ports |
|---|---|
| Switching capacity |
1.2 Gbps |
| Packet Buffer |
448K bit |
| MAC |
1K |
| Forwarding performance |
0.90Mpps |
| Prior Ports |
1 to 2 |
| Standards |
IEEE802.3 ,IEEE802.3u ,IEEE802.3az ,IEEE802.3x ,IEEE802.3af ,IEEE802.3at |
| Power Supply |
DC: 48/51V ,powered by adapter(100 to 240V ,50/60Hz) |
| PoE Standard |
IEEE 802.3 at ,IEEE 802.3af |
| PoE Mode |
ModeB (4578) |
| Max.PoE Power |
Max capacity:60W Max capacity for single port: 30W |
| Max.Power |
65W |
| Cooling Fans |
0 |
| Dimensions (W×D×H) |
107*101*25mm |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
10% to 90% (noncondensing) |
| Weight |
0.19KG |
