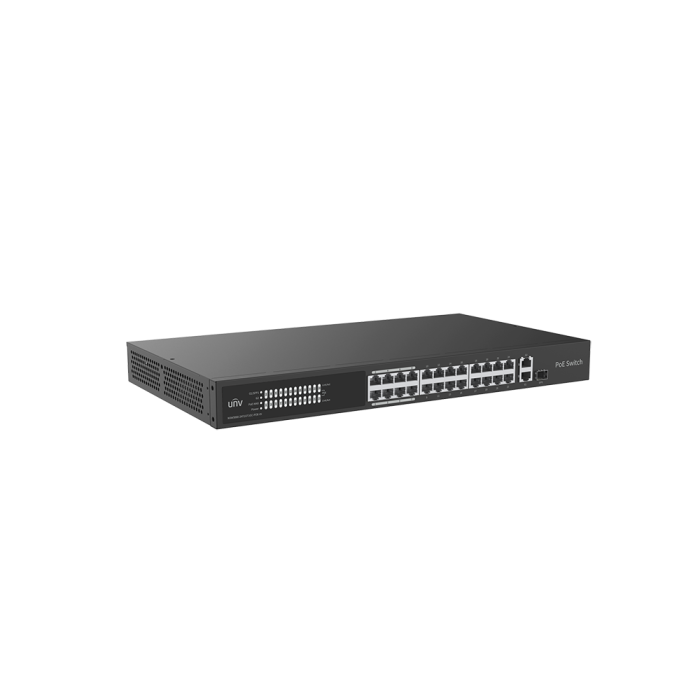

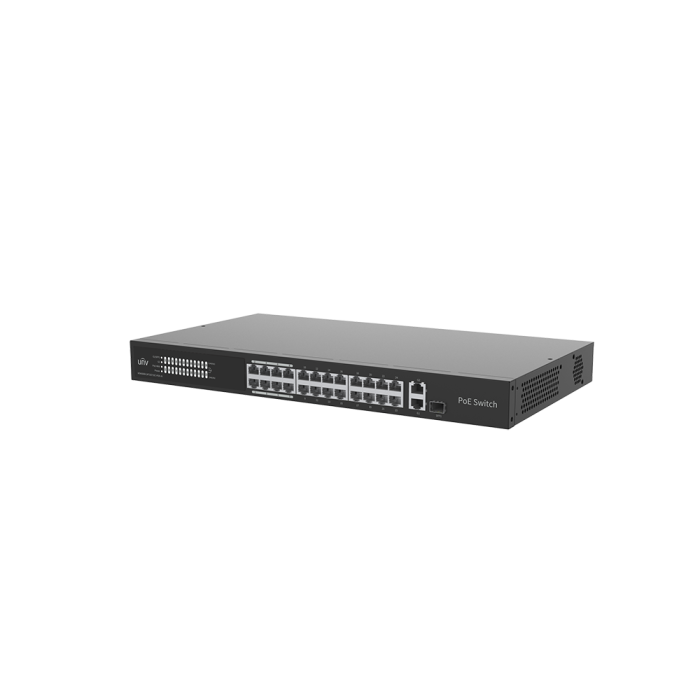

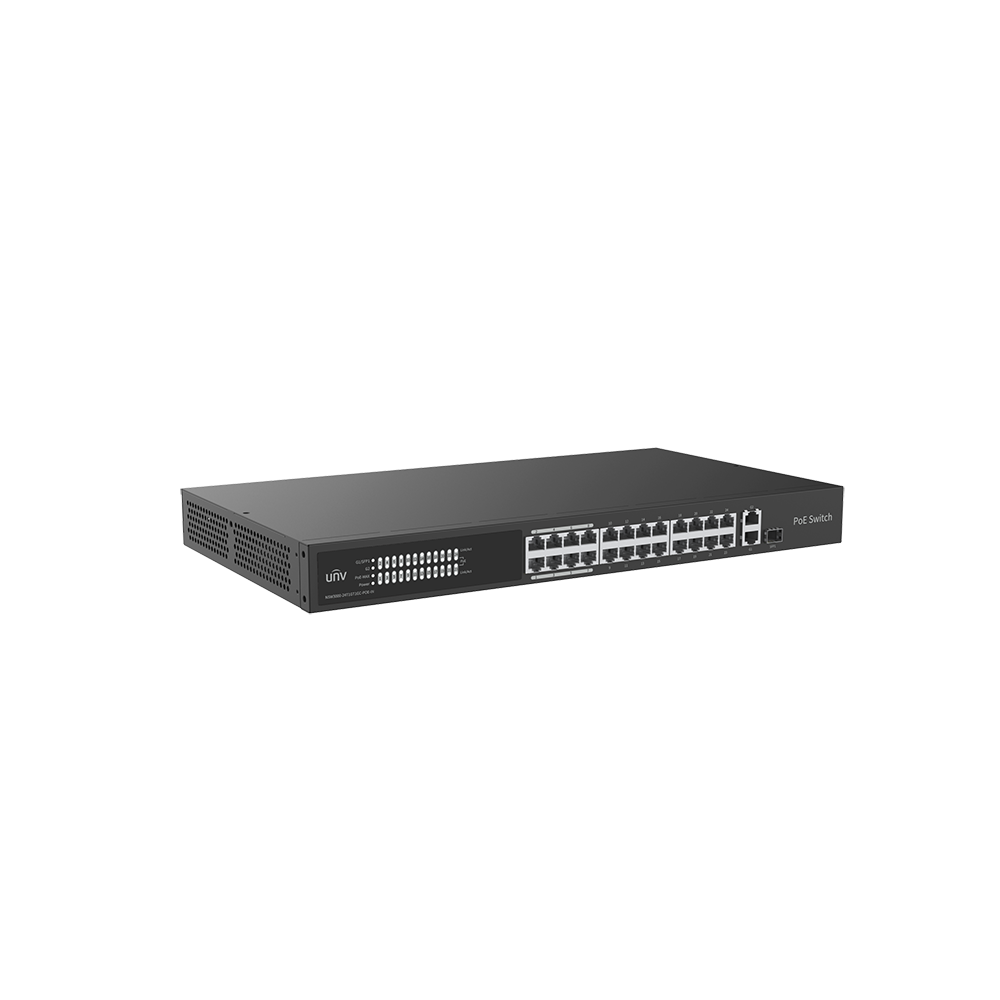

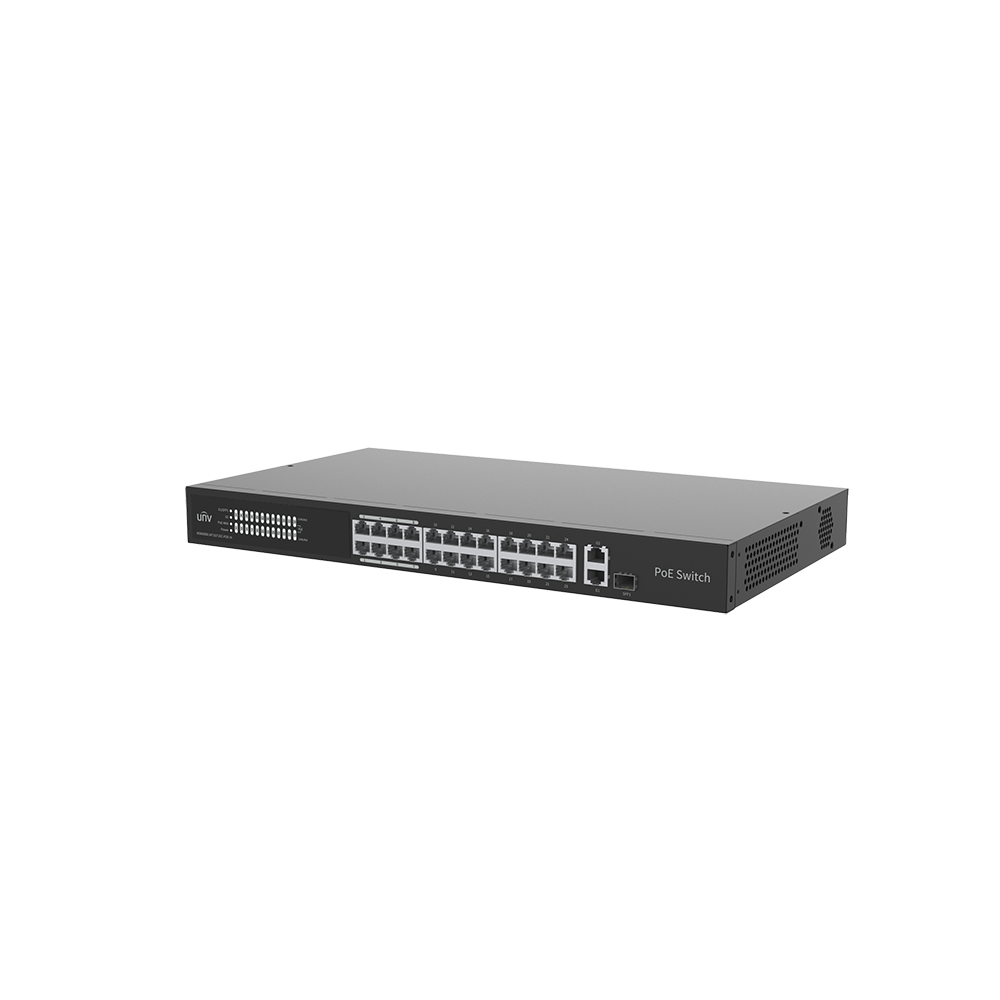

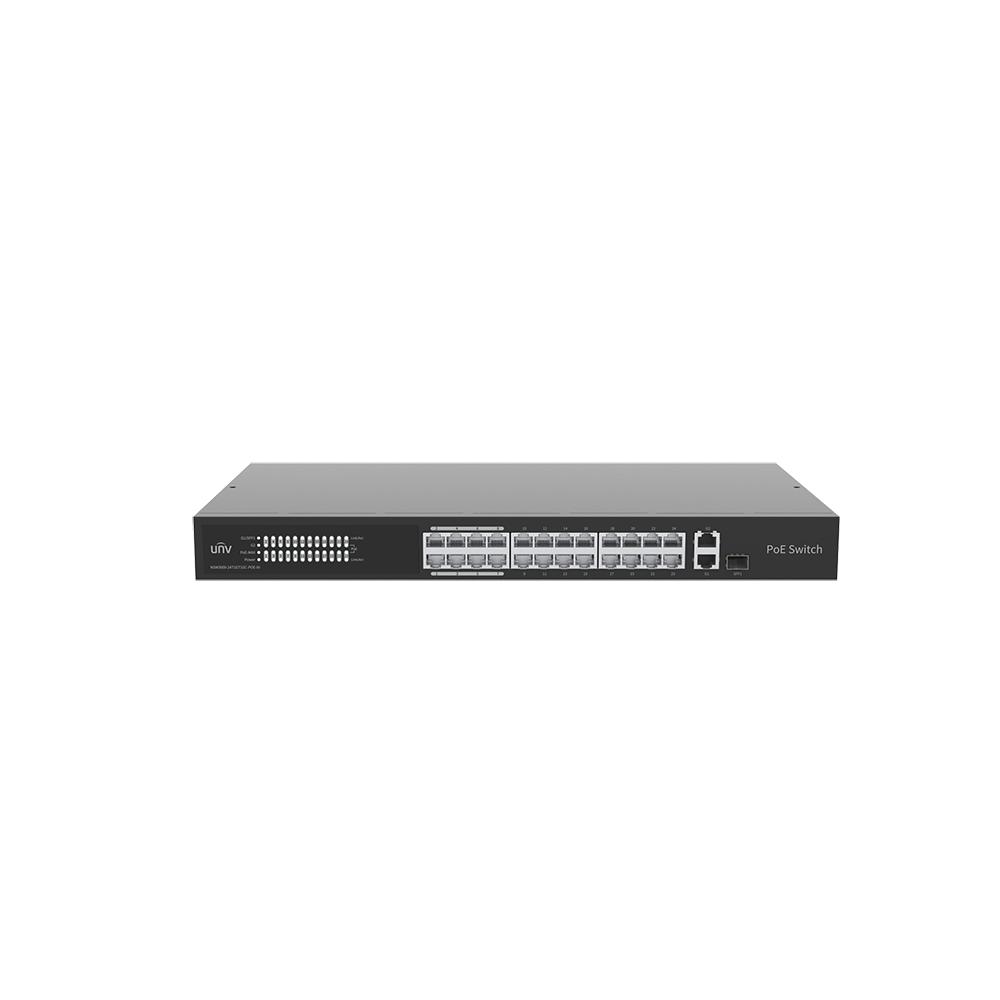

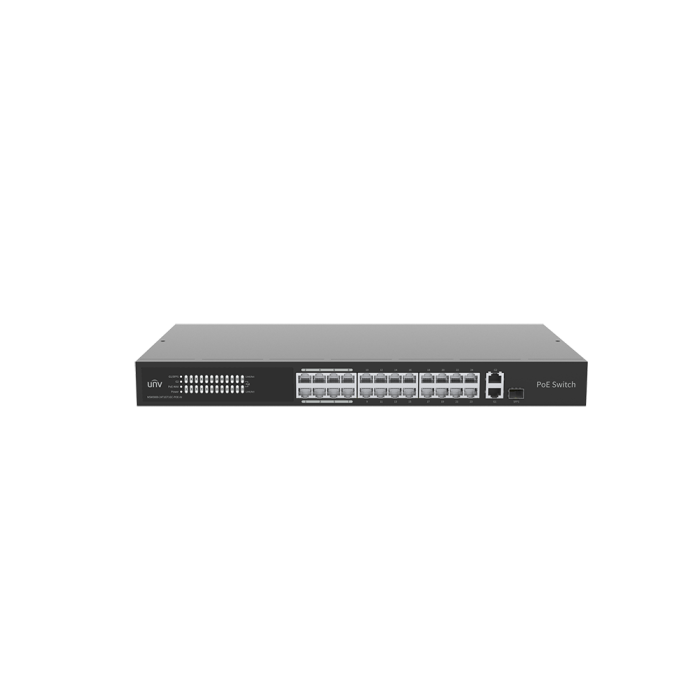

NSW3000-24T1GT1GC-POE-IN UNV Ethernet 24 Port 370W Cloud Managed Ethernet PoE Switch
UNV Ethernet 24 Port 370W Cloud Managed Ethernet PoE Switch
Description
- Supports unified configuration, management, and search on the software, convenient for rapid operation and maintenance of multiple devices; supports automatically discovering the connected video devices and generating a network topology on the software.
- Supports Web login, and device configuration and management on the Web interface; supports visiting the cloud by scanning the QR code, and allows to view the device status in real time on the app, and remotely restart the PoE power supply.
- Supports PoE power supply and allows to view the power; allows to enable or disable PoE power supply for the powered device; allows up to 250m power supply using a standard network cable.
- Supports the extend mode for up to 250m communication range and 10Mbps full-duplex port rate.
- Allows to report port abnormal alarms to the software for realtime monitoring.
- Supports port priority. The packets received by the priority port will be forwarded first and the priority port will be powered first when the PoE power supply is full.
- All metal casing, secure and reliable.
Additional information
| Ports Type |
24 x 10/100Mbps POE port (RJ45) + 1 x Gigabit port (RJ45) + 1 x Gigabit Combo |
|---|---|
| Switching capacity |
8.8 Gbps |
| Packet Buffer |
4 M bit |
| MAC |
16K |
| Forwarding performance |
6.55Mpps |
| Prior Ports |
1 to 8 |
| Standards |
IEEE802.3 ,IEEE802.3u ,IEEE802.3z ,IEEE802.3ab ,IEEE802.3x ,IEEE802.3af ,IEEE802.3at ,IEEE802.3az |
| Power Supply |
AC: 100 to 240V ,50/60Hz |
| PoE Standard |
IEEE 802.3af ,IEEE 802.3 at |
| PoE Mode |
ModeA (1236) ,ModeB (4578) |
| Max.PoE Power |
Maximum total power: 370W Maximum PoE power for single port: 30W |
| Max.Power |
385W |
| Cooling Fans |
1 |
| Dimensions (W×D×H) |
440mm x 244.8mm x 44mm |
| Operating Temperature |
0°C to 40°C (32°F to 104°F) |
| Operating Humidity |
5% to 90% RH ,noncondensing |
| Weight |
2.9kg |
