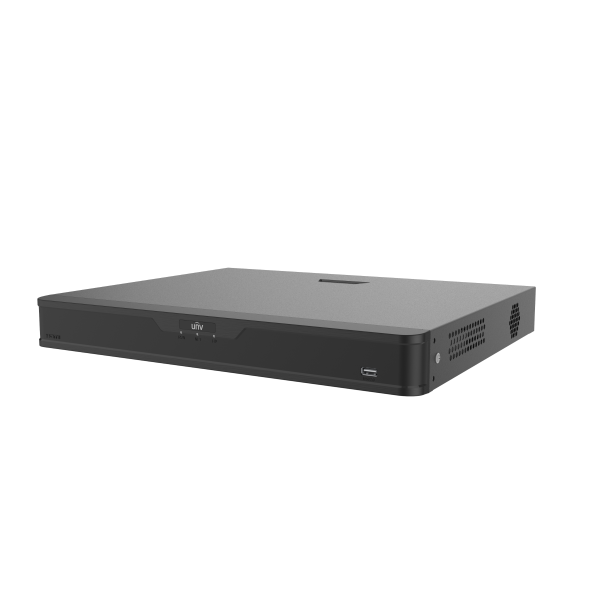

NVR302-08B-P8-IQ 2 HDDs 8-ch 8 PoE 1U Network Video Recorder
2 HDDs 8-ch 8 PoE 1U Network Video Recorder
Description
- Support Ultra 265/H.265/H.264 video formats
- 8 channel input
- Plug & Play with 8 independent PoE network interfaces
- Support 1 ch HDMI, 1 ch VGA. HDMI up to 4K (3840×2160) resolution
- VGA and HDMI simultaneous output
- Up to 12 Megapixels resolution recording
- ANR technology to enhance the storage reliability when the network is disconnected
- Support cloud upgrade
Additional information
| Channel | |
|---|---|
| HDD Support | |
| PoE |
8 |
| Decoding Format |
Ultra 265 ,H.265 ,H.264 |
| Decoding Capability |
Smart Off：2 x 12MP@30 ,2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 Smart On：2 x 4K@30 ,4 x 4MP@30 ,8 x 1080P@30 |
| Decoding Capability Description |
The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Incoming Bandwidth |
160 Mbps |
| Outgoing Bandwidth |
128Mbps |
| Certification |
CE; FCC; UL; RoHS; WEEE |
| Remote Users |
128 |
| Recording Resolution |
12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Capacity |
Up to 10 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Network Interface |
1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB |
Front panel: 1 × USB2.0 ,Rear panel: 1 × USB3.0 |
| Power Supply |
AC 100~240V |
| PoE Interface |
8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power |
Max 30 W for single port ,Max 130 W in total |
| Supported Standard |
IEEE 802.3at ,IEEE 802.3af |
| Power Consumption (without HDD) |
≤ 12W |
| Weight (without HDD) |
≤ 2.7Kg (6.0lb) |
| Dimensions |
380mm × 322mm × 53mm (15.0"×12.7"×2.1") |
| CE |
EN 55032 ,EN 61000-3-3 ,EN IEC 61000-3-2 ,EN 55035 |
| FCC |
Part15 Subpart B |
