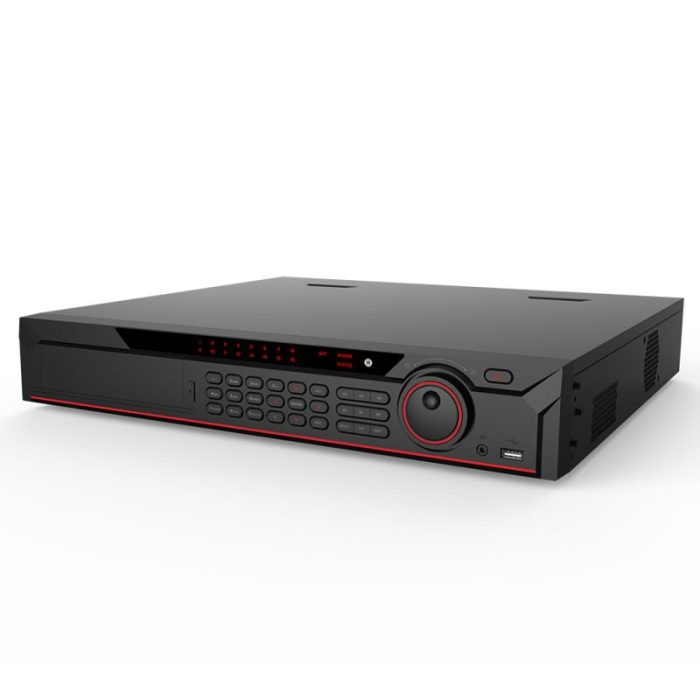

NVR424H-32-4K 32 Channel 1.5U 4K&H.265 Lite Network Video Recorder
32 Channel 1.5U 4K&H.265 Lite Network Video Recorder
- H.265/H.264 codec decoding
- Max 200Mbps Incoming Bandwidth
- Up to 8MP Resolution for Preview and Playback
- Up to 2ch@4K/8ch@1080P decoding
- HDMI/VGA simultaneous video output
Description
Product Overview
The NVR424H-32-4K delivers professional 4K monitoring for medium-scale surveillance systems. Supporting up to 32 IP cameras and decoding up to 2 channels at 4K or 8 channels at 1080P, it ensures clear, high-resolution video for critical security applications. The system features 4 SATA HDDs with scalable storage up to 6 TB per drive and supports USB and network backup for data security. Multi-screen display and smart search functions allow efficient playback, while motion detection, tampering alerts, and two-way audio enhance overall security management.
Key Features
- Ultra HD 4K Monitoring: Provides detailed 8 MP video for precise security coverage.
- Smart Video Detection: Supports motion detection, tampering, and video loss alerts.
- Flexible Storage Options: 4 SATA HDDs, USB and network backup for secure data management.
- Multi-Screen Display: HDMI and VGA outputs for simultaneous high-definition viewing.
- Two-Way Audio: Built-in audio input and output for monitoring and communication.
- Wide Third-Party Support: Compatible with major IP cameras including Axis, Sony, Panasonic, Samsung, and more.
Key Specifications
- IP Camera Inputs: 32 channels
- Decoding Capacity: 2-ch@4K, 8-ch@1080P
- Incoming Bandwidth: 200 Mbps
- Video Output: HDMI up to 3840 × 2160, VGA up to 1920 × 1080
- Storage Interface: 4 SATA III ports, up to 6 TB each
- Network Interface: 2 RJ-45 Ethernet ports
Additional information
| Alarm Input |
16 Channel |
|---|---|
| Backup Mode |
USB Device/Network |
| CE |
EN55032 ,EN55024 ,EN50130-4 ,EN60950-1 |
| Dimensions |
1.5U ,440mm×411.1mm×76mm (17.3" x 16.2" x 3.0") |
| Display Decoding Capacity |
2ch@4K 30fps ,8ch@1080P 30fps |
| Display Interface |
1 HDMI ,1 VGA |
| Display Resolution |
HDMI: 3840×2160 ,1920×1080 ,1280×1024 ,1280×720 VGA: 1920×1080 ,1280×1024 ,1280×720 |
| FCC |
Part 15 Subpart B ,ANSI C63.4-2014 |
| Gross Weight |
7kg(15.4 lb)(without HDD) |
| HDD Mode |
Single |
| Internal HDD |
4 SATA III Ports ,Up to 6 TB capacity for each HDD |
| Interoperability |
ONVIF 2.4 ,SDK ,CGI |
| IP Video Input |
32 Channel |
| Main Processor |
Quad-core embedded processor |
| Max. User Access |
128 users |
| Multi-screen Display |
32CH: 1/4/8/9/16/25/36 |
| Net Weight |
4.5kg (9.9 lb) (without HDD) |
| Network Function |
HTTP ,HTTPS ,TCP/IP ,IPv4/IPv6 ,UPnP ,RTSP ,UDP ,SMTP ,NTP ,DNS ,IP Filter ,PPPoE ,DDNS ,FTP ,SNMP ,IP Search (Support Dahua IP camera ,DVR ,NVS ,etc.) ,Easy4ip |
| Network Interface |
2 RJ-45 Ports |
| Operating Conditions |
-10°C ~ +55°C (+14°F ~ +131°F) ,86 ~ 106kpa |
| Operating System |
Embedded LINUX |
| OSD |
Camera title ,Time ,Camera lock ,Motion detection ,Recording |
| Playback |
1/4/9/16 |
| Playback Function |
Play ,Pause ,Stop ,Rewind ,Fast play ,Slow Play ,Next File ,Previous File ,Next Camera ,Previous Camera ,Full Screen ,Backup Selection ,Digital Zoom |
| PoE |
N/A |
| Power Consumption |
< 11.7W(without HDD) |
| Power Supply |
AC100V ~ 240V ,50 ~ 60 Hz |
| Record Interval |
1 ~ 120 min (default: 60 min) ,Pre-record: 1 ~ 30 sec ,Post-record: 10 ~ 300 sec |
| Record Mode |
Manual ,Schedule (Regular ,Continuous) ,MD (Video detection: Motion Detection ,Tampering ,Video Loss) ,Stop |
| Record Rate |
200Mbps |
| Recording Bit Rate |
16Kbps ~ 20Mbps Per Channel |
| Recording Compression |
H.265/ H.264 |
| Recording Resolution |
8Mp/ 6Mp/ 5MP/ 4MP/ 3MP/ 1080P/ 1.3MP/ 720P etc. |
| Relay Output |
4 Channel |
| RS232 |
1 Port ,for PC Communication and Keyboard |
| RS485 |
1 Port ,for PTZ Control |
| Search Mode |
Time /Date ,MD and Exact Search (accurate to second) ,Smart search |
| Smart Phone |
iPhone ,iPad ,Android |
| Storage Conditions |
-20°C ~ +70°C (-4°F ~ +158°F) ,0 ~ 90% RH |
| Third-party Support |
Arecont Vision ,Airlive ,AXIS ,Canon ,Dynacolor ,JVC ,LG ,Panasonic ,Pelco ,PSIA ,Samsung ,Sanyo ,Sony ,Watchnet and more |
| Trigger Events |
Recording ,PTZ ,Tour ,Video Push ,Snapshot ,Buzzer and Screen Tips |
| Two-way audio |
1 Channel Input ,1 Channel Output ,RCA |
| UL |
UL60950-1 |
| USB Port |
2 ports(1 USB2.0 ,1 USB3.0) |
| Video Detection |
Motion Detection ,MD Zones: 396 (22 × 18) ,Video Loss and Tampering |
