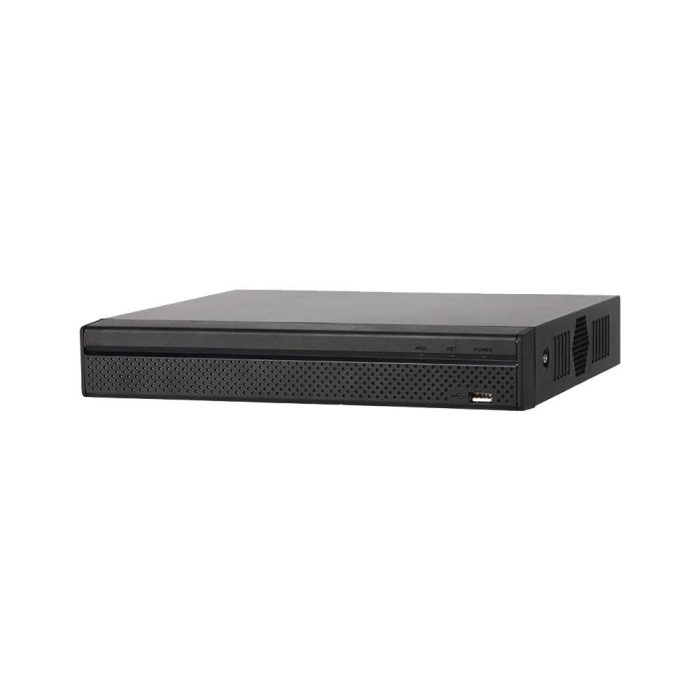

NVR431HP4-4-4K 4 Channel Compact 1U 1HDD 4PoE Network Video Recorder
Click to enlarge
WINIC

NVR431HP4-4-4K 4 Channel Compact 1U 1HDD 4PoE Network Video Recorder

4 Channel Compact 1U 1HDD 4PoE Network Video Recorder

  • H.265/H.264 codec decoding
  • Max 80Mbps Incoming Bandwidth
  • Up to 8MP Resolution for Preview and Playback
  • Up to 2ch@4K/8ch@1080P decoding
  • HDMI/VGA simultaneous video output, maximum resolution of HDMI at 4K
  • Support IPC UPnP, 4PoE ports
Add to wishlist
SKU: NVR431HP4-4-4K Categories: ,
Description

Product Overview

The NVR431HP4-4-4K is a compact 1U network video recorder designed for small installations requiring high-resolution monitoring. It supports 4 IP cameras with PoE connectivity for simplified deployment and up to 8 MP resolution for clear video preview and playback. The system decodes up to 2 channels at 4K or 8 channels at 1080P simultaneously, with HDMI and VGA outputs for flexible multi-screen display. One SATA HDD provides local storage, while support for UPnP-enabled IP cameras ensures easy integration with third-party devices.

Key Features

  • Ultra HD 4K Monitoring: Captures high-resolution video for accurate surveillance.
  • PoE Simplified Deployment: 4 built-in PoE ports for plug-and-play IP camera connection.
  • Smart Video Decoding: Supports 2-ch@4K or 8-ch@1080P decoding.
  • Flexible Storage Options: 1 SATA HDD for reliable local storage.
  • Multi-Screen Display: HDMI (up to 4K) and VGA outputs for simultaneous viewing.
  • Compact 1U Design: Space-saving, suitable for small cabinets or desktop setups.



Key Specifications

  • IP Camera Inputs: 4 channels
  • Decoding Capacity: 2-ch@4K, 8-ch@1080P
  • Incoming Bandwidth: 80 Mbps
  • Video Output: HDMI up to 3840 × 2160, VGA up to 1920 × 1080
  • Storage Interface: 1 SATA port, up to 6 TB
  • PoE Ports: 4 ports (IEEE 802.3af/at)
Additional information
Channel

HDD Support

Decoding Capability

8 × 1080p@30 fps
Video Output

1 × VGA output, 1 × HDMI output, supports simultaneous video sources output for VGA and HDMI
Power Supply

48 V/53 VDC, 1.25 A/1.13 A
Power Consumption

< 10 W (HDD not included, idling) Total output power of PoE is 36W, the maximum output power of a single port is 25.5W
Net Weight

0.86 kg (1.90 lb)
Gross Weight

1.86 kg (4.10 lb)
Product Dimensions

260 mm × 232.3 mm × 50.3 mm (10.24" × 9.14" × 1.98") (W × L × H)
Package Dimensions

117 mm × 373 mm × 307 mm (4.61" × 14.69" × 12.09") (W × L × H)
