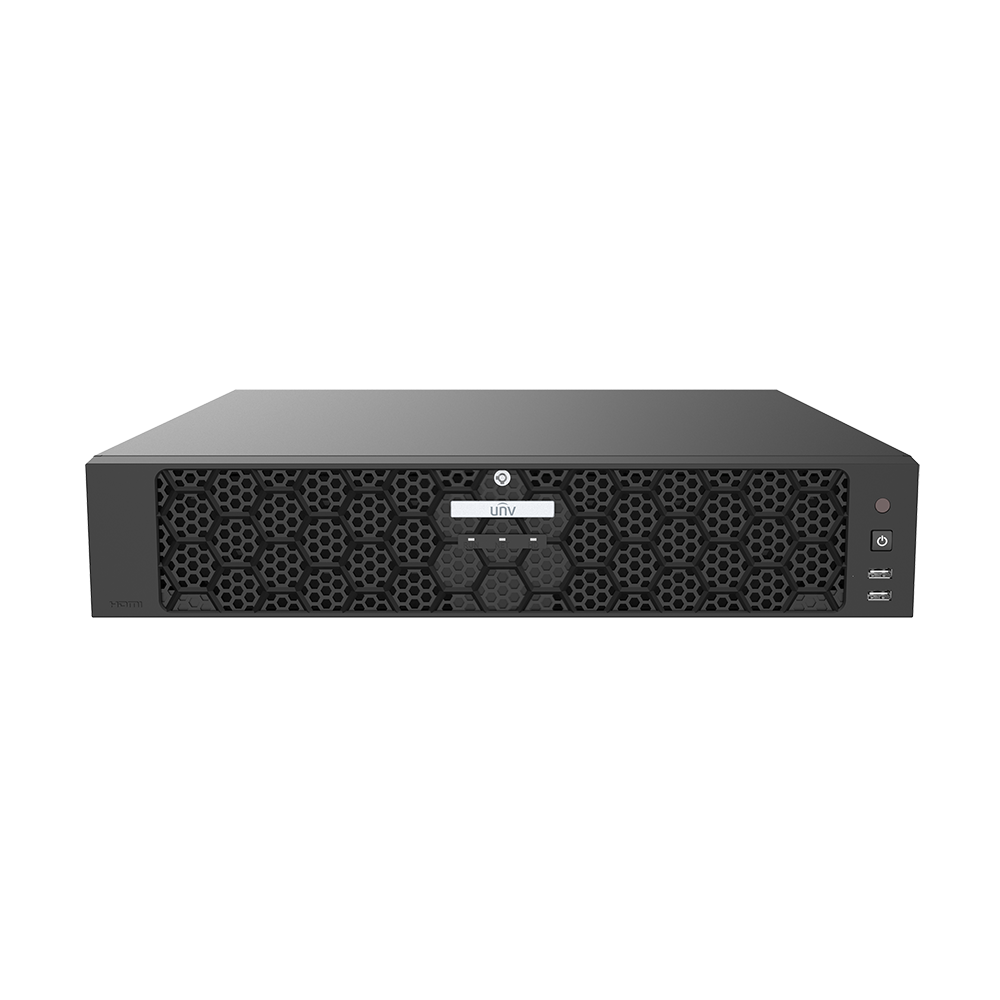

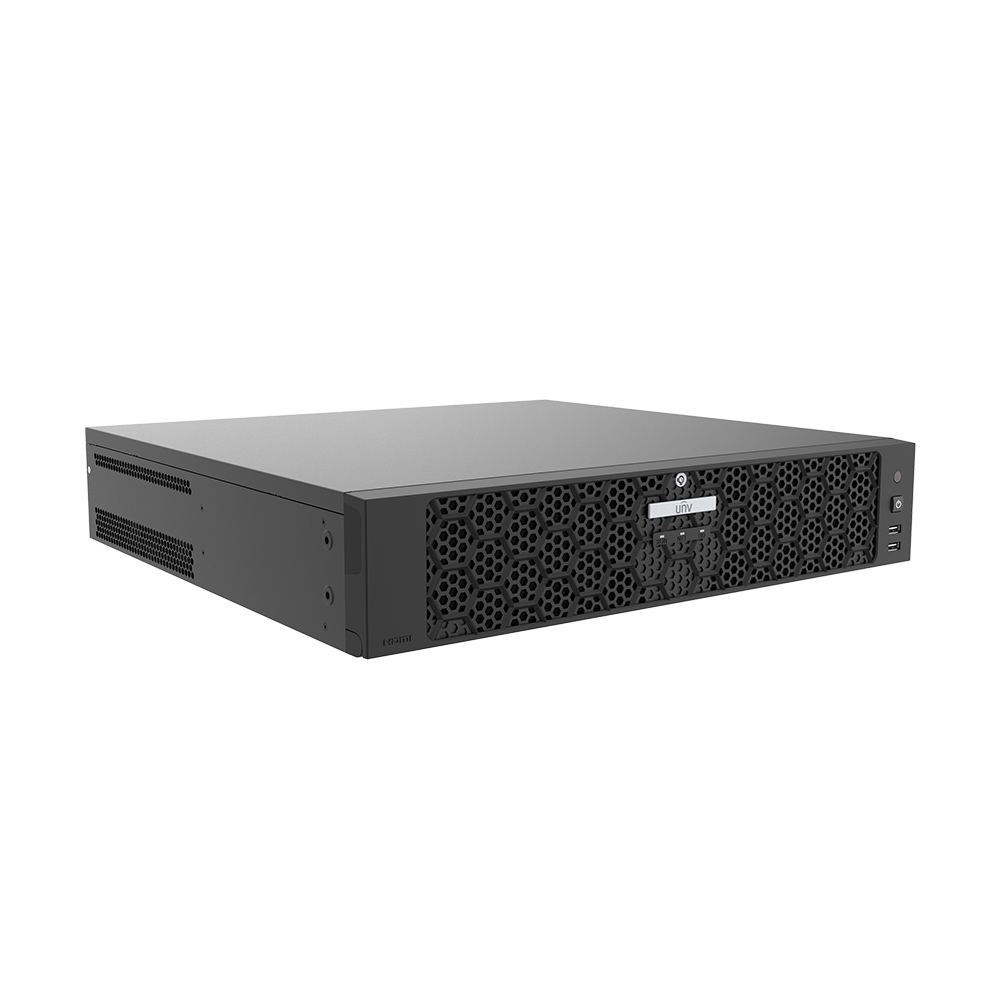

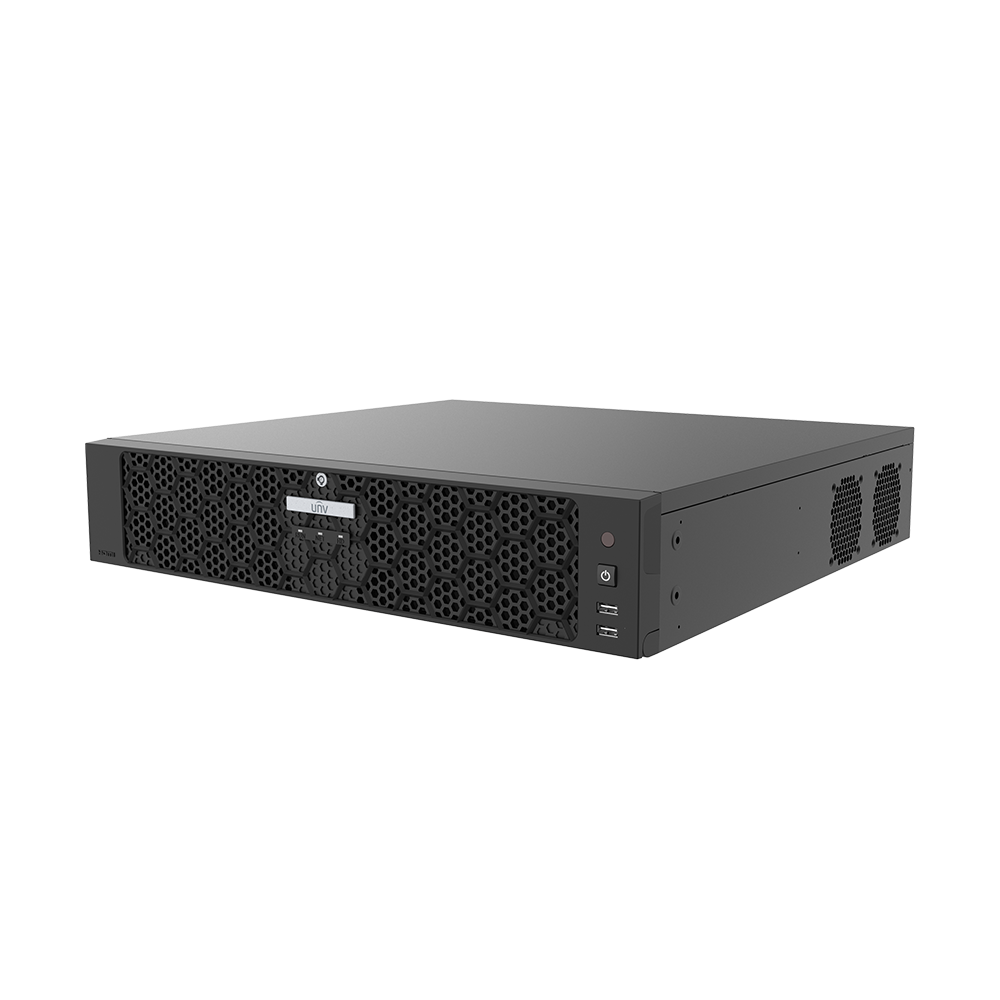

NVR508-32E-R-IQ 8 HDDs 32-ch 2U Network Video Recorder

8 HDDs 32-ch 2U Network Video Recorder

SKU: NVR508-32E-R-IQ Category: 8 SATA Series

Channel	32 Channel
HDD Support	8 HDD
PoE	N/A
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Smart Off：2 x 32MP@30 , 4 x 16MP@30 , 5 x 12MP@30 , 8 x 4K@30 , 10 x 6MP@30 , 12 x 5MP@30 , 16 x 4MP@30 , 20 x 3MP@30 , 32 x 1080P@30 Smart On：1 x 32MP@30 , 3 x 16MP@30 , 4 x 12MP@30 , 6 x 4K@30 , 8 x 6MP@30 , 9 x 5MP@30 , 12 x 4MP@30 , 16 x 3MP@30 , 24 x 1080P@30 , 32 x 720P@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length or width
Incoming Bandwidth	Smart Off：384Mbps Smart On：200Mbps
Outgoing Bandwidth	Smart Off：384Mbps Smart On：200Mbps
Remote Users	128
Recording Resolution	32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB2.0 , Rear panel: 2 × USB3.0
Power Supply	AC 100~240V
RS485	1
RS232	1
Power Switch	Support
Power Consumption (without HDD)	≤ 35W
Weight (without HDD)	≤ 6.5Kg (14.3lb)
Dimensions	443mm × 448mm × 93mm (17.4"×17.6"×3.7")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B

Description

Support Ultra 265/H.265/H.264 video formats
32/64-channel input
Support 2 HDMI and 2 VGA. VGA1 and HDMI1 simultaneous output, VGA2 and HDMI2 simultaneous output. VGA1/HDMI1 and VGA2/HDMI2 independent output
Up to 32 Megapixels resolution recording
Support N+1 Hot spare
Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable
Redundant power supply optional
ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Additional information

Channel	32 Channel
HDD Support	8 HDD
PoE	N/A
Decoding Format	Ultra 265 , H.265 , H.264
Decoding Capability	Smart Off：2 x 32MP@30 , 4 x 16MP@30 , 5 x 12MP@30 , 8 x 4K@30 , 10 x 6MP@30 , 12 x 5MP@30 , 16 x 4MP@30 , 20 x 3MP@30 , 32 x 1080P@30 Smart On：1 x 32MP@30 , 3 x 16MP@30 , 4 x 12MP@30 , 6 x 4K@30 , 8 x 6MP@30 , 9 x 5MP@30 , 12 x 4MP@30 , 16 x 3MP@30 , 24 x 1080P@30 , 32 x 720P@30
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length or width
Incoming Bandwidth	Smart Off：384Mbps Smart On：200Mbps
Outgoing Bandwidth	Smart Off：384Mbps Smart On：200Mbps
Remote Users	128
Recording Resolution	32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Capacity	Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature)
Network Interface	2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB2.0 , Rear panel: 2 × USB3.0
Power Supply	AC 100~240V
RS485	1
RS232	1
Power Switch	Support
Power Consumption (without HDD)	≤ 35W
Weight (without HDD)	≤ 6.5Kg (14.3lb)
Dimensions	443mm × 448mm × 93mm (17.4"×17.6"×3.7")
Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032 , EN 61000-3-3 , EN IEC 61000-3-2 , EN 55035
FCC	Part15 Subpart B
