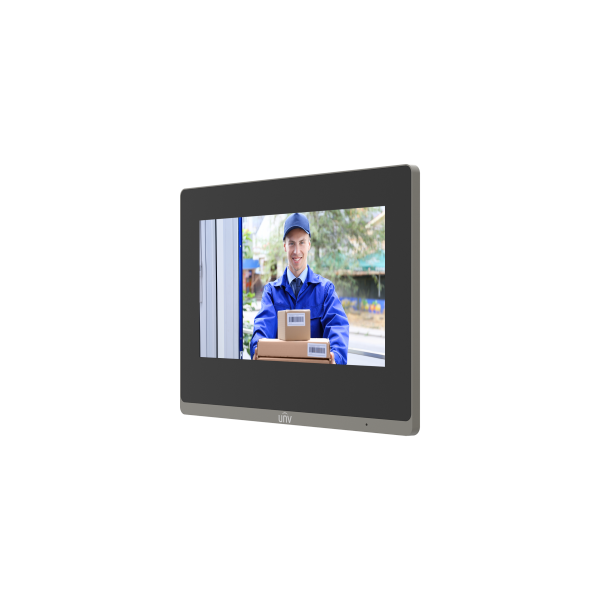

OEI-371S-H-W Wall Mounted 7-inch Indoor Station(Concealed wire installation)
Wall Mounted 7-inch Indoor Station
(Concealed wire installation)
Description
- Durable ABS casing with a glass panel.
- 1024×600 HD touchscreen display.
- Batch configuration and transfer.
- Remote and one-touch unlocking of linked door stations.
- Network camera monitoring and security alarm.
- Built-in mic & speaker
Additional information
| Operation System |
Linux |
|---|---|
| Screen Resolution |
1024×600 |
| Power Consumption |
＜10W |
| Screen |
7-inch ultra-thin TFT LCD screen |
| Audio Quality |
Noise suppression ,echo cancellation and AGC |
| Audio |
Built-in Microphone ,Built-in Speaker |
| Linked Indoor Station Capacity |
19 extensions |
| Audio Compression Bitrate |
128Kbps |
| Audio Compression Standard |
MP3 G711 |
| Power Supply |
DC12V±25% ,IEEE802.3af ,Standard PoE |
| Weight |
377g |
| Network |
100Mbps network port ,supports IEEE802.3af PoE power supply |
| Interface |
Power*1 ,network*1 ,Wi-Fi*1 ,RS485*1 ,IO output*2 ,IO input*8 ,TF card slot*1 |
| Dimensions (L x W x H) |
193.2mm×143.4mm×24.3mm |
| Protocol |
UNV private protocol |
| Network protocol |
TCP/IP ,IPv4 ,HTTP ,RTP ,RTSP ,NTP |
| Capacity |
200 ScreenShots 200 Zone Alarms A total of 20 connected devices ,including IPCs ,entrance stations ,NVRs (up to 2) ,and Doorbells |
