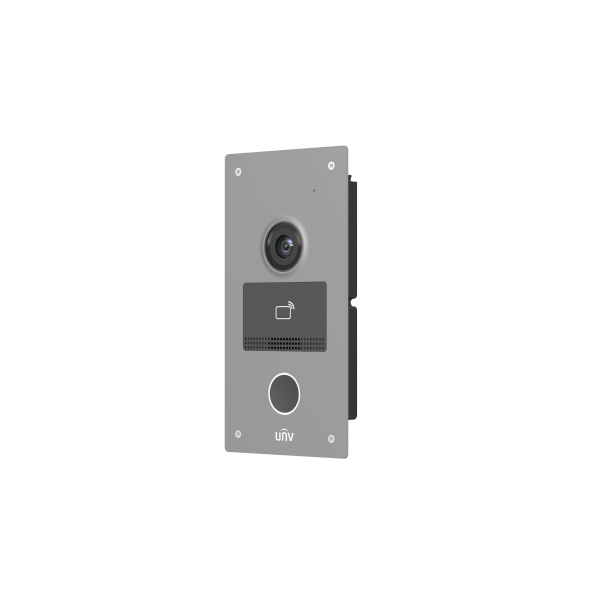

OEU-201S-HMK-Z Single-Button Villa Video Door Station with IC Card Access Control
Click to enlarge
UNV

OEU-201S-HMK-Z Single-Button Villa Video Door Station with IC Card Access Control

Single-Button Villa Video Door Station with IC Card Access Control

Add to wishlist
SKU: OEU-201S-HMK-Z Category:
Description
  • Front metal casing.
  • Supports batch configuration.
  • Supports call and intercom with the connected indoor stations and UNV Link.
  • Supports video surveillance, security protection alarm, and tamper alarm.
  • Built-in IC card reader.
  • Built-in mic & speaker
Additional information
Operation System

Linux
Supplement Light

IR light (adaptive)
Power Consumption

＜10W
Volume Adjustment

Support
Audio Quality

Noise reduction

,

echo cancellation

,

auto gain control
Audio

Built-in Microphone

,

Built-in Speaker
Card Capacity

10000
Audio Compression Bitrate

128Kbps
Protection

IP65

,

IK08
Power Supply

DC12V ±25%

,

PoE power supply
Weight

267g
Network

100Mbps network interface

,

supports IEEE802.3af PoE power supply
Interface

Power supply*1

,

network interface*1

,

RS485*1

,

door lock interface*2

,

IO input*4
Dimensions (L x W x H)

102mm x 31.6mm x 194mm
WDR

DWDR
Protocol

Uniview private protocol
Button

Door call button*1

,

tamper button*1
