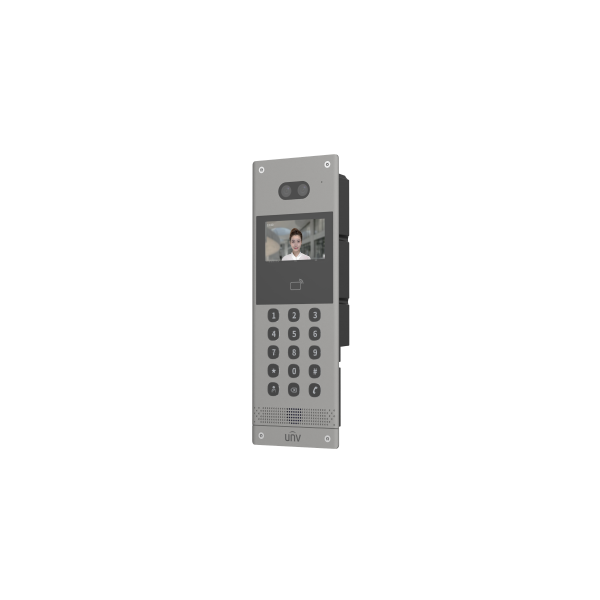

OEU-301E-HMKA Metal Apartment Door Station with IC Card Reader and 2MP Camera

Metal Apartment Door Station with IC Card Reader and 2MP Camera

SKU: OEU-301E-HMKA Category: Intercom

Description

Supports call and intercom with the connected indoor stations and UNV Link.
Standard recess mount bracket for recess mount.
Built-in heating module supports operation at a very low temperature.
Supports controlling two doors.
Supports braille keypads.
Front metal casing.
Built-in mic & speaker
Supports configuration in batches.
Supports security protection alarm and tamper alarm triggered by door magnet, infrared, etc.
Built-in IC card reader.
Supports connecting a door control security module via a private RS485 interface to prevent the door from being opened in the event of malicious damage to the device.
Adopts Uniview’s proprietary deep learning algorithm model, with the smart recognition rate exceeding 99%, false recognition rate below 1%, and maximum recognition speed of 0.2 seconds.
2MP low illumination, high definition, star light image sensor.
Supports auto illumination.

Additional information

Operation System	Linux
Illuminator	IR illuminator
Power Consumption	9W
Volume Adjustment	Support
Audio Quality	Noise reduction , echo cancellation , auto gain control
Audio	Built-in Microphone , Built-in Speaker
Card Capacity	15000
Audio Compression Bitrate	128Kbps
Protection	IP65 , IK08
Power Supply	DC12V ±25% (VDD12V/GND)、IEEE802.3af PoE power supply
Weight	912g
Screen Size	3.97 inch
Interface	Power supply1 , network interface1 , RS4851 , Wiegand interface1 (supports input or output mode) , door lock interface2 , IO input4 , IO output2 , door opening button2 , door magnet2 , tamper button1
Dimensions (L x W x H)	125.0mm x 52.5mmx 358.0mm
WDR	Support
Protocol	Private protocol
Button	15 buttons (with LED backlight) , with braille in rows 1-4 Keypad layout: Row 1: 1/2/3 Row 2: 4/5/6 Row 3: 7/8/9 Row 4: */0/# Row 5: Management center/cancel/call

Download

Datasheet
