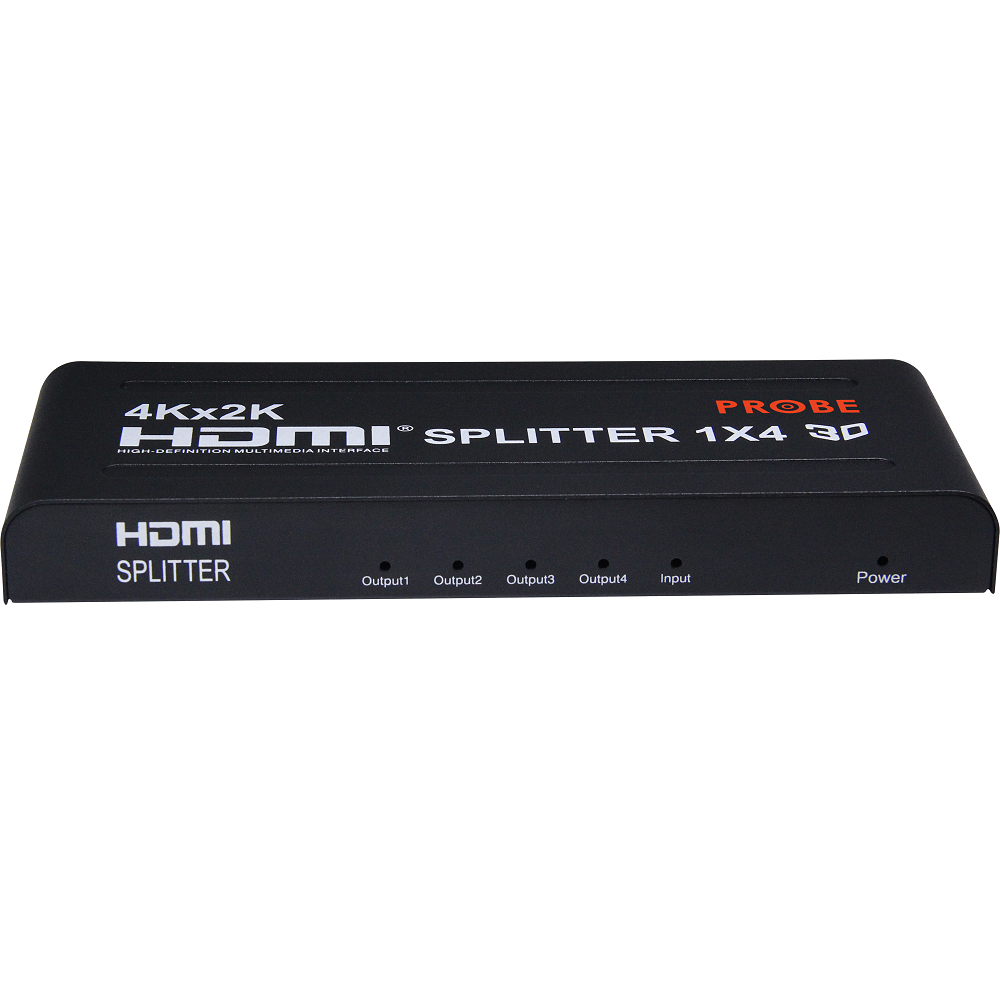

P-HDMI 1x4-4K HDMI 4K 1x4 Splitter Support HDMI 1.4b and 3D video format
Click to enlarge
WINIC

P-HDMI 1×4-4K HDMI 4K 1×4 Splitter Support HDMI 1.4b and 3D video format

This hdmi 4K 1×4 splitter use a single HDMI source,accessing to multiple HDMI sinks .

Add to wishlist
SKU: P-HDMI 1x4-4K Categories: ,
Description
  • Support HDMI 1.4b version
  • Support 3D video format
  • Support high resolution up to 3840×2160/30Hz
  • Support highest rate of 3.4 G and TMDS clock can be up to 340 MHz
  • Support 8/10/12 bit deep color
  • Support AWG26 HDMI standard cable: input up to 20 meters,output up to 20 meters. (when the resolution is 4K, input up to 15 meters, output up to 15 meters.)
  • Support one single HDMI source，accessing to multiple HDMI sinks, the source can be DVD player, A/V receiver, set top box and etc.
Additional information
HDMI version

HDMI 1.4b
HDMI resolution

up to 3840*2160/30Hz
Support video format

8/10/12 bit deep color
Support audio format

DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD
Max bandwidth

340MHz
Max baud rate

3.4Gbps
Input cable distance

(1080p resolution) ≤20m

,

(4K resolution)≤15m AWG26 HDMI standard cable
Output cable distance

(1080p resolution) ≤20m

,

(4K resolution)≤15m AWG26 HDMI standard cable
Max working current

500mA
Power adapter format

input AC (50HZ

,

60HZ) 100V-240V; output: DC5V/1.5A
Dimension (L x W x H)

178x67x23 (mm)
Weight

230g
Download

Datasheet

No associated firmware documentation found.
