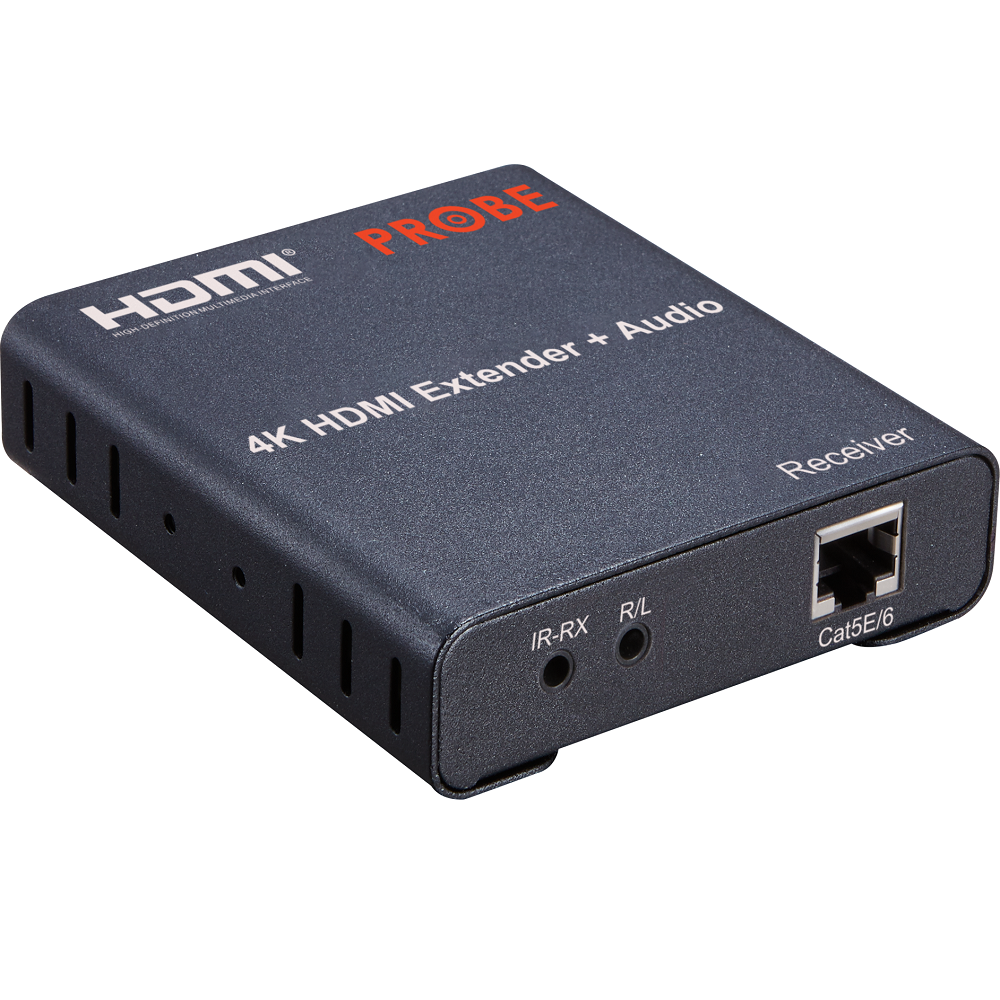

P-HDMI ED100M-4KL HDMI 1.4 Extender over Cat5e/Cat6 100m Transmission Local Loop-Out
Click to enlarge
WINIC

P-HDMI ED100M-4KL HDMI 1.4 Extender over Cat5e/Cat6 100m Transmission Local Loop-Out

The Extender uses single cat5e or cat6(recommended) cables instead of HDMI cable to transmit high definition signal(up to 100 meters)

Add to wishlist
SKU: P-HDMI ED100M-4KL Categories: ,
Description
  • Support HDMI 1.4;
  • Support local loop-out ;
  • Support 100m long distance transmission
  • Low power consumption, low temperature and high safety;
  • Support 3D video format;
  • Both the TX and RX support 3.5MM left and right audio output;
  • Support IR control;
Additional information
Length of CAT5e/CAT6 cable between Rx and TX

Up to 100 meters
HDMI Input

4k/1080p/720p/576p/576i/480p/480i
HDMI Output

4k/1080p/1080i/720p/576p/576i/480p/480i
Max bandwidth

340MHz
Max baud rate

3×3.4Gbps
Input video signal

0.5~1.5Volts p-p
Input HDMI cable distance

≤15m AWG26 HDMI standard cable
Output HDMI cable distance

≤15m AWG26 HDMI standard cable
TX Max working current

350mA
RX Max working current

200mA
Power adapter format

Input:AC (50HZ

,

60HZ) 100V-240V; Output: DC5V/1A
Dimension (L x W x H)

81×87.5×23.5 (mm)
TX Weight

210g
RX Weight

200g
