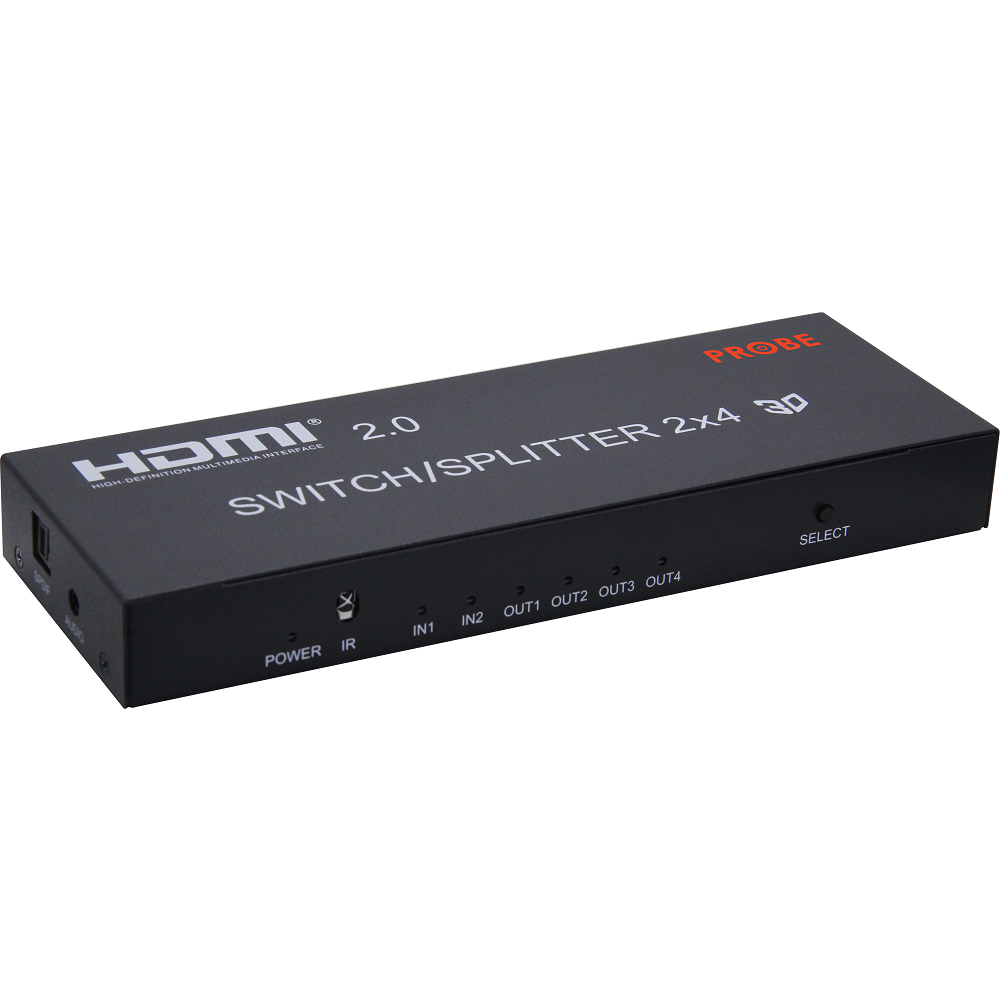

P-HDMI SW2x4 2 x 4 HDMI 2.0 switch splitter with long distance transmission
The 2 x 4 HDMI 2.0 switch splitter can connect 2 hd signal sources to 4 hd display terminals. It can easily split the 2 hd signals generated by the 2 hd signal sources to 4 hd displayers or projectors
Description
- Downscaling (can output 4K and 1080p at the same time)；
- High Definition,it can support 4K/60Hz RGB/YUV 4:4:4；
- Transmission long distance,4K/60Hz up to 10 meters,1080p up to 20 meters.
Additional information
| HDMI version |
HDMI 2.0a |
|---|---|
| HDMI resolution |
up to 3840*2160/60Hz |
| Support video color format |
8/10/12 bit deep color |
| Support audio format |
DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD |
| Max bandwidth |
600MHz |
| Max baud rate |
6Gbps |
| Input cable distance |
(1080p resolution) ≤20m ,(4K resolution)≤10m AWG26 HDMI standard cable |
| Output cable distance |
(1080p resolution) ≤20m ,(4K resolution)≤10mAWG26 HDMI standard cable |
| Max working current |
500mA |
| Power adapter format |
Input: AC (50HZ ,60HZ) 100V-240V; Output: DC5V/1A |
| Dimension (L x W x H) |
200x70x25 (mm) |
| Weight |
280g |
Download
